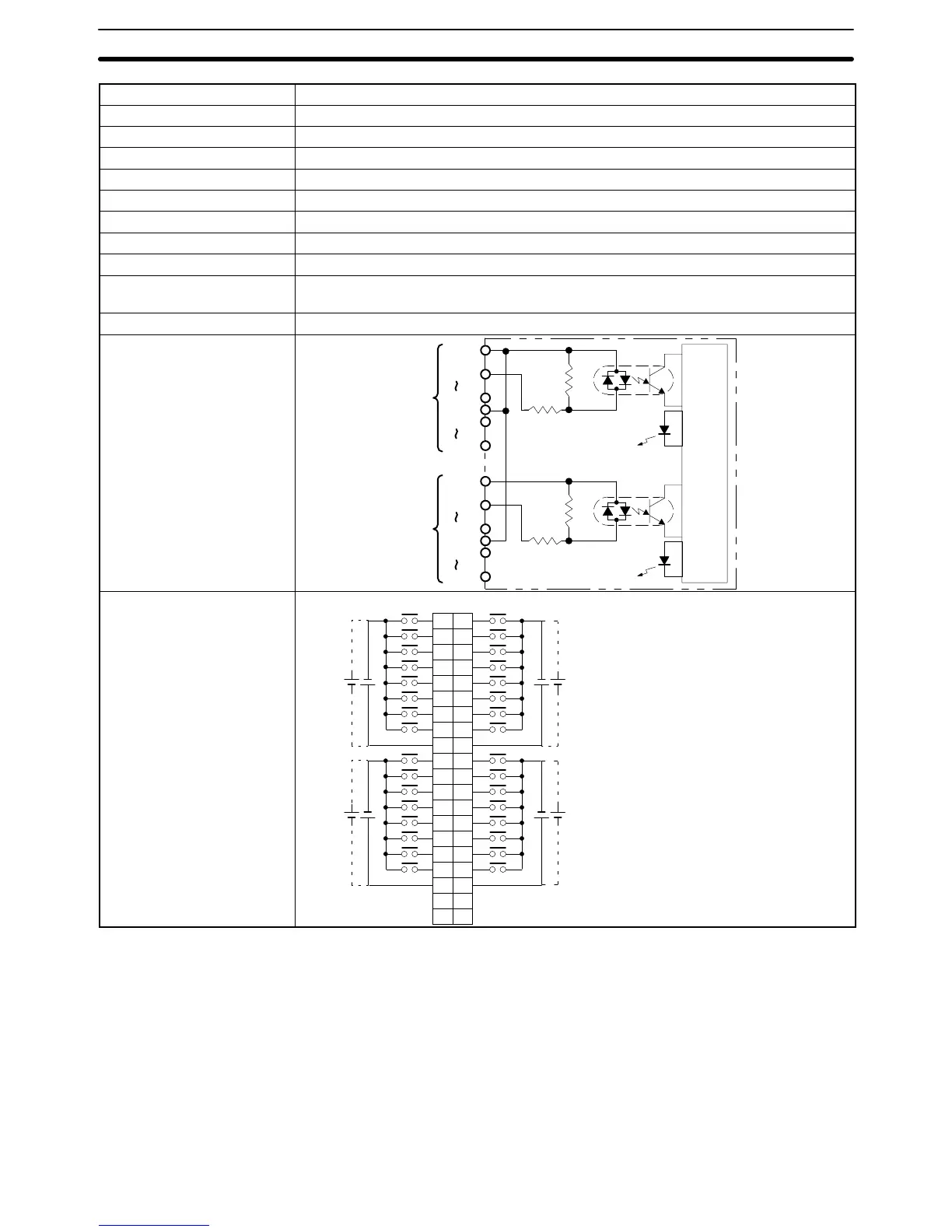

Sysmac CQM1 User Manual

54
Item CQM1-ID112
Input Voltage 12 VDC
+10%
/
–15%
Input Impedance 2.2 kΩ
Input Current 4 mA typical (at 12 VDC)
ON Voltage 8.0 VDC min.
OFF Voltage 3.0 VDC max.
ON Delay Default: 8 ms max. (can be set between 1 and 128 ms in PC Setup)
OFF Delay Default: 8 ms max. (can be set between 1 and 128 ms in PC Setup)
No. of Inputs 32 points (32 inputs/common, 1 circuit)
Internal current
consumption
5 VDC, 170 mA max.
Weight 160 g max.
Circuit Configuration
750 Ω
2.2 kΩ
COM
IN00
IN07
COM
IN08
IN15
A
Inter-
nal
Circuit
COM
IN00
IN07
COM
IN08
IN15
B
750 Ω
2.2 kΩ
Input
LED
Input
LED
Terminal Connections
The polarity of the input power supply
can be either plus or minus. The polar-
ity of all the commons, however, must
match.
The respective COMs are internally
connected, but they all must be wired.
4 4
5 5
6 6
7 7
8 8
9 9
11 11
12 12
13 13
14 14
15 15
16 16
17 17
18 18
3 3
2 2
19 19
20 20
1 1
0
1
2
3
4
5
6
7
9
10
11
12
13
14
15
COM
COM
0
1
2
3
4
5
6
7
10 10
8
NC
COM
COM
NC
NC
NC
9
10
11
12
13
14
15
8
AB
++
12 VDC12 VDC
+
12 VDC
+
12 VDC
Wd m Wd (m+1)
Unit Specifications
Section 2-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
