Sysmac CQM1 User Manual

23

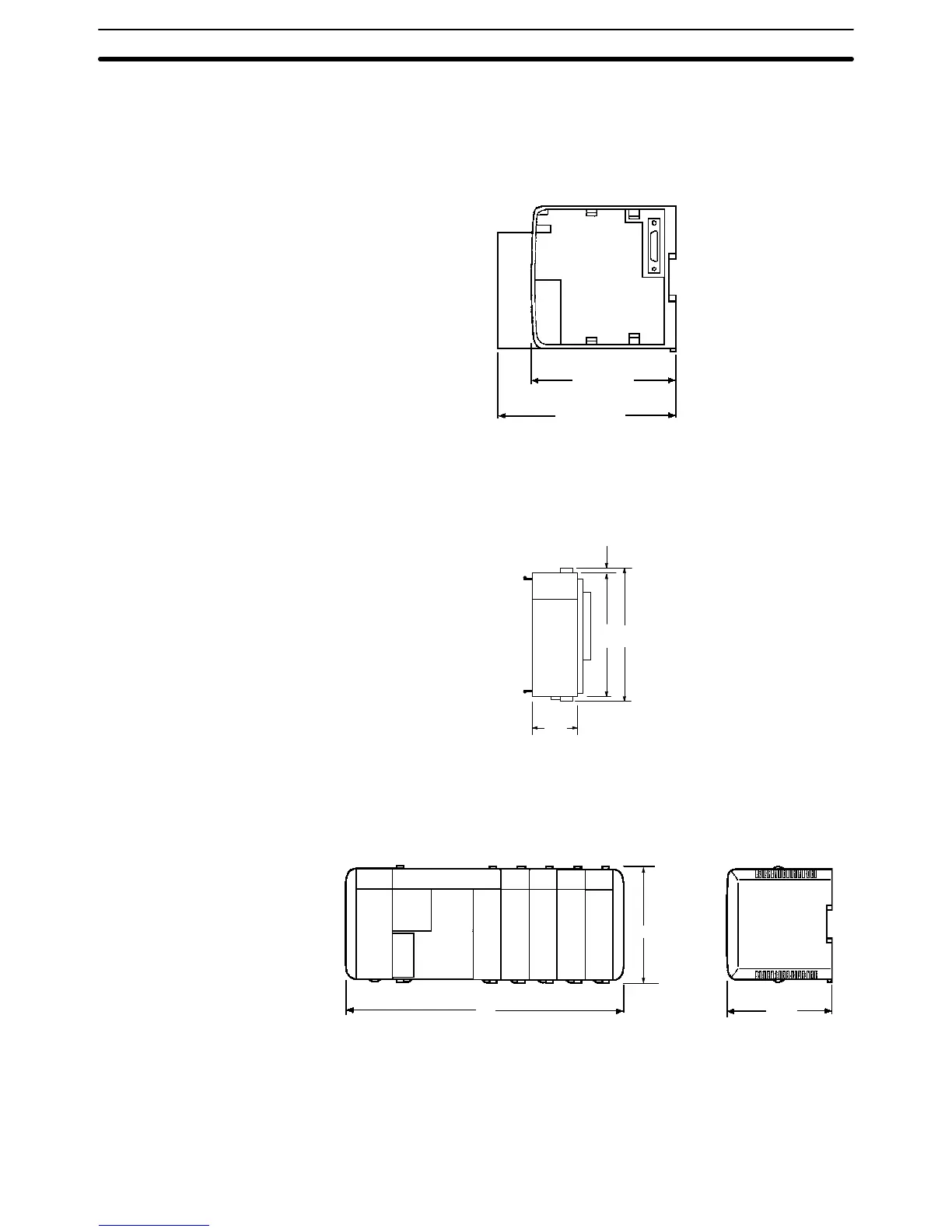

2-3-4 CQM1-OC224 Dimensions
The following diagram shows the dimensions of a CQM1-OC224 I/O Unit. All
dimensions are in millimeters.
Dimensions when Mounted
107 mm
131.7 mm
2-3-5 Standard Dimensions
The following diagram shows the dimensions of a standard I/O Unit. All dimen-
sions are in millimeters.
110 115.7
2
32
Note Refer to the table on page 20 for the weights of I/O Units.
Assembled Dimensions The following diagram shows the dimensions of a CQM1 PC consisting of a CPU
Unit, 4 I/O Units, and a Power Supply Unit. The width varies with the Power Sup-
ply Unit, as indicated.
CQM1-PA203: W = 315
CQM1-PA206: W = 347
CQM1-PA216: W = 347
CQM1-PD026: W = 347
W
107
115.7
Note The I/O capacity of CQM1-CPU4j-EV1 CPU Unit has been increased to
256 points, but only 11 Units can be connected in the PC.
I/O Units
Section 2-3

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
