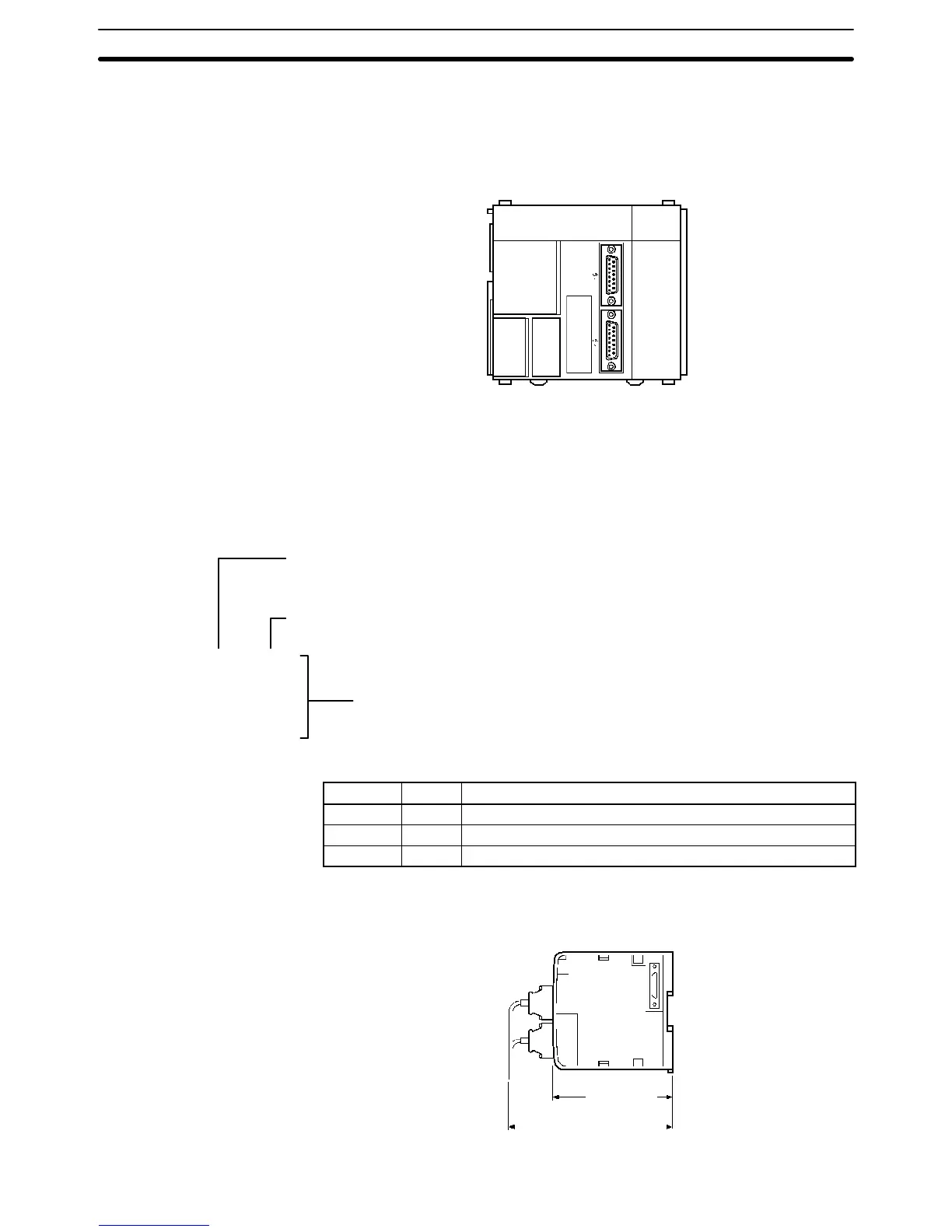

2-1-11 ABS Interface Function
The CQM1-CPU44-EV1 has two dedicated ports (CN1 and CN2) for receiving
grey codes from an absolute-type rotary encoder.
These two ports can be used to carry out absolute-type high-speed counter
interrupts. Grey codes input to the ports can be received at a computation speed
of up to 4 kHz, and processing can be executed according to that value.
LED Indicators
Ready (green)
Lit when the ABS interface function is ready. Turns off
in Program Mode or when an error occurs.
Error (red)
Lit when there is an error in the PC Setup for the ABS interface function.
RDY ERR
IN1
INC1
DEC1
Encoder input (orange)
Refer to the table below.
IN2
INC2
DEC2
Port 1 Port 2 Function
IN1 IN2 Lit when input bit 0 of each port is ON.
INC1 INC2 Lit when value input for each port is incremented.
DEC1 DEC2 Lit when value input for each port is decremented.
Dimensions With Connectors Mounted
107 mm
Approx. 180 mm
Encoder Input Indicators
CPU Unit Section 2-1

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
