Sysmac CQM1 User Manual

61

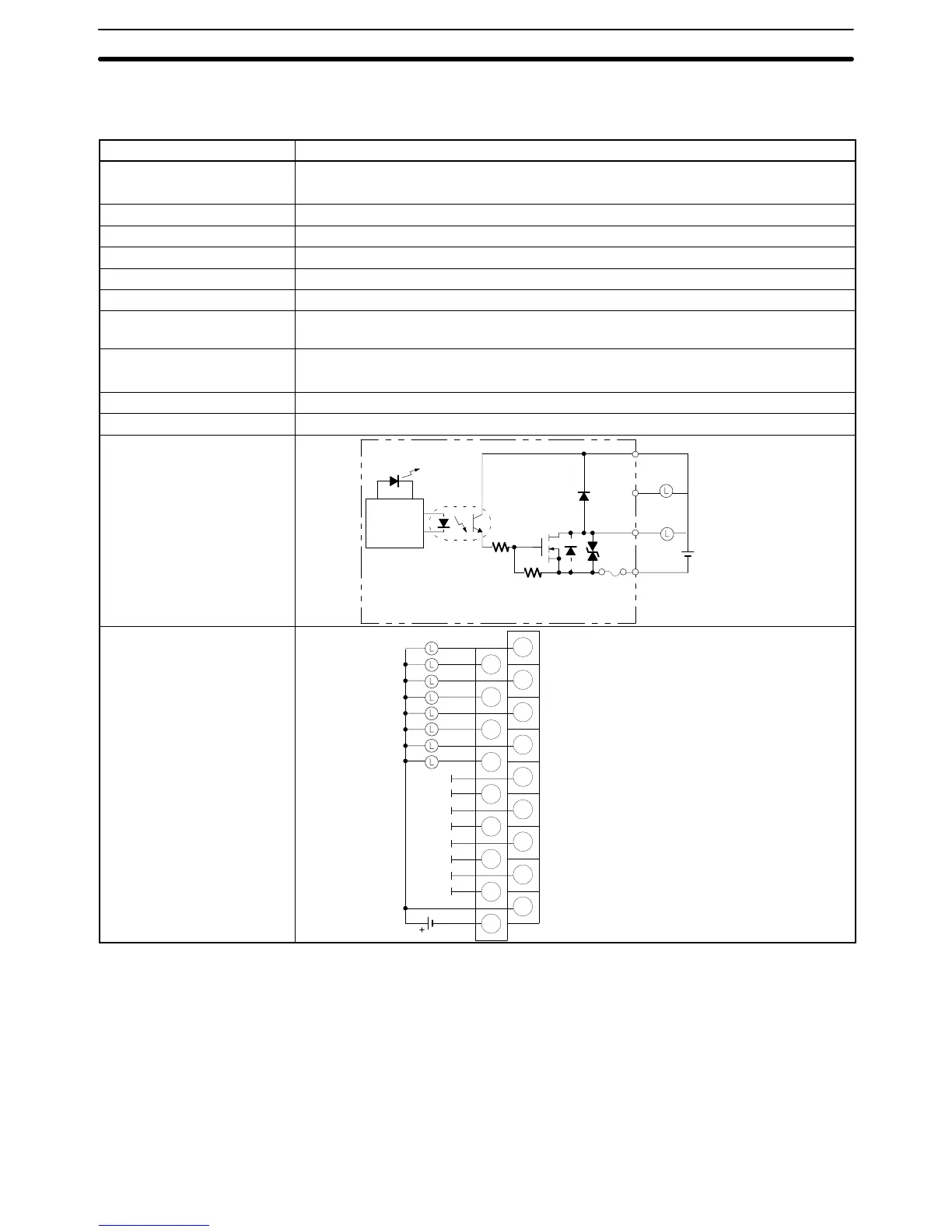

2-6-11 Transistor Output Units
8-point Transistor Output Unit
Item CQM1-OD211
Max. Switching Capacity 2 A at 24 VDC
+10%
/
–15%
5 A/Unit
Leakage Current 0.1 mA max.
Residual Voltage 0.7 V max.
ON Delay 0.1 ms max.
OFF Delay 0.3 ms max.
No. of Outputs 8 points (8 points/common, 1 circuit)
Internal Current
Consumption
90 mA max. at 5 VDC max.
Fuse 7 A (one per common), one only
Fuse is not user replaceable.
Service Power Supply 15 mA min. at 24 VDC
+10%
/
–15%
(1.9 mA  number of ON points)
Weight 200 grams max.
Circuit Configuration
to
+V
Fuse
7 A
OUT0
Output
LED
Internal
Circuits
COM
OUT07
24 VDC
Terminal Connections
B0
0
1
A0
B1
2
3
A1
B2
4
5
A2
B3
6
7
B4
A4
B5
A5
B6
A6
B7
A7
B8
A8
A3
COM
–
NC
NC
NC
NC
NC
NC
NC
NC
+DC
Note Do not reverse the connections
for +DC and the common. If
+DC and the common are con-
nected incorrectly, internal cir-
cuits may be damaged.
Unit Specifications
Section 2-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
