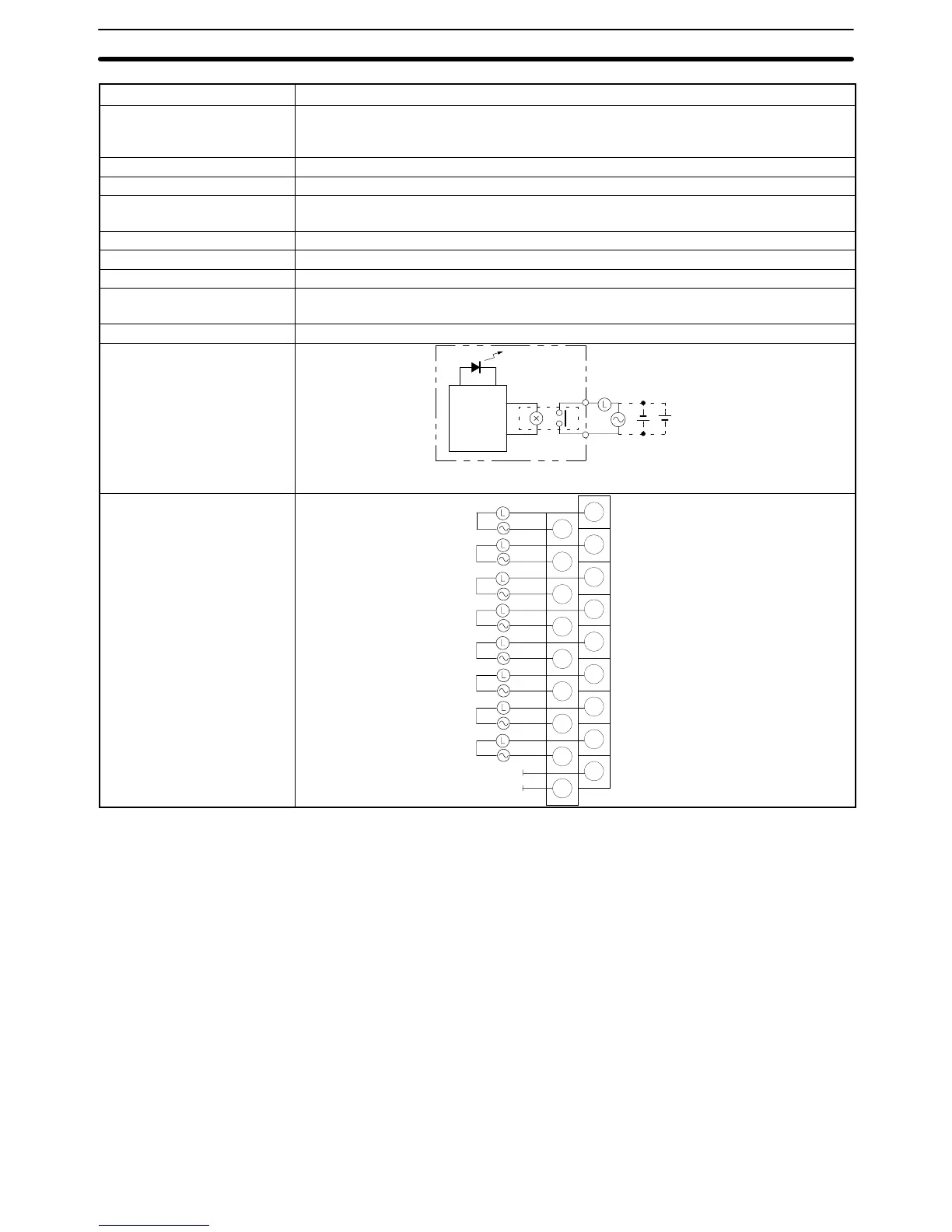

Sysmac CQM1 User Manual

60
Item CQM1-OC224
Max. Switching Capacity 2 A, 250 VAC (cosφ= 1)
2 A, 250 VAC (cosφ= 0.4)
2 A, 24 VDC (16 A/Unit)
Min. Switching Capacity 10 mA, 5 VDC
Relay G6R-1A or G6RN-1A
Service Life of Relay Electrical: 300,000 operations
Mechanical: 10,000,000 operations
ON Delay 15 ms max.
OFF Delay 5 ms max.
No. of Outputs 8 points (independent commons)
Internal Current
Consumption
440 mA max. at 5 VDC
Weight 270 grams max.
Circuit Configuration
OUT
Output
LED
Internal
Circuits
OUTc
Maximum
250 VAC: 2 A
24 VDC: 2 A
Terminal Connections
B0
A0
B1
A1
B2
A2
B3
B4
A4
B5
A5
B6
A6
B7
A7
B8
A8
A3
NC
NC
0
c0
1
3
4
5
6
7
c1
2
c2
c3
c4
c5
c6
c7
Unit Specifications
Section 2-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
