Sysmac CQM1 User Manual

125
Appendix A
Standard Models

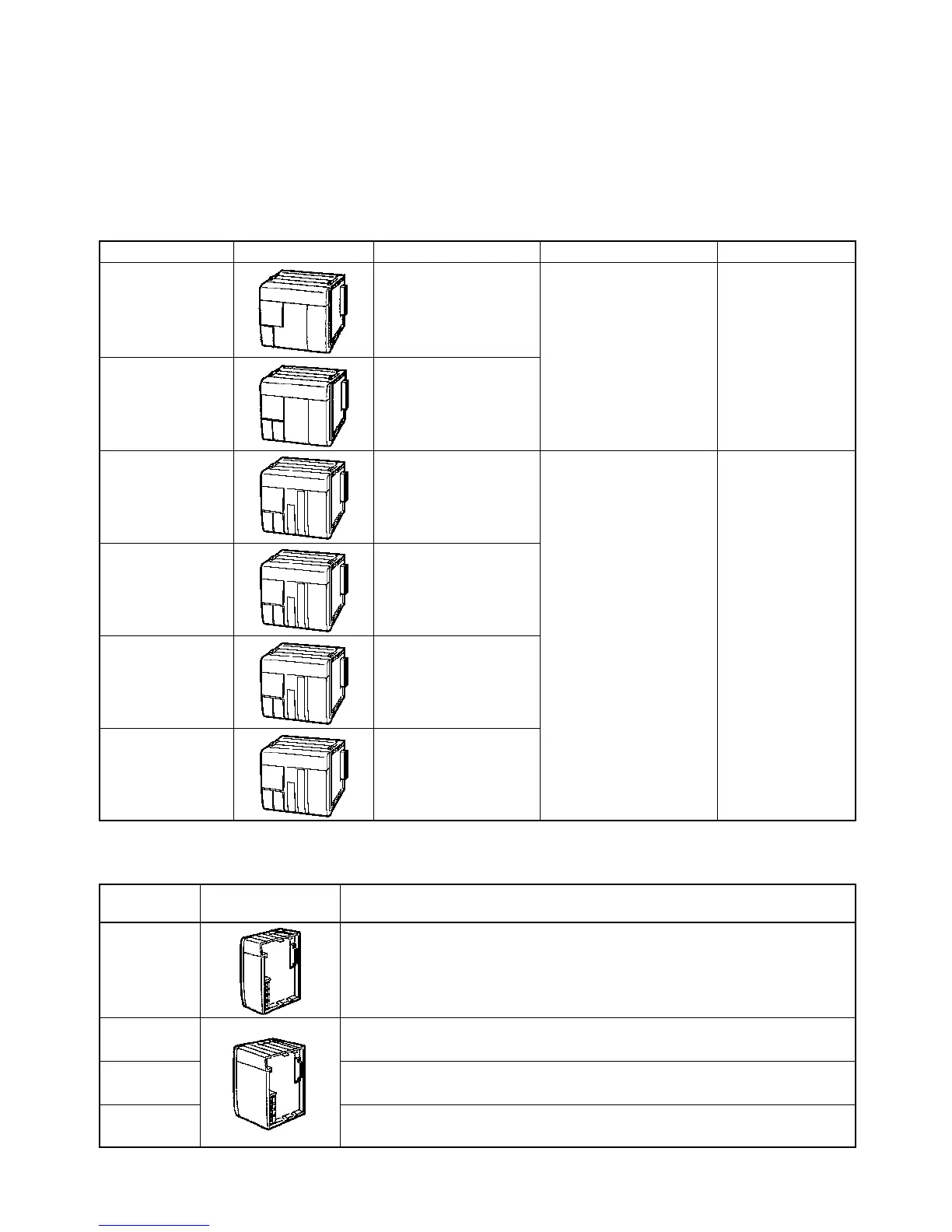

CPU Units
Model number Appearance Communications Memory I/O capacity
CQM1-CPU11-E Peripheral only
3.2K-word Program
Memory, 1K-word DM
128 points
(8 words)
Up to 7 Units can
be connected.
CQM1-CPU21-E Peripheral and RS-232C
CQM1-CPU41-EV1 Peripheral and RS-232C
7.2K-word Program
Memory, 6K-word DM
256 points
(16 words)
Up to 11 Units can
be connected.
CQM1-CPU42-EV1 Peripheral, RS-232C,
and analog settings
CQM1-CPU43-EV1 Peripheral, RS-232C,
and pulse I/O
CQM1-CPU44-EV1 Peripheral, RS-232C,
and ABS interface
Power Supply Units
Model
number
Appearance Specifications
CQM1-PA203 Power supply: 100 to 240 VAC
Power supplied to I/O Units: 3.6 A at 5 VDC (18 W total)
CQM1-PA206 Power supply: 100 to 240 VAC; 24 VDC with output terminals, 0.5 A
Power supplied to I/O Units: 6 A at 5 VDC, 0.5 A at 24 VDC (30 W total)
CQM1-PA216 Power supply: 100 or 230 VAC (selectable); 24 VDC with output terminals, 0.5 A
Power supplied to I/O Units: 6 A at 5 VDC, 0.5 A at 24 VDC (30 W total)
CQM1-PD026 Power supply: 24 VDC
Power supplied to I/O Units: 6 A at 5 VDC (30 W total)

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
