123

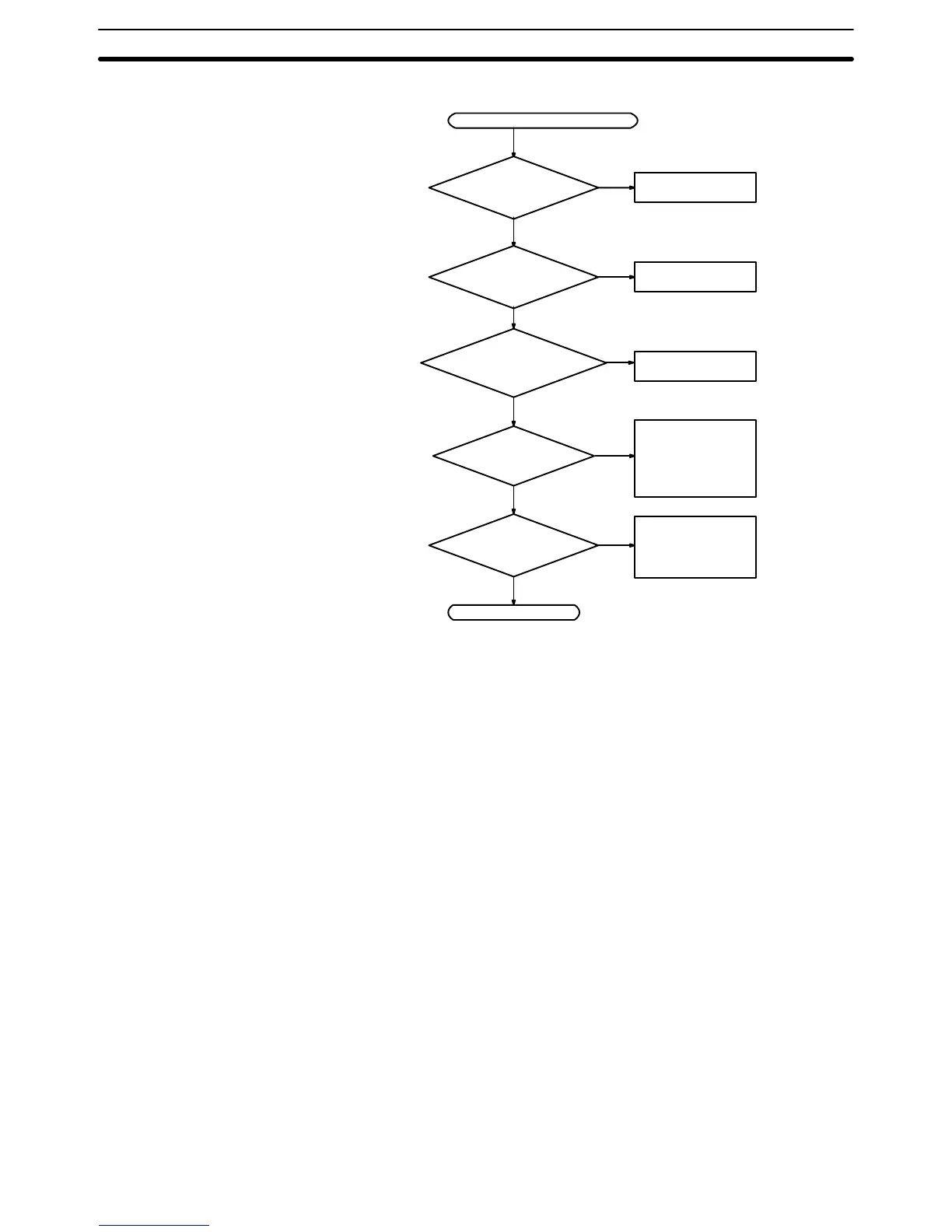

Environmental Conditions Check
Consider using a
fan or cooler.
Is the ambient
temperature below
55°C?
Is the ambient
temperature above
0°C?
Is noise being
controlled?
Is the installation envi-
ronment okay?
Consider using a
heater.
Consider using an
air conditioner.
Install surge pro-
tectors or other
noise-reducing
equipment at
noise sources.
Consider
constructing an
instrument panel
or cabinet.
End.
Yes
No
Yes
No
No
No
No
Yes
Yes
Yes
Is the ambient humidity
between 10% and
90%?
Environmental conditions check
Troubleshooting Flowcharts
Section 4-6
