Sysmac CQM1 User Manual

7
2-1-1 CPU Unit Components

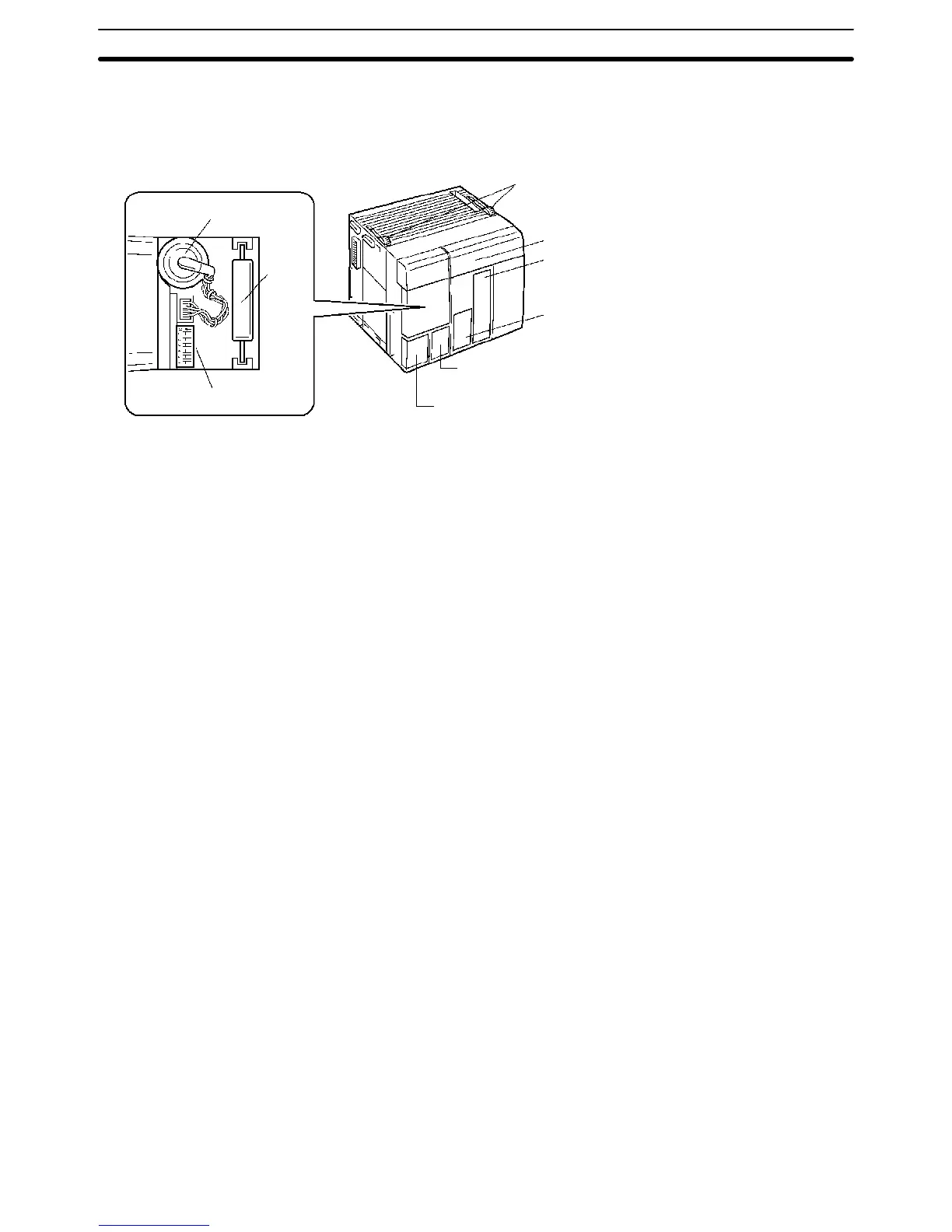

The following diagram shows the basic components of the CPU Unit that are
used in general operation of the PC.
Lock the CPU Unit to
the adjacent Unit.
Indicators
RS-232C Port (except CQM1-CPU11-E)
Used for communications with external devices or other PCs.
Peripheral Port
Used to connect to Peripheral Units such as a Program-
ming Console, Data Access Console, or a computer
running LSS/SSS.
DIP switch
Battery
Memory
cassette
(optional)
Pulse I/O connectors (CQM1-CPU43-EV1 only);
ABS interface connectors (CQM1-CPU44-EV1 only)
Analog setting controls
(CQM1-CPU42-EV1 only)
CPU Unit Section 2-1

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
