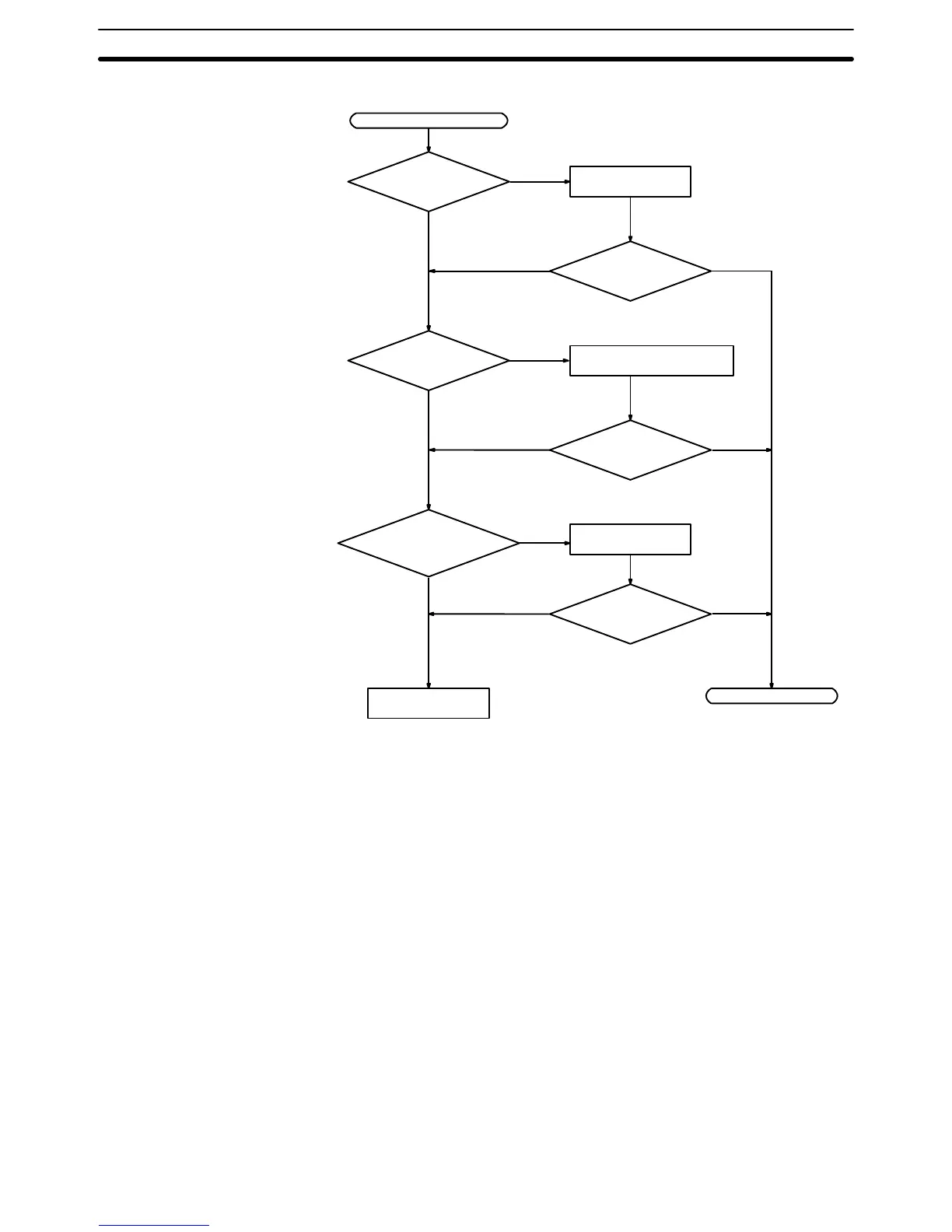

Power Supply Check
Power indicator not lit.
Replace the Power
Supply Unit.
Is power being
supplied?
Is voltage adequate?
(See note.)
Are there any loose
terminal screws or bro-
ken wires?
Connect power
supply.
Is Power indicator lit?
Set supply voltage
within acceptable limits.
Is Power indicator lit?
Tighten screws or
replace wires.
End
Yes
No
No
Yes
Yes
No
No
No
Is Power indicator lit?
Yes
No
Yes
Yes
Note The allowable voltage ranges for the CQM1 are as follows.
CQM1-PA203/PA206: 85 to 264 VAC
CQM1-PD026: 20 to 28 VDC
Troubleshooting Flowcharts
Section 4-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
