Sysmac CQM1 - Page 76

63

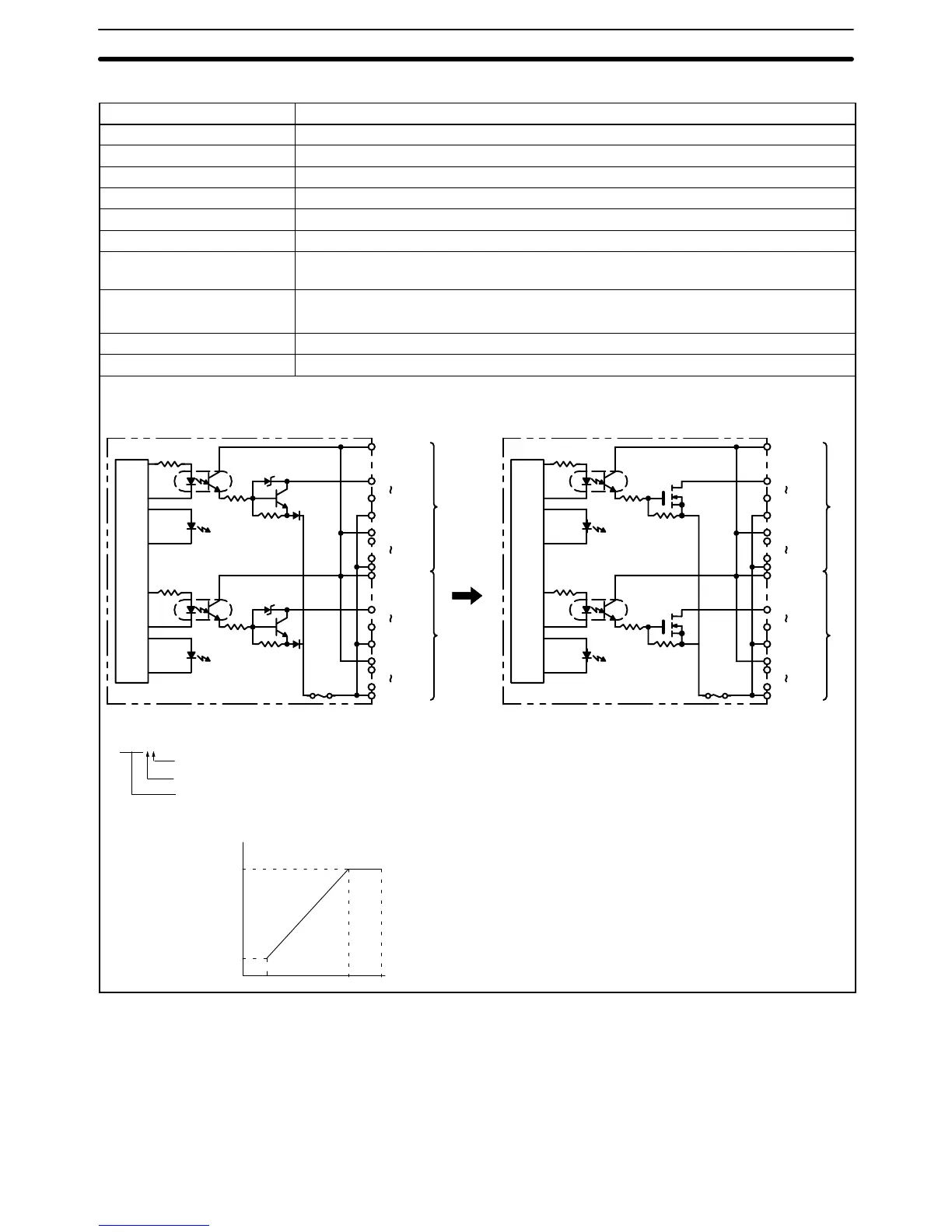

32-point Transistor Output Unit
Item CQM1-OD213
Max. Switching Capacity 16 mA at 4.5 VDC to 100 mA at 26.4 V (see diagram below)
Leakage Current 0.1 mA max.
Residual Voltage 0.8 V max.
ON Delay 0.1 ms max.
OFF Delay 0.4 ms max.
No. of Outputs 32 points (32 points/common, 1 circuit)
Internal Current
Consumption
240 mA max. at 5 VDC
Fuse 3.5 A (one per common), one only
Fuse is not user replaceable.
Service Power Supply 110 mA min. at 5 to 24 VDC ±10% (3.4 mA  number of ON points)
Weight 180 grams max.
Circuit Configuration
Units manufactured on or before December 28th, 1999
(manufacturing numbers 28Z9 or earlier*)
Units manufactured on or after January 5th, 2000
(manufacturing numbers 0510 or later*)
Fuse
3.5 A
Output
LED
OUT00
OUT07
COM
A
OUT08
OUT15
COM
Inter-
nal
Circuit
4.5 to
26.4 VDC
4.5 to
26.4 VDC
OUT00
OUT07
COM
B
OUT08
OUT15
COM
4.5 to
26.4 VDC
4.5 to
26.4 VDC
Output
LED
Fuse
3.5 A
Output
LED
OUT00
OUT07
COM
A
OUT08
OUT15
COM
Inter-
nal
Circuit
4.5 to
26.4 VDC
4.5 to
26.4 VDC
OUT00
OUT07
COM
B
OUT08
OUT15
COM
4.5 to
26.4 VDC
4.5 to
26.4 VDC
Output
LED
4.5 20.4 26.4
100
16
Max. Switch Capacity (per Point)
+V (V)
Ic max. (mA)
50
10
*Manufacturing Numbers
jj
Z9
Year. Last digit of calendar year, e.g., 1999→9, 2000→0
Month: 1 to 9 (January to September), X (October), Y (nOVEMBER), Z(December)
Day: 01 to 31
Unit Specifications
Section 2-6
