5.5 DAMPERS

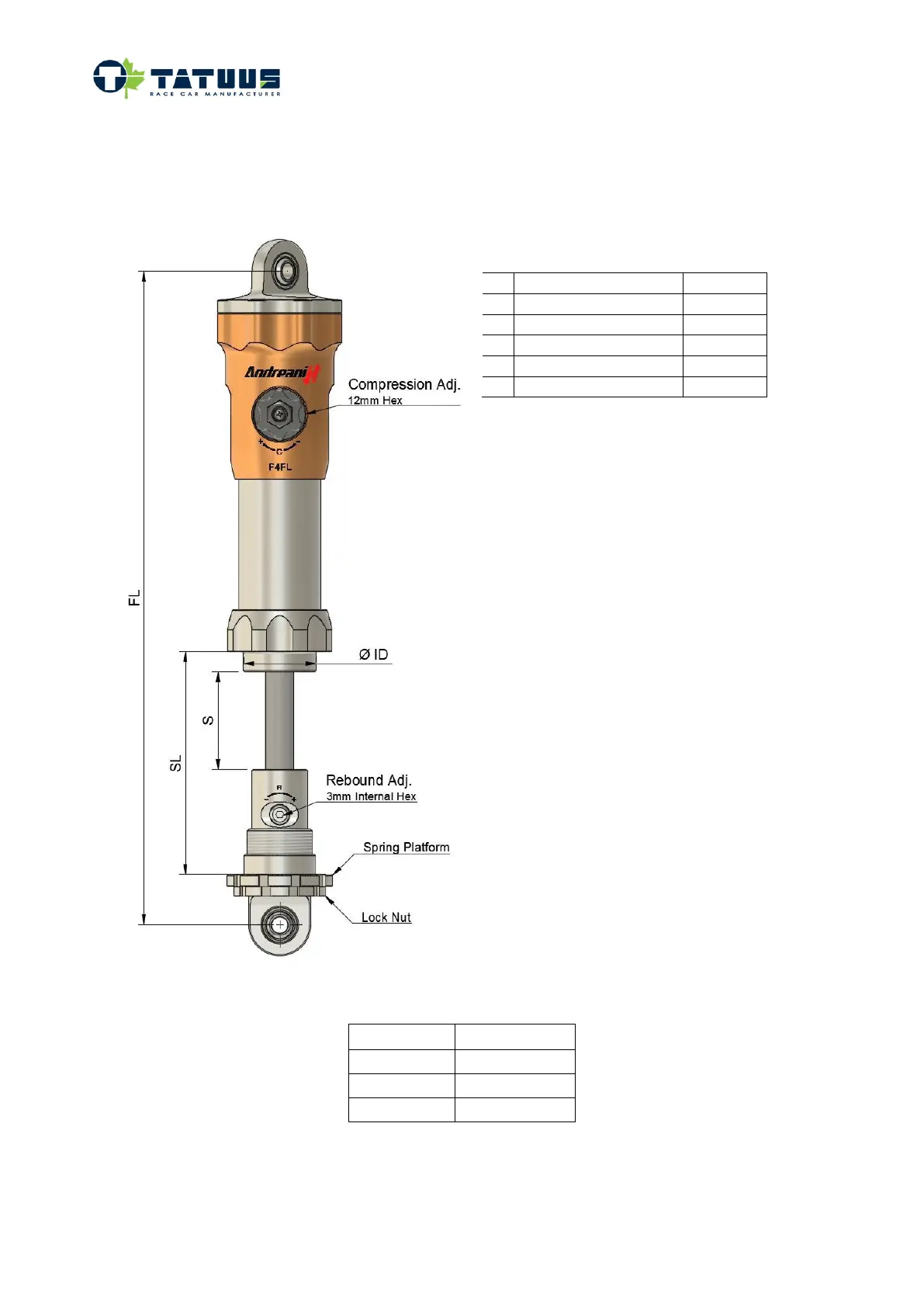

ANDREANI Formula Light damper is based on mono tube design for competition purposes, the 2-Way
adjustment mechanisms allow maximum control over the damping forces generated.
Technical specification
FL
Full length
320 mm
S
Stroke
48 mm
SL
Spring max length
109 mm
ID
Spring inner diam
36 mm
C
Compression pos.
12 Click
R
Rebound pos.
16 Click
5.5.1 Adjust damping
Turn the adjuster clockwise to fully closed position
(position “0”). Turn counterclockwise to open and
count the clicks until reaching the recommended
number of clicks.
For example, rebound adjustment:
HARD Click position 0
SOFT Click position 16
Caution:
Do not force, delicate sealing surfaces may be
damaged.
5.5.2 Spring preload
Use a C-Spanner for unlock the lock nut. Turn the
spring platform clockwise to increase the spring
preload. Turn counterclockwise to decrease it.
Lock the setting with the lock nut. Tightening
torque 15-25Nm.
Caution:
Do not adjust the spring platform so that the
spring has a clearance. It shall always be mounted
with preload.
Damper identification
F4FL
Front left
F4FR
Front right
F4RL
Rear left
F4RR
Rear right
