3.6.3.2 Page #2: Setting page

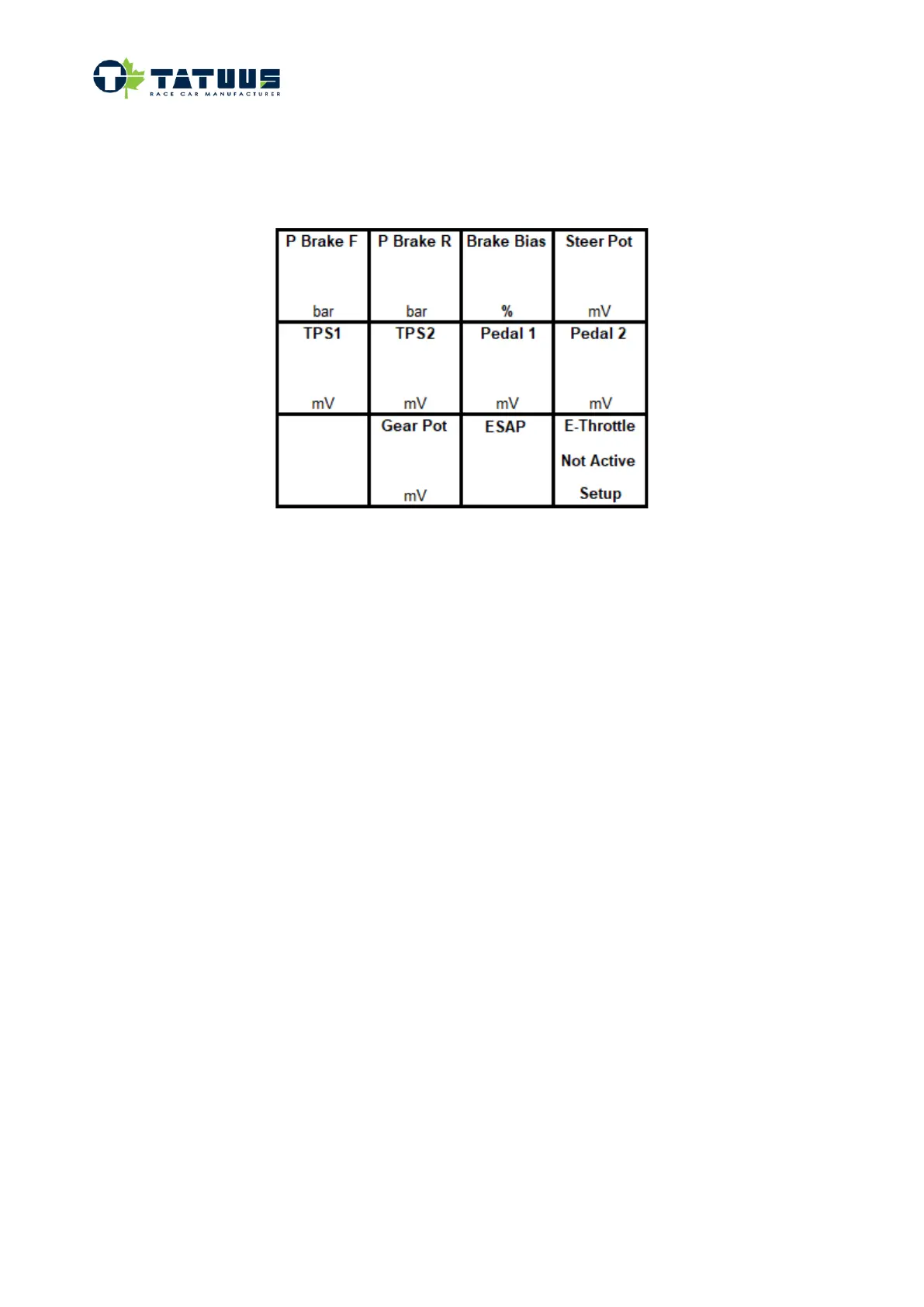

This page summarizes the parameters useful for the sensor setting.
• P Brake F: Front brake pressure [bar]
• P Brake R: Rear brake pressure [bar]
• Brake Bias: percentage of front brake pressure over total brake pressure (Front+Rear) [%]
• Steer Pot: absolute position of steering potentiometer [mV], it should be set @ 2500mV when the
steering wheel is straight
• TPS1 / TPS2: Throttle valve absolute position [mV] (if available from ECU)
• Pedal 1 / Pedal 2: Throttle pedal absolute position [mV], used to adjust pedal position before throttle
calibration process. Please refer to the engine manual for thresholds for resting position and full
throttle.
• Pedal: percentage of Throttle pedal
• Gear Pot: gear barrel absolute position [mV], the value must be
- Neutral: 1100mV +/- 10mV
- 1
st
gear: 1630mV +/- 10mV
• ESAP: absolute actuator position [mV], the value should be between 0 and +/-30mV when actuator
is not operational.
