10 OIL SYSTEM
The oil tank is located within the gearbox bellhousing.
Some oil may overflow into the catch tank, so regularly drain and clean it to optimize oil level.
It is recommended to follow the procedure below in order to have a consistent level measurement:
• Turn on the engine;
• Warm up temperatures (oil at 80°C);
• Run the engine for 30 second at 3000rpm;
• Turn off the engine by the steering wheel start/kill button or with the main switch in ON position

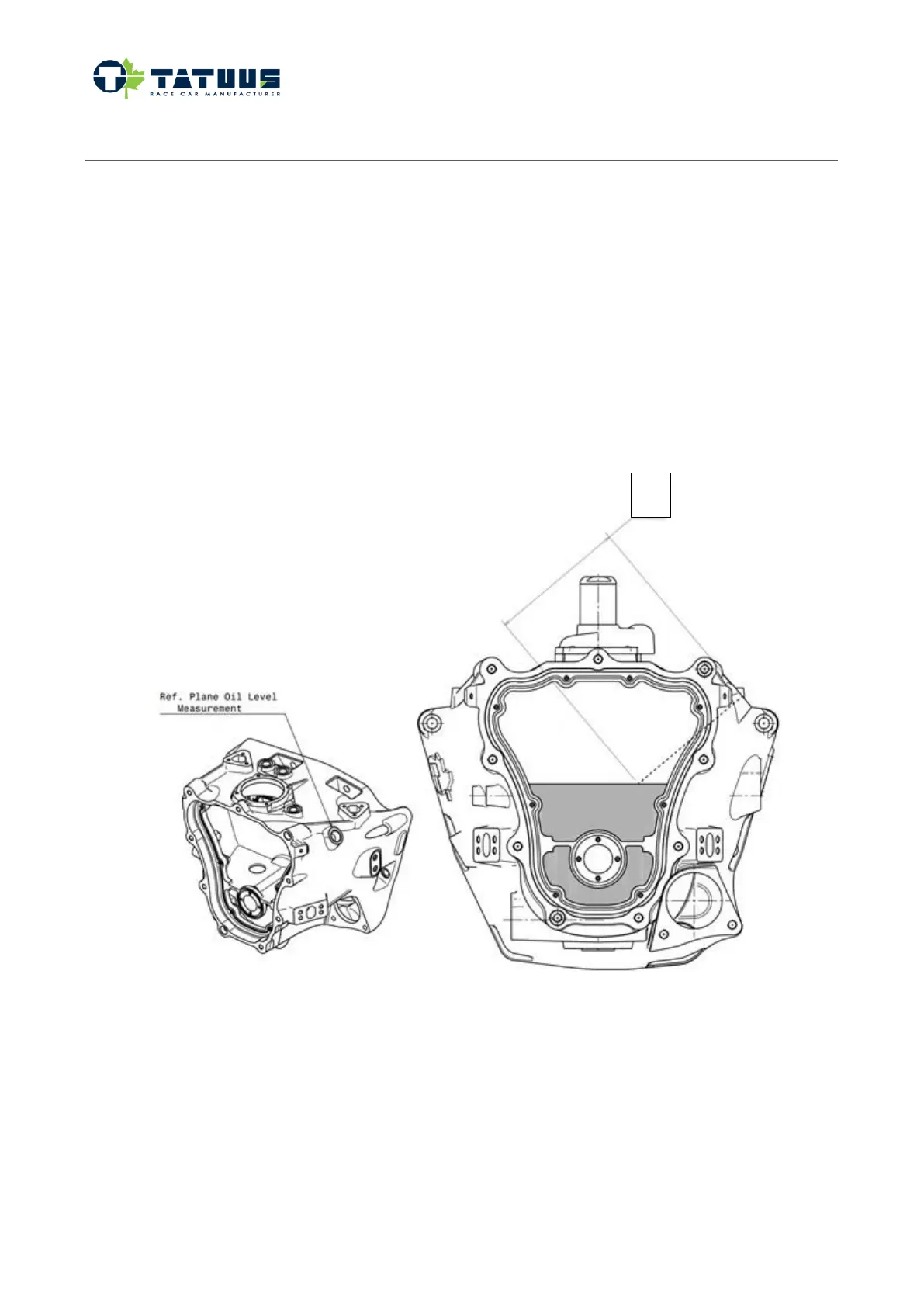

• Measure the oil level. With reference to the picture below: from the filler plug plate the oil level [A]
should be 150mm.
Further information about oil level procedure is available in the engine technical manual.
Warning: Do not turn off the engine putting the main switch in OFF position, the impulsive power off may
cause serious damages to the electronics due to hard electrical spikes.
