• Remove the anti-splay plate, then remove each component, noting the order of assembly.
13.11.2 Gears refitting
• Clean and check the condition of parts.
• Lightly lubricate the forks and the needle roller bearing cages using gearbox oil.
• Replace each gears in the reverse order from removal. For new gears, put the reference of the
gears of the primary shaft towards the operator.
• Then shift into two gears.

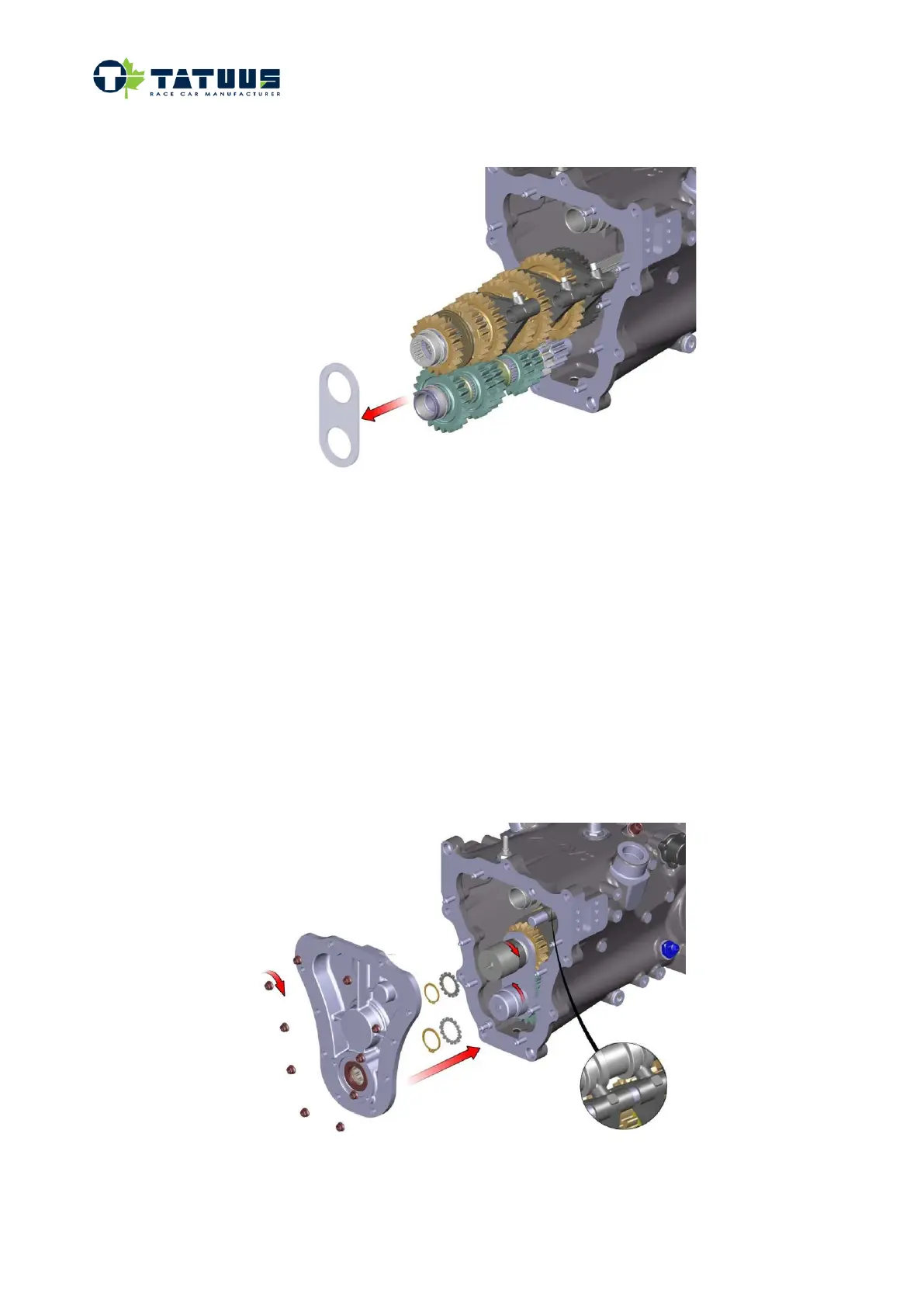

• Mount the Anti-splay plate "FOUT9019004".
• Clean and degrease the threads of the shafts and their nuts, for assembly use copper grease.
• Primary nut, copper grease tightening torque 150N.m.
• Secondary nut, copper grease, tightening torque 180N.m.
• Reinstall the splined washers and the circlips.
• Remove the Anti-splay plate.
• Fit the fork shaft. Be careful that the control fingers of the 4 forks are in initial locations.
• Replace the closing plate and tighten the M8 nuts (25N.m).
