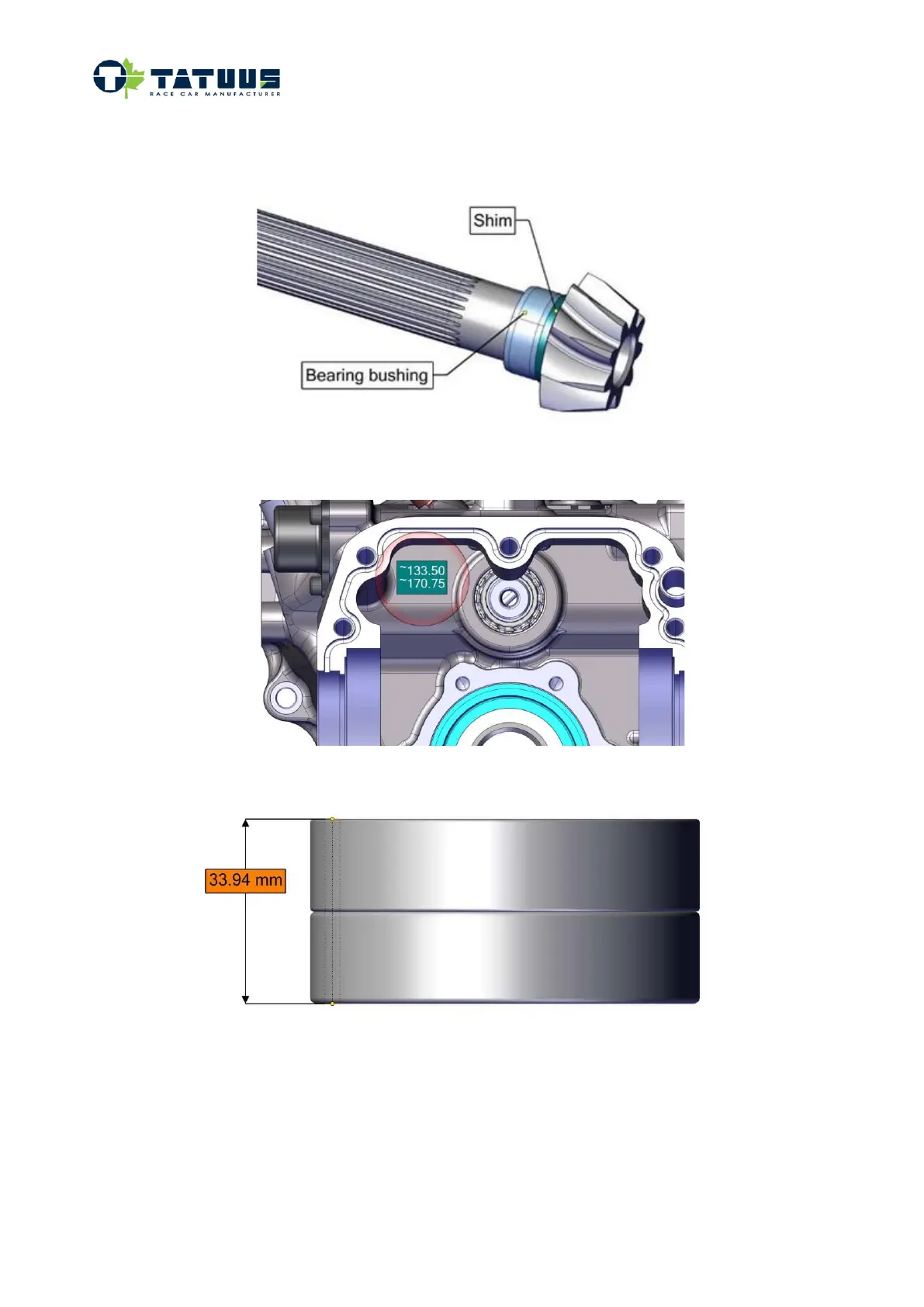

13.11.12 Secondary shaft advancement, shim calculation.
Operation to find the thickness (D) of the advancement shim on the secondary shaft:
• Note the smallest dimension marked in the main housing (A) (ex 133.50).
• Note the thickness of the two secondary shaft bearings (B) (ex 33.94).
