2.7.3 Front nose repair specification and procedure
2.7.3.1 Applicable requirements
The following procedure is applicable only when the damage is contained in the first 150mm from the nose
tip (700mm from the nose/FAIP interface), all the other damages must be inspected by the manufacturer.
2.7.3.2 Replacement procedure
Spare nose tip is available as spare part, the reference code is 33-01-032

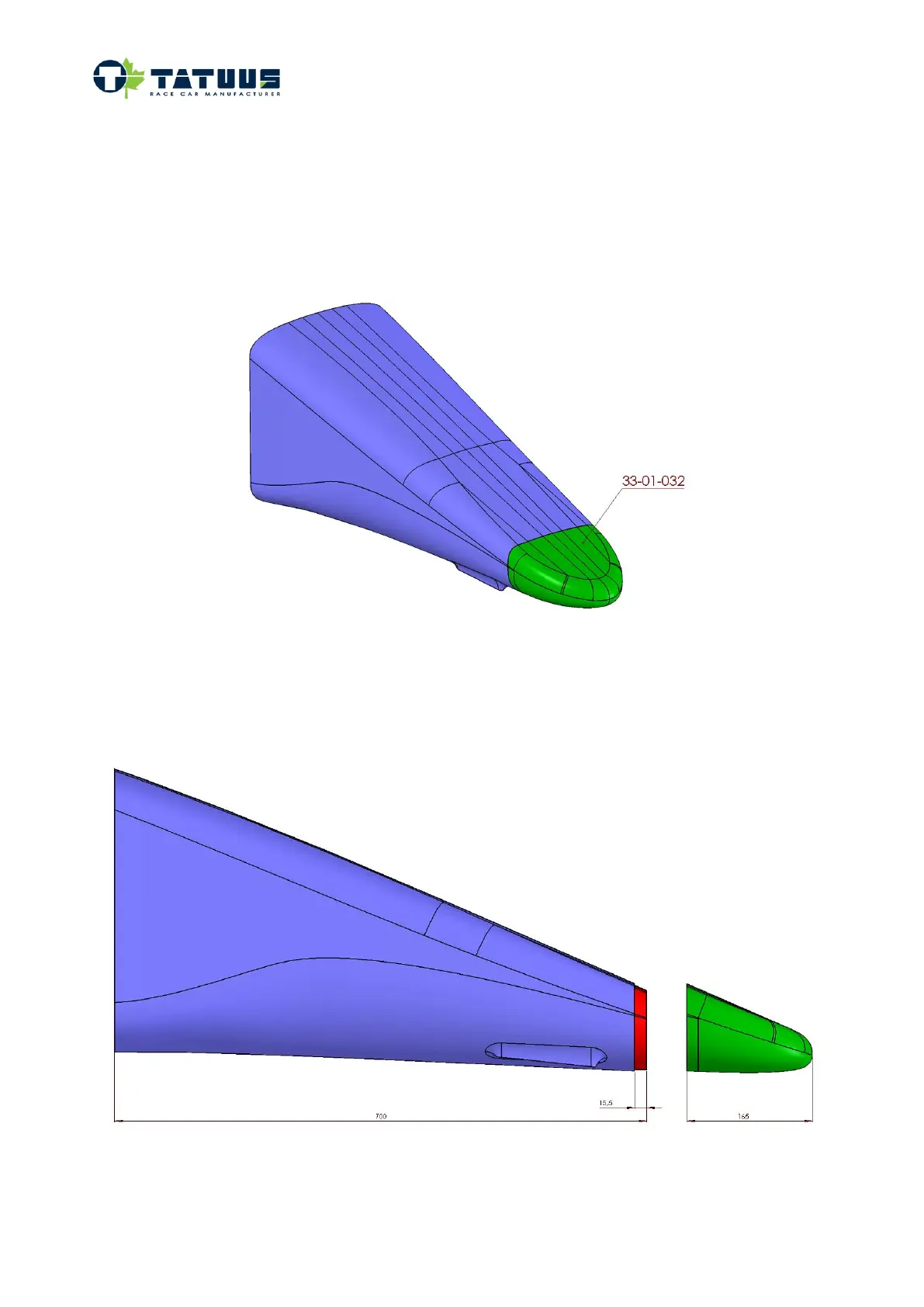

1. Trace a line parallel to the chassis bulkhead 700 mm from the bulkhead, you should find the line 15
mm from the old nose tip junction.
2. Cut off the nose tip forward the traced line.
3. Using sandpaper on the outer surface, reduce the thickness of the crashbox by about 1mm for a
length of 15-25 mm (red area).
