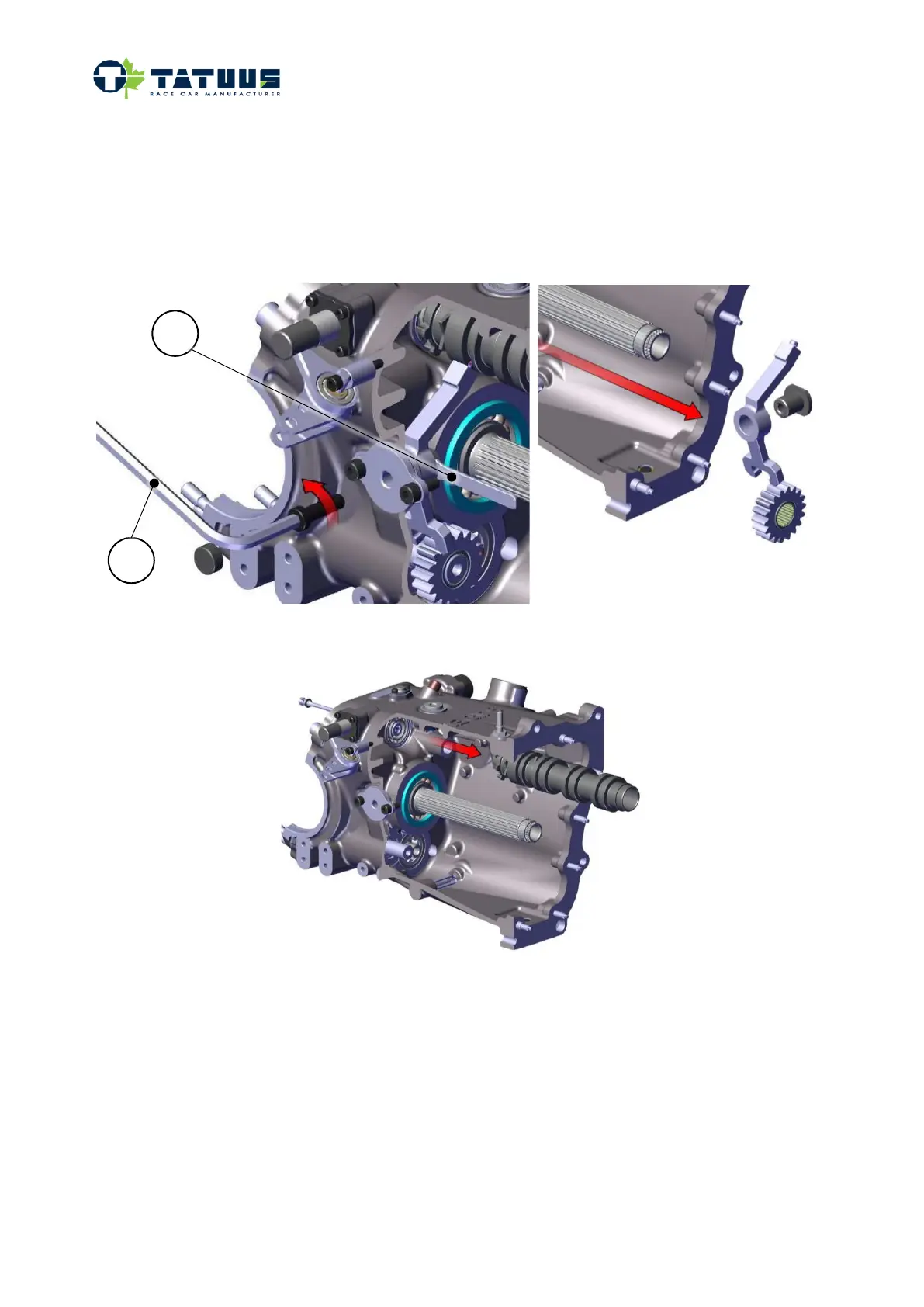

13.11.5 Barrel and reverse gear rocker removal
• Remove all gears. "see paragraph 13.11.1" and the primary shaft.
• Remove the reverse gear rocker: hold the special nut with a flat wrench
○
1 , loosen the external
pin bolt with an Allen key
○
2 .
• Remove the barrel.
13.11.6 Barrel and reverse gear rocker refitting
• Fit the barrel.
• Fit the reverse pinion gear in the fork of the reverse gear rocker.
• Insert the rocker control finger in the barrel groove.
• Refit the external pin bolt and the inner special nut.
• Tighten the external pin bolt (Loctite 270, torque 55 N.m).
2
1
