Tatuus T-421 - Brake Pedal

RELEASE 2.1.0
77

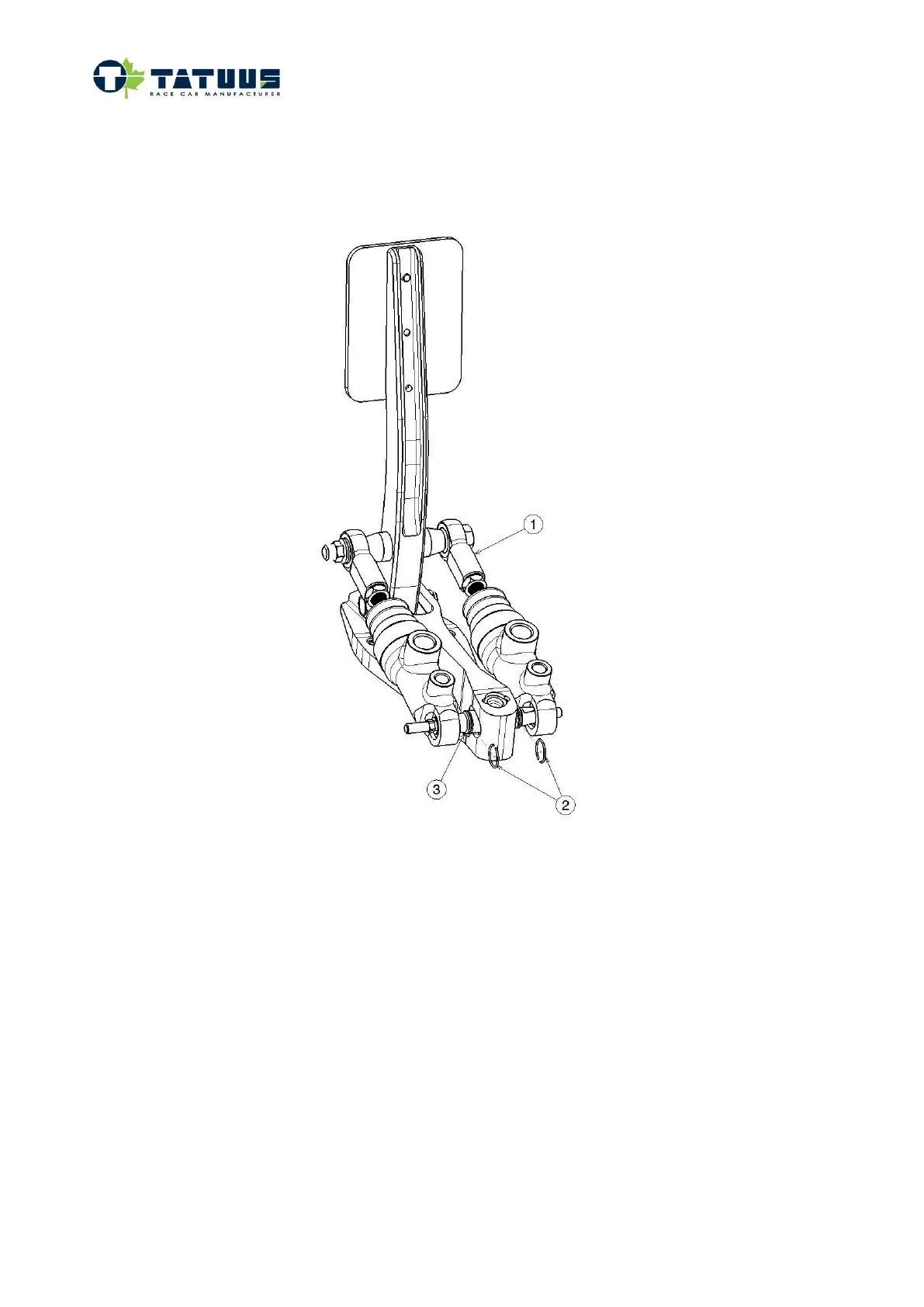

3.8.1.1 Brake pedal
Rest position adjustment: operating on the rod end ① the pedal plate can be moved
It is recommended to inspect and set the brake balance ③ in order that the adjustment stops ② are
correctly in position and far from their contact.
It is recommended to replace the balance bar and the pedal base every 10’000 km.
