front end of the chassis. The antenna may be installed on the front damper deck below the Kevlar
patch of the damper cover.
For optional sensors and devices allowed use please refer to the Sporting Regulation of the relevant
Championship.
11.4.5 Video system

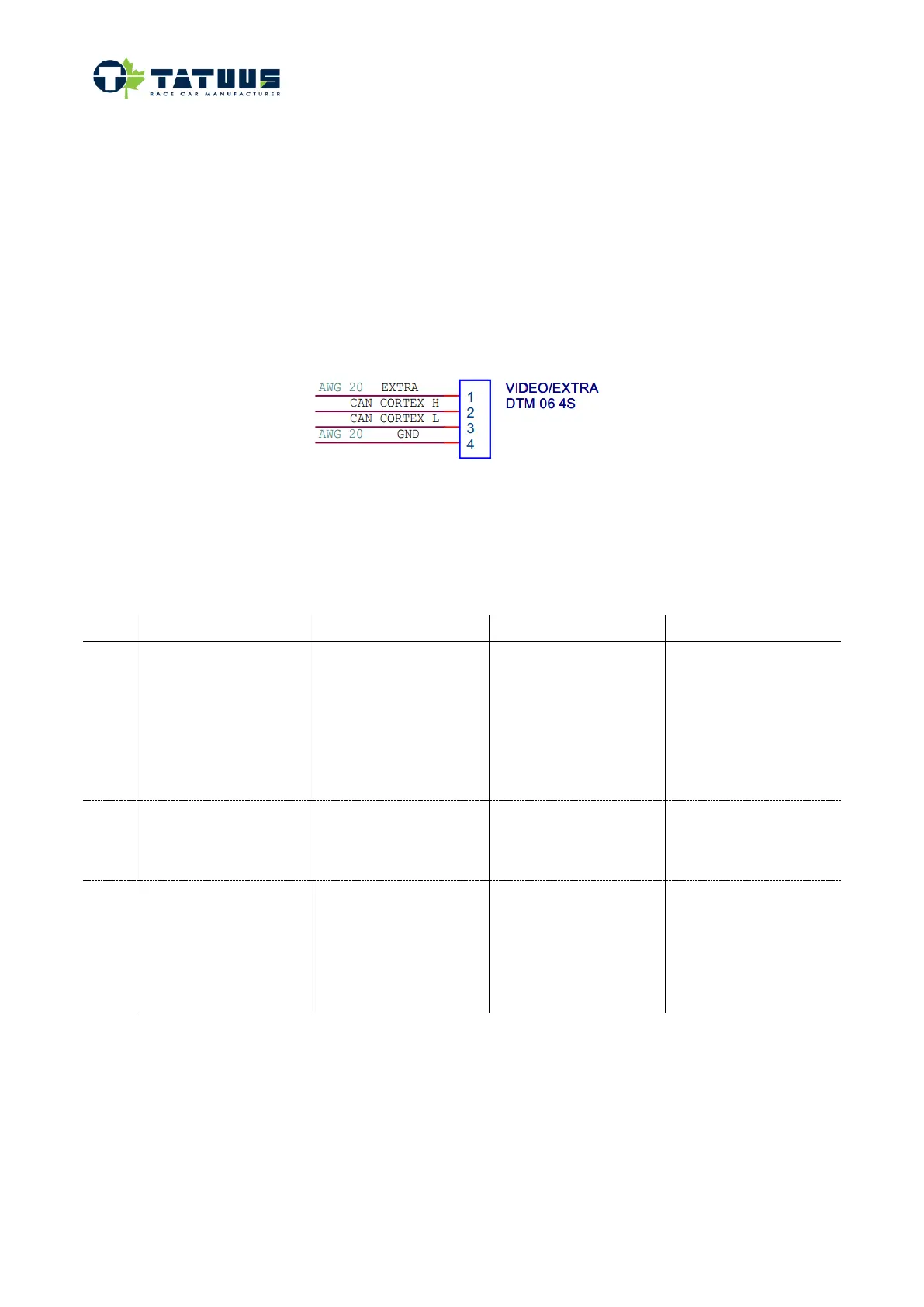

AIM smarty cam GP HD 2.2 is supplied together with the car. The Smarty cam unit should be connected to
the VIDEO/EXTRA connector on the chassis loom. A junction loom is necessary and is supplied together with
the camera system
The pre- installed video system is configured to be compatible with the data logger data stream in order to
display data overlay on the video.
11.4.6 VREF list
Loom
VREF 1
VREF 2
VREF 3
VREF 4
Chassis loom
Front Brake Pressure
Throttle Pedal (B)
Throttle Pedal (A)
Rear Brake Pressure
Steering Position
External accelerometer
Analog spare input 1
Analog spare input 2
Gearbox
loom
Analog spare input 3
Gear position
Analog spare input 4
Analog spare input 5
Engine loom
DBW
Manifold Pressure
Water pressure sensor
Turbo Pressure
Temp/Press fuel
Crank pressure
Oil pressure
S-CAM
Sensors in light blue are connected to the chassis loom.
Sensors in green are connected to the gearbox loom.
Sensors in black are connected to the engine loom.
