13.10 INFORMATION ABOUT DISASSEMBLY
Before any intervention
Unless otherwise stated, all interventions are done with gearbox in neutral, drained and disassembled of
the car.
Arrange you a clean and large enough surface to put parts during disassembly.
It is very important to mark the mounting direction of each part during disassembly. When they were run in
a direction of rotation, reusing them in the opposite direction may cause premature damage.
For the same reason, sets of Fork/Dog ring/Dog ring hub, must always be kept together.
During each disassembly, remove the oil and grease, clean and check the state of each part; replace it if
necessary.
During assembly, lightly lubricate the bearings, needle bearings with gearbox oil.
13.11 ASSEMBLY /DISASSEMBLY

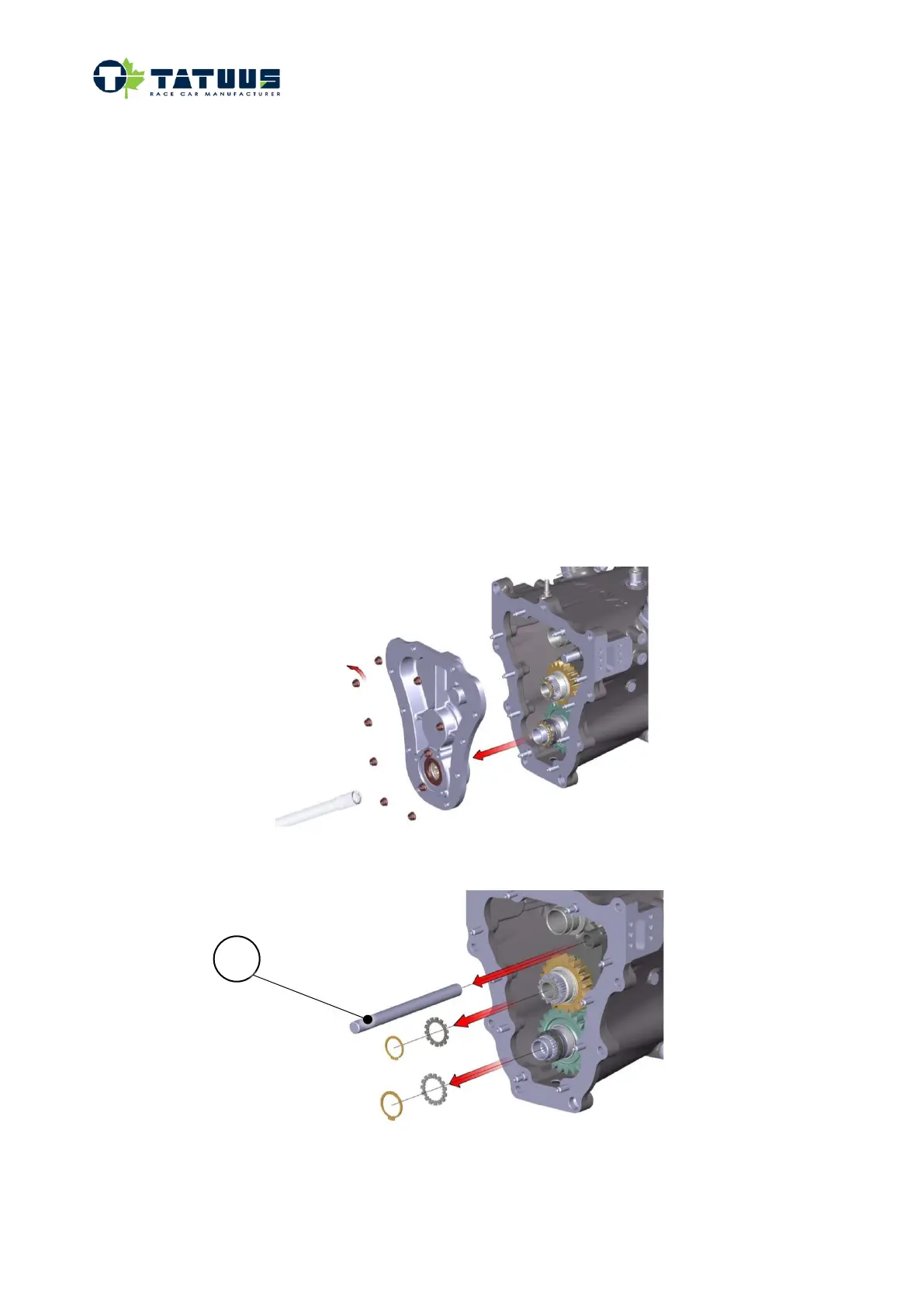

13.11.1 Gears disassembly
• Drain the gearbox thought lower drain plug.
• Remove the clutch shaft and the retaining ring.
• Loosen the 10 nuts M8; and remove the cover plate.
• Remove the fork shaft
○
1 .
