RELEASE 2.1.0

160

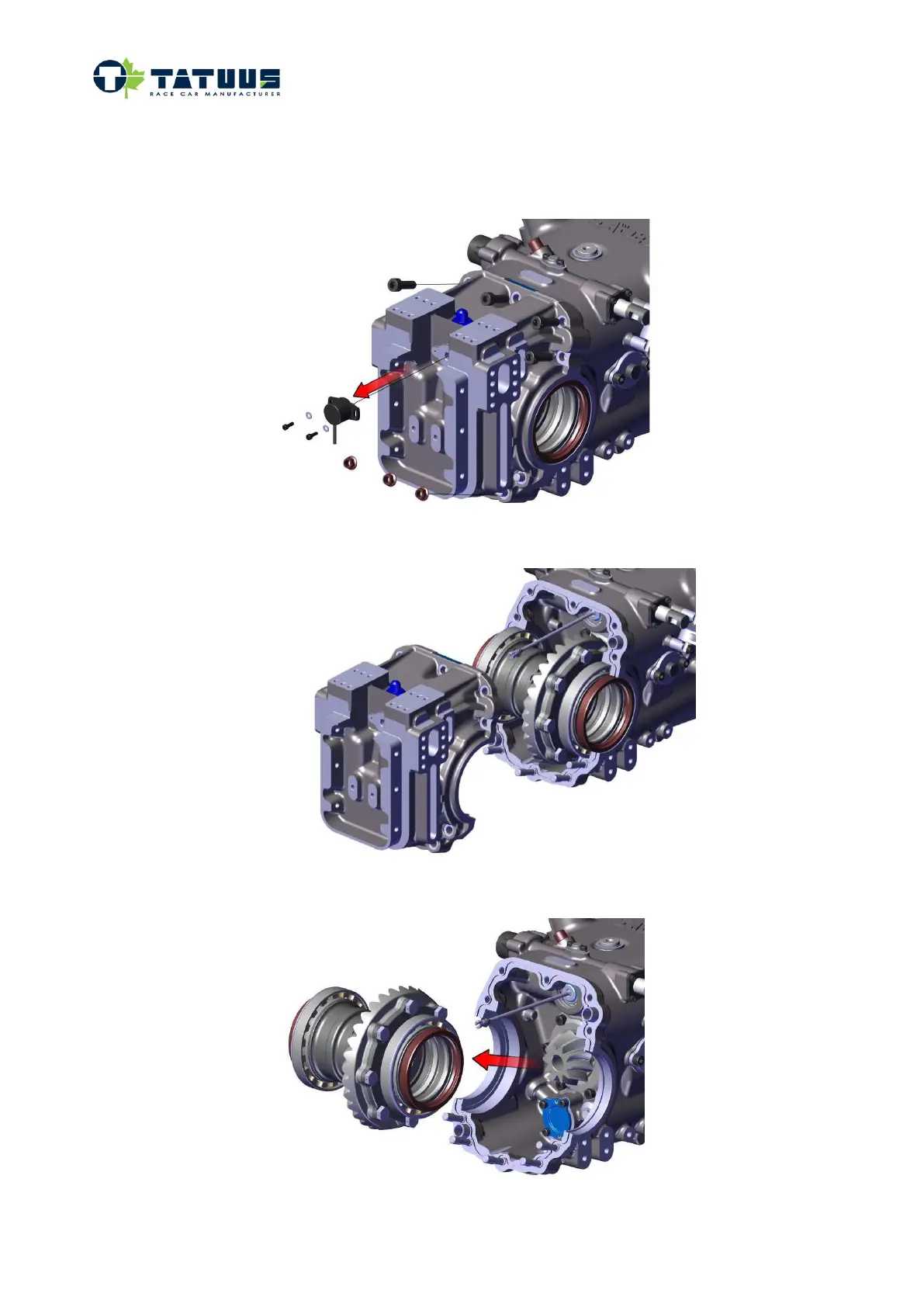

13.11.7 Differential removal

• Drain the gearbox.

• Disconnect the sensor and unscrew the 5 M10 nuts and the 5CHC M10x30 screws.

• Remove the rear housing.

• Extract the differential.
