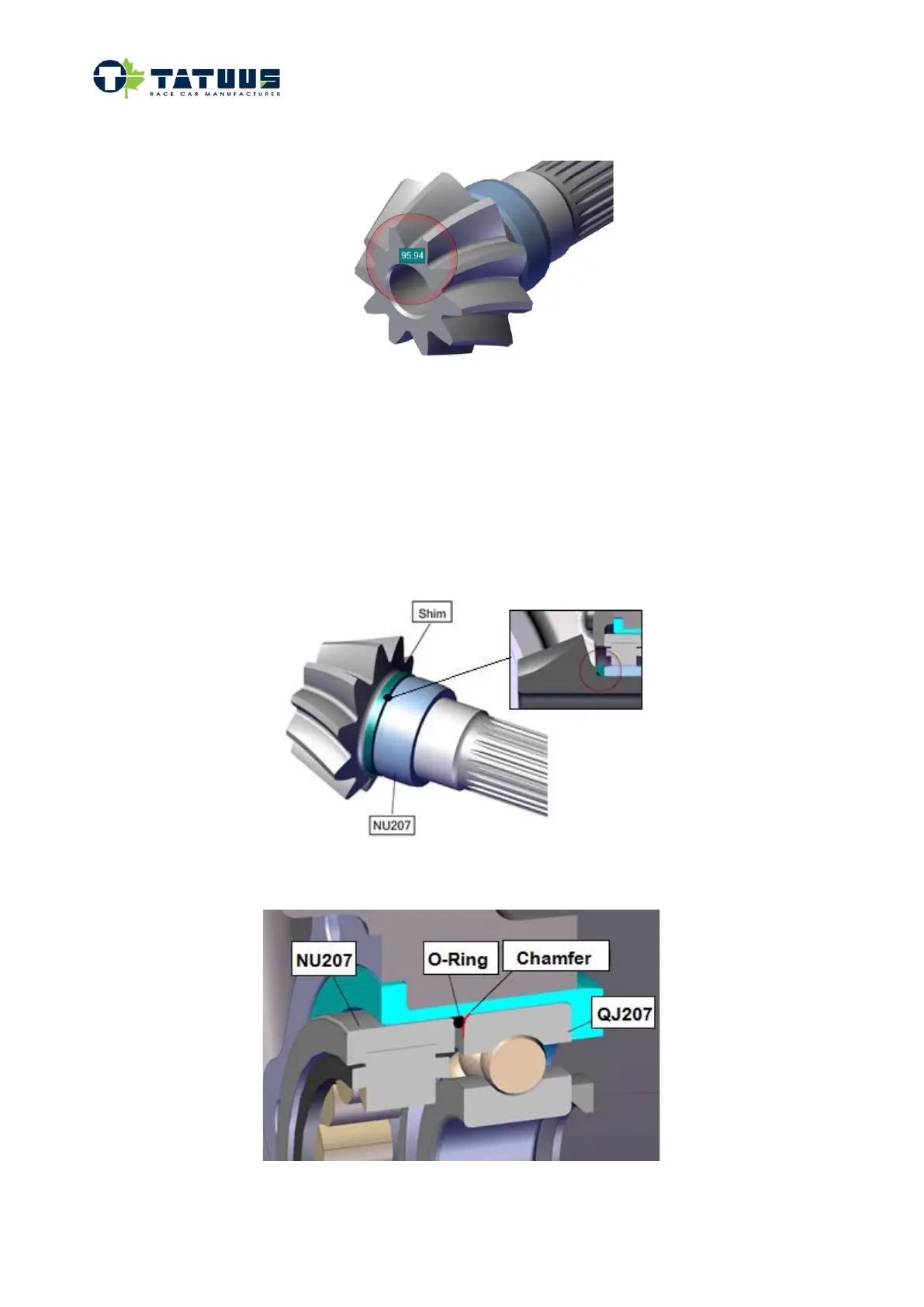

• Note the value engraved on the secondary shaft (C) (ex 95.94)
A - (B + C) = D
Ex: 133.50 - (33.94 + 95.94) = 3.62
Choose the shim from the F19102051 set, assemble the shim being the closest as possible to the calculated
thickness (ex 3.60mm).
13.11.13 Secondary shaft reassembly
• Assemble the correct thickness F1910205 shim, press the bearing inner ring NU207 on the
secondary shaft. Warning: Shim mounting direction.
• Refit the bearing QJ207. Warning: chamfer on differential side. Set in place a new o-ring on the
chamfer of the external race of the QJ207 bearing. Refit the NU207 bearing.
