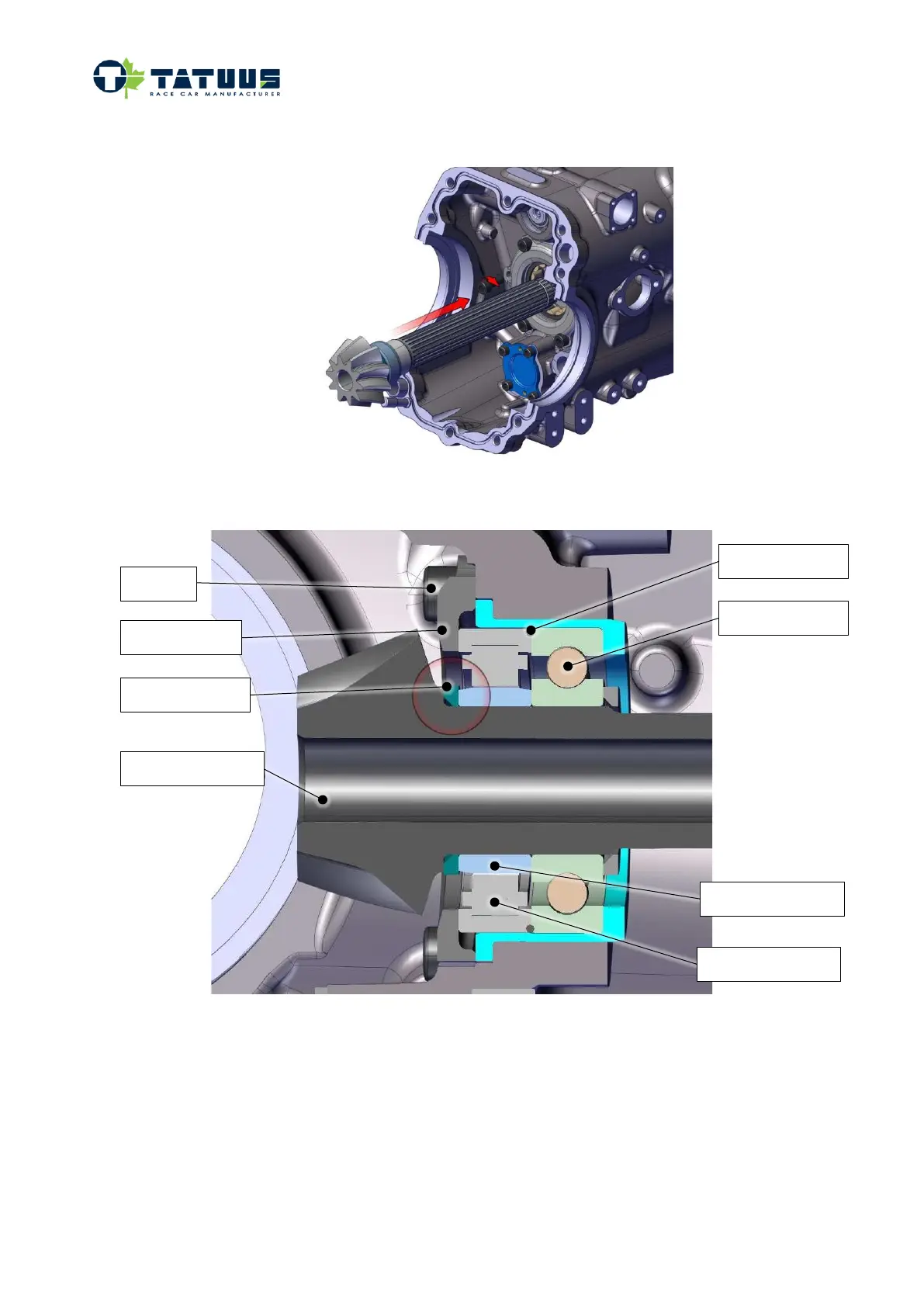

• Refit the bearings flange on the housing, tighten the 6 M8 bolts (Loctite 270; torque 25N.m).
• Set it in place the secondary shaft through the bearings using a plastic mallet.
M8x20
Berings flange
F1910205 Shim
Secondary shaft
NU207 Bearing
NU207 Inner ring
O-RING Ø68x2
QJ207 Bearing
