6 STEERING
6.1 STEERING GEOMETRY
Standard ratio: 8 teeth pinion
Pinion primitive diameter: 17.3 mm
Steering ratio: 11.7 °/°
6.2 STEERING MAINTENANCE

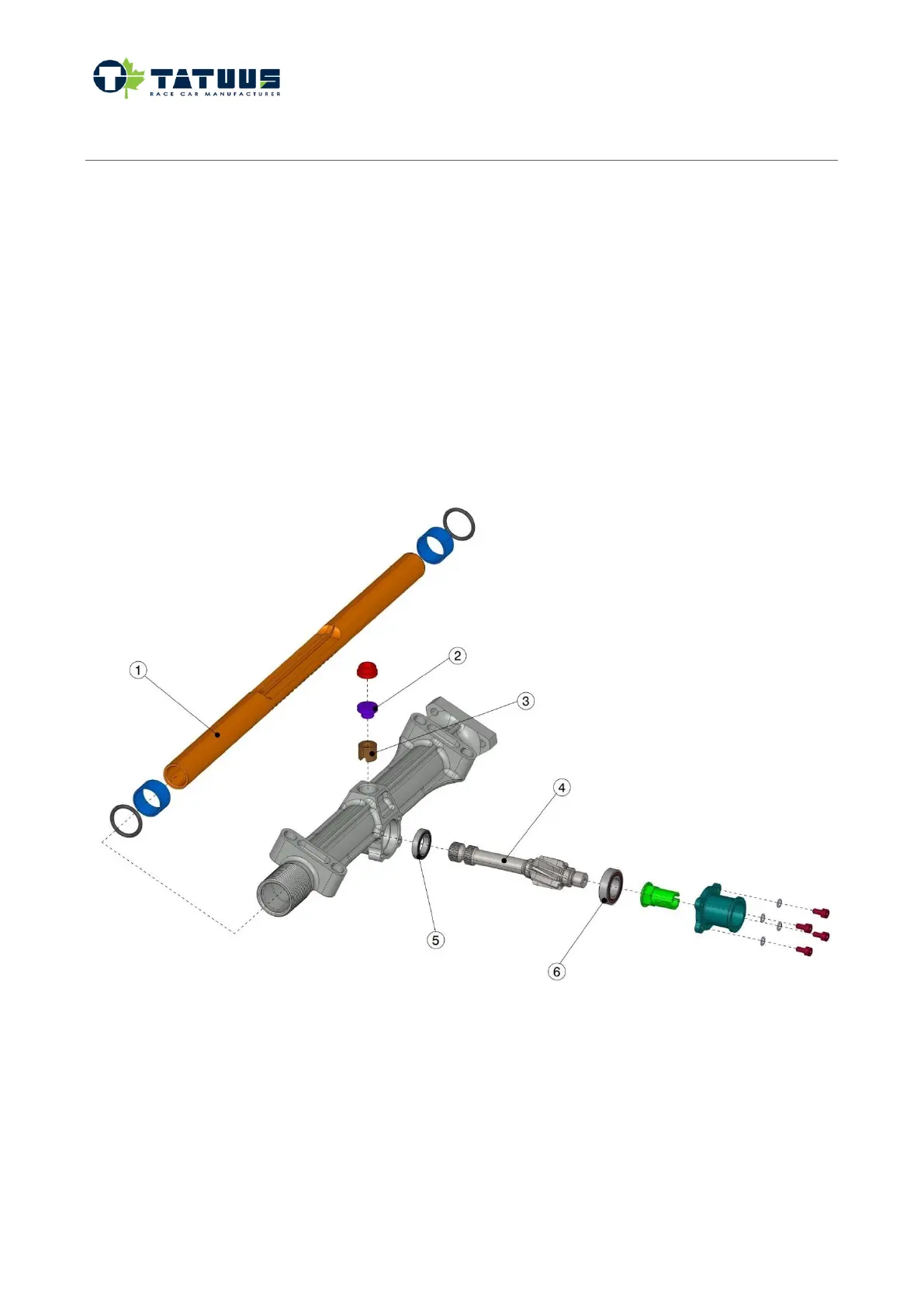

The steering rack must be periodically inspected:
• rack pinion play: the preload can be set acting on the bush [2], its position should be regularly
inspected to follow system wearing, periodically inspect bush [3];
• pinion [4]: regularly inspect and lubricate;
• bearings [5-6].
