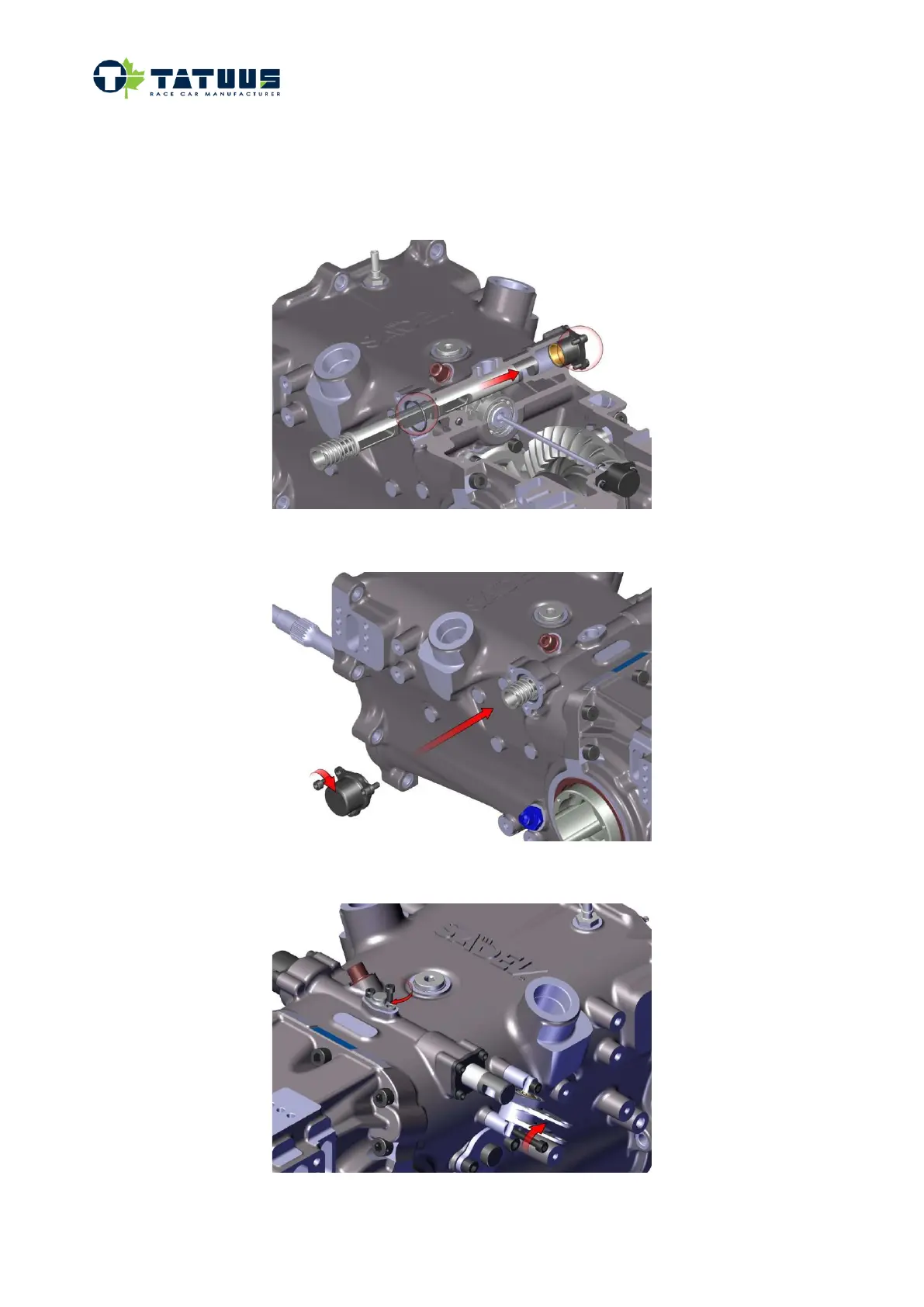

13.11.4 Selector shaft refitting
• Engage the reverse gear. Check the O'ring.
• Set in place the rachet into the selector axle.
• Insert the selector axle assembly in the main housing.
• Refit the selector closing block with the 3 M6 screws (loctite 243; torque 15N.m).
• Refit the push pin, screw the 2 M5 (loctite 222; torque 8N.m).
