3.8.1.4 Clutch pedal

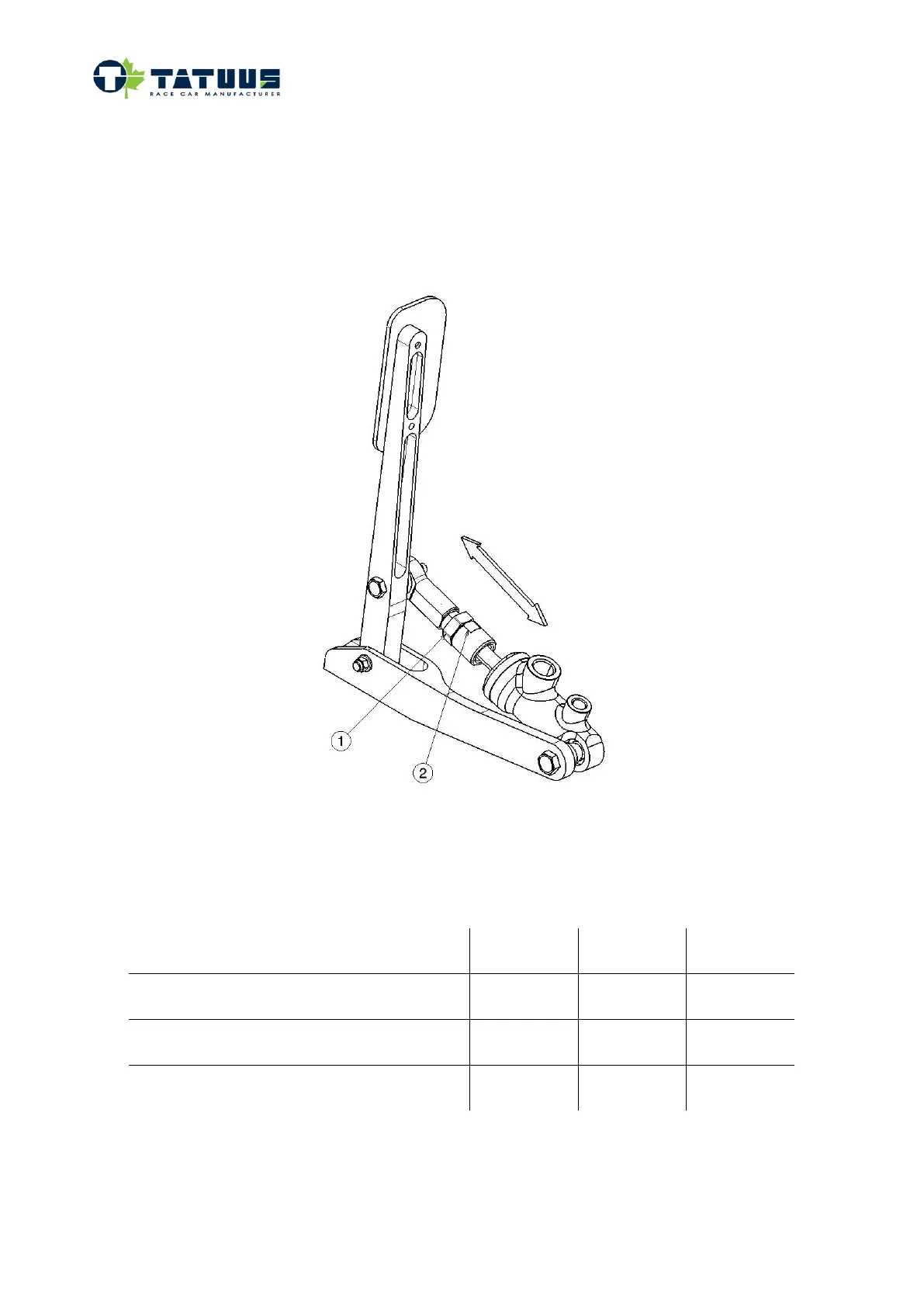

Rest position adjustment: operating on the rod end the pedal plate can be moved.
Stroke/full stroke: the stroke and the final position can be adjusted operating on the bush ②, counter nut
① must then be locked.
The standard master cylinder for clutch actuation is a 5/8”, here below a guideline of theoretical strokes to
operate the clutch mechanism compared to the optional master cylinders available:
Master cylinder
[mm]
5/8”
(15.88mm)
3/4”
(19.05mm)
13/16”
(20.64mm)
Slave cylinder displacement
[mm]
2.5
2.5
2.5
Master cylinder displacement
[mm]
11.7
8.1
6.9
Pedal “top” displacement
[mm]
53
37
31
