3.6.3 Steering Wheel Display

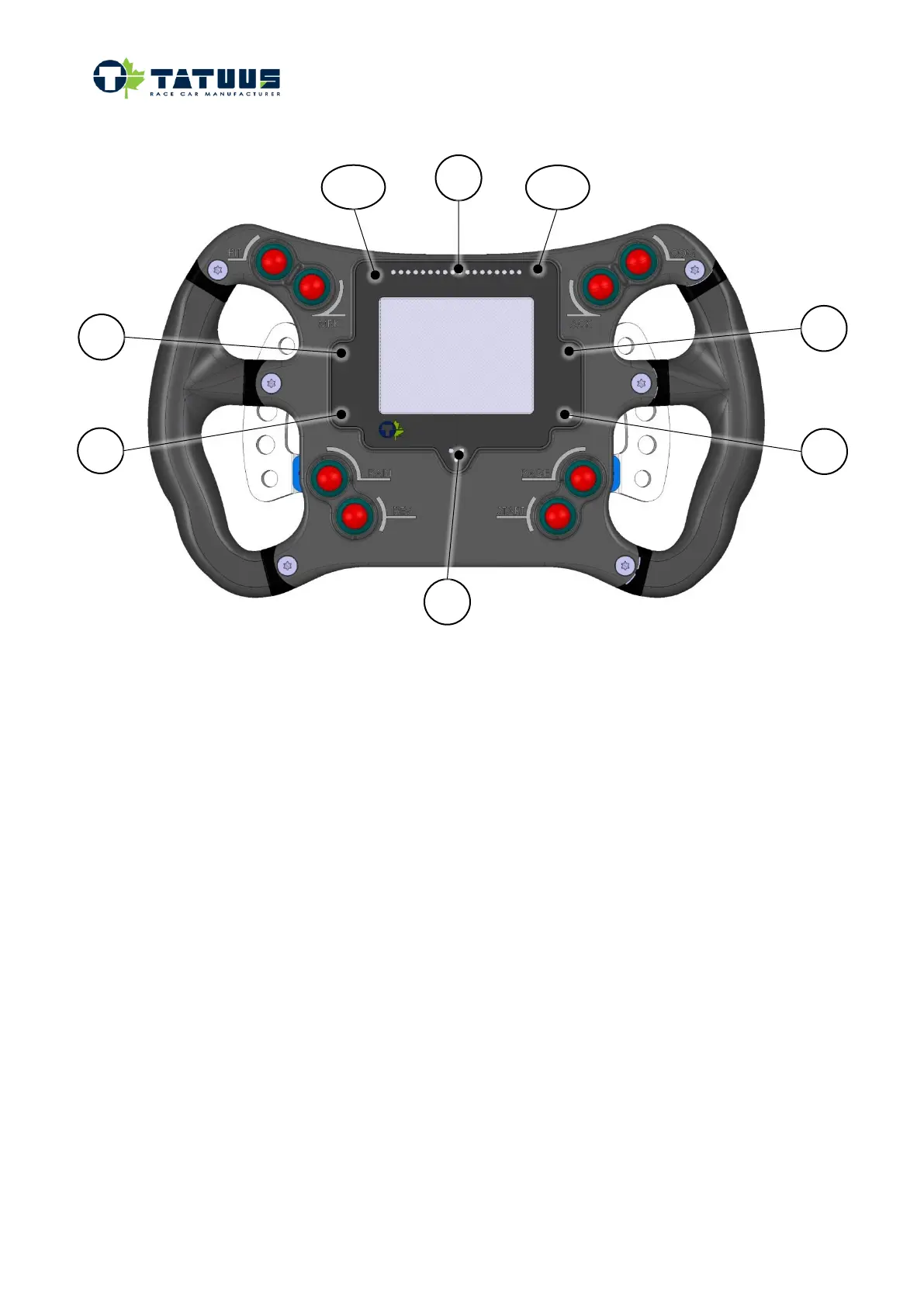

• LED strip #1: Shift lights
• LED strip #1b: Blue LED are ON when pit limiter is engaged
• Alarm ②: Low Oil Pressure
• Alarm ③: High Oil Temperature
• Alarm ④: 3x RED LED will blink when a general alarm is on, the display will highlight the relevant
value and will show a text message
• Alarm ⑤: Electric Fault
• Alarm ⑥: High Coolant Temperature
