3.6.3.4 Page #4: Electric Power Distribution

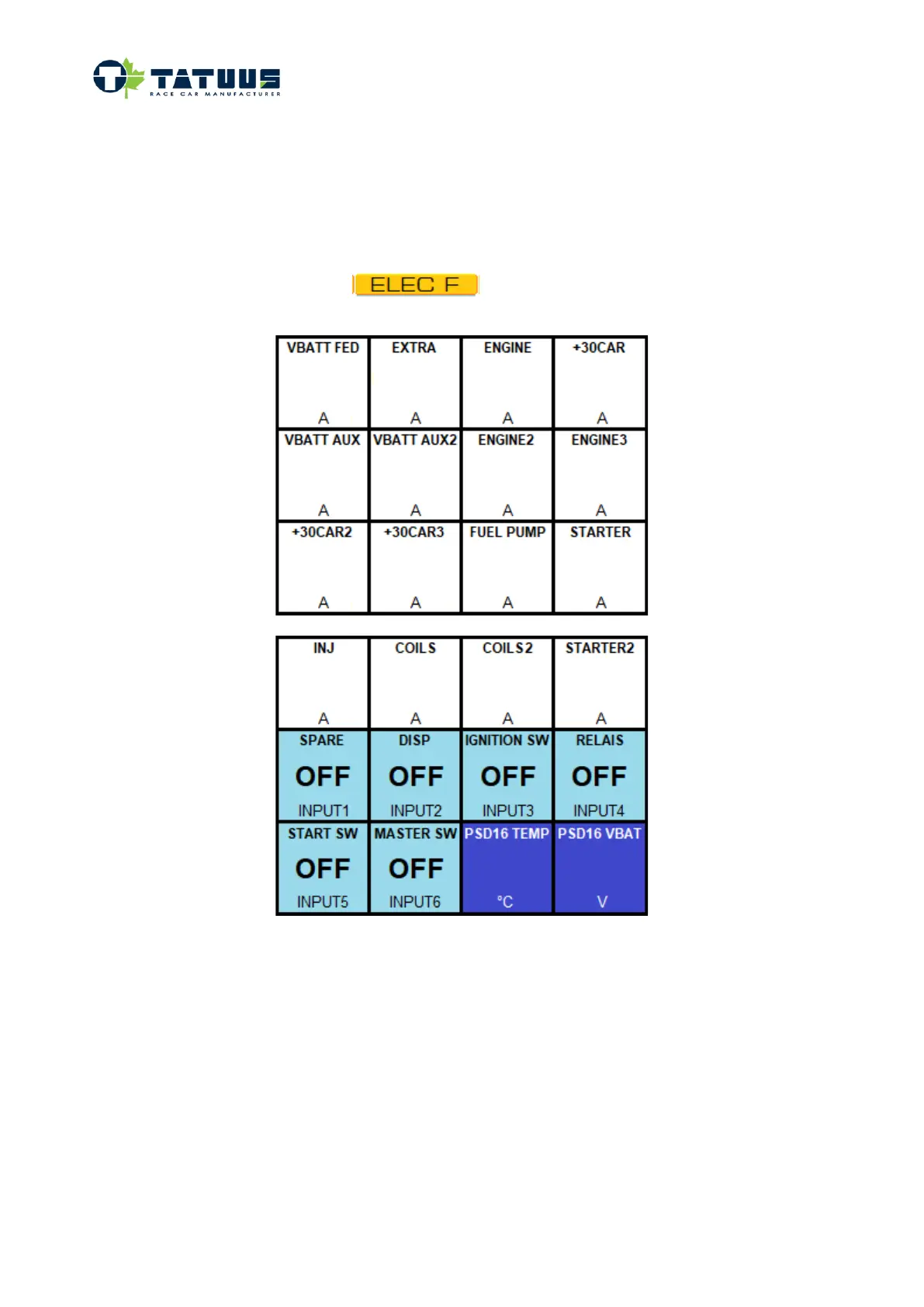

This page shows the power system of the car, each box contains the current drawn by the relevant line.
The background of the boxes is
• White: if the relevant power line is not commanded
• Yellow: if the relevant power line is active. In this case the current consumption is displayed
• RED: if the relevant line has been shut down(i.e. short-circuit detected).
In this case an alarm showing will pop up in page #1
The powerbox pages show also the status of the inputs. Please refer to powerbox chapter for further details.
