3.8.3 Brake Bias

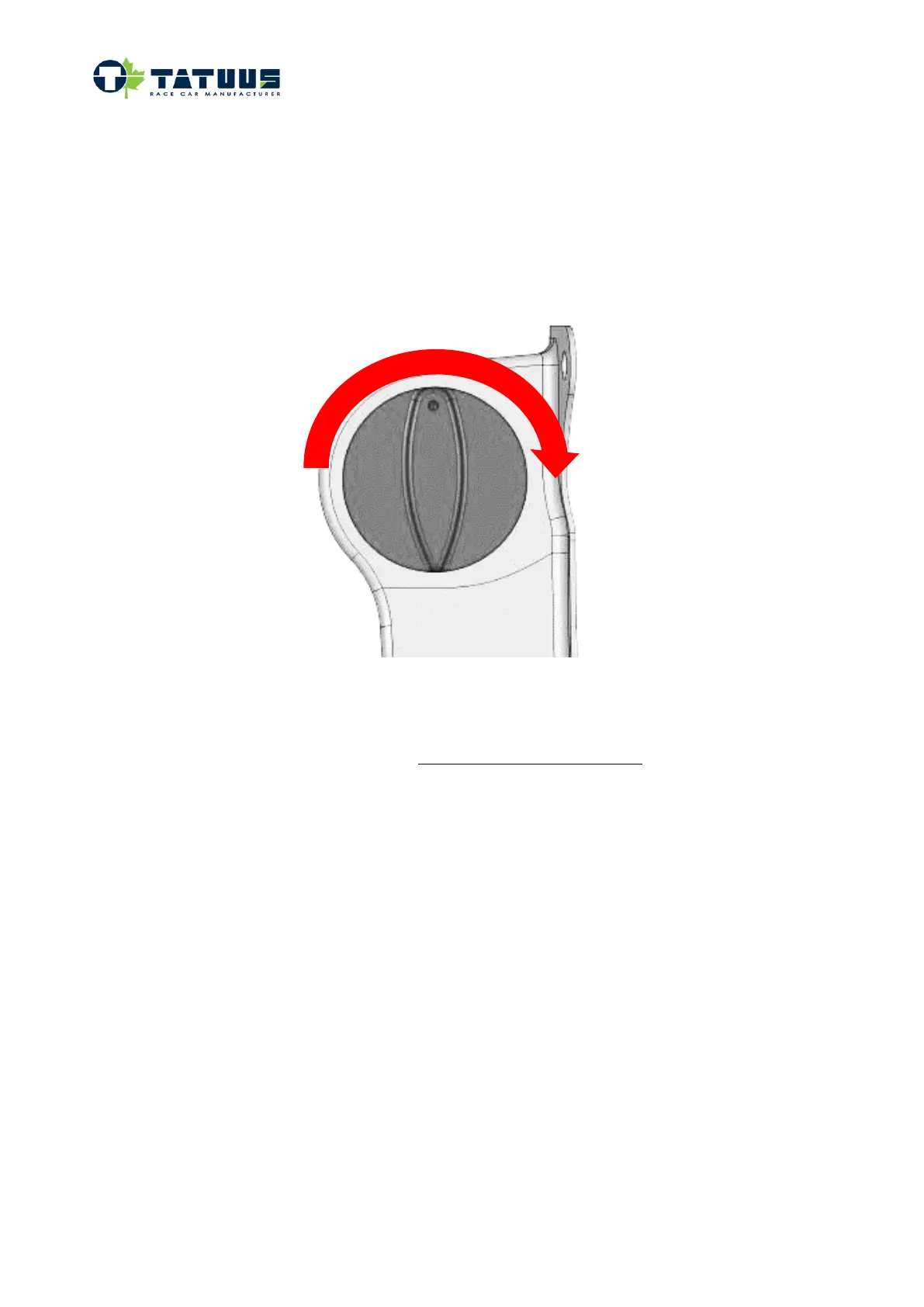

The brake bias knob is located on the right-hand side of the driver seat.
Rotating clockwise will shift the brake balance towards front: with the standard master cylinders (Front =
19.05 mm, Rear = 20.68 mm) 1 complete turn give a +1.5% front balance.
Brake pressure (Front and Rear) and Brake Bias, defined as
can be checked on page 2 of the steering wheel.
3.8.4 Brake Bias Cable
Two options are available, standard length with p/n 2420007 and short version with p/n 2420009.
