3.8.1.2 Throttle pedal

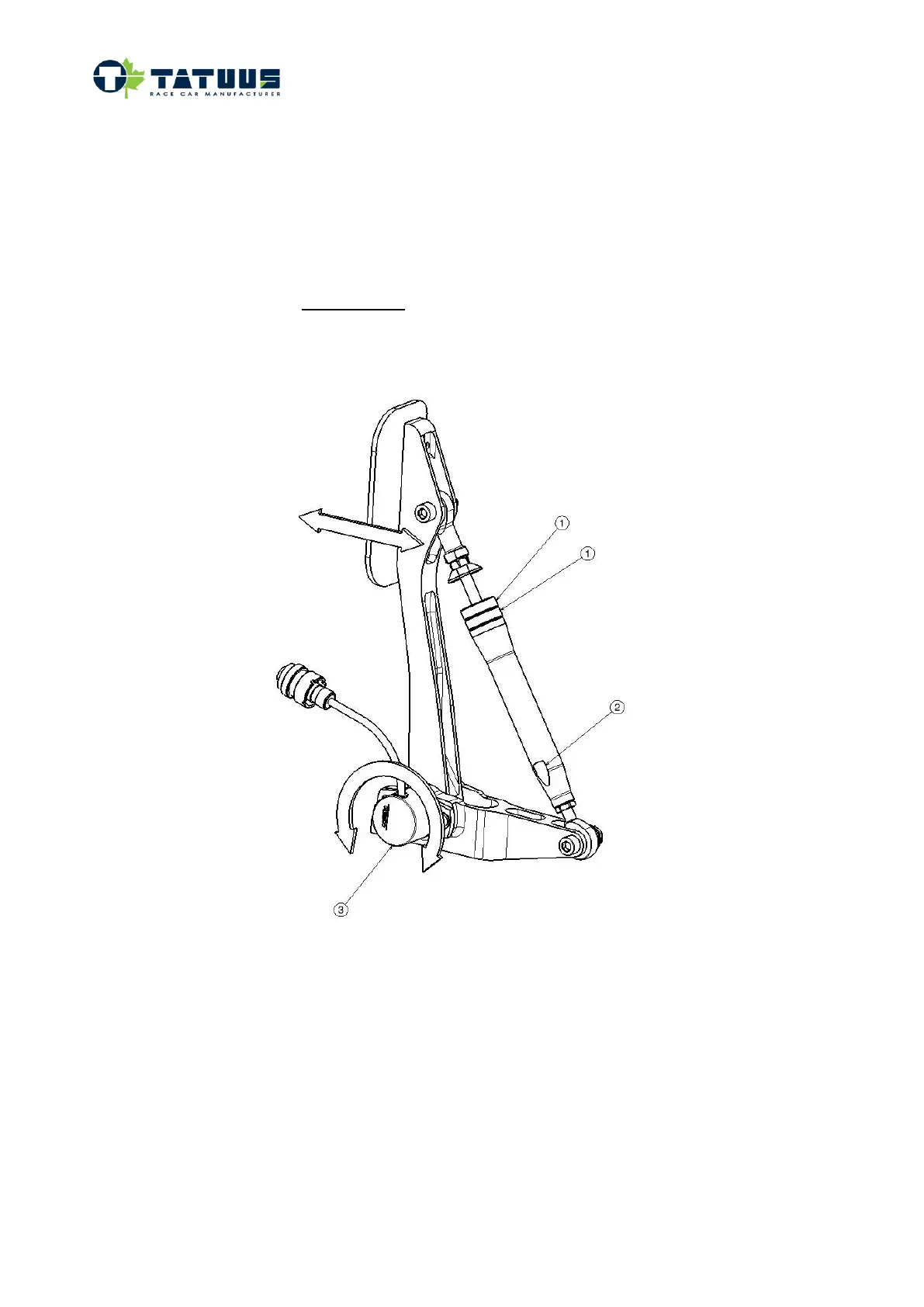

Rest position adjustment: operating on the bottom rod ends the pedal plate can be moved.
Stroke/full stroke: the stroke and the final position can be adjusted adding or removing shims ① on the
damper shaft.
The throttle potentiometer has to be checked after every pedal adjustment in order to meet the calibration
thresholds. Please refer to the Engine Manual for the thresholds for full stroke and resting position.
After every operation on the pedal the throttle learning must be repeated.
