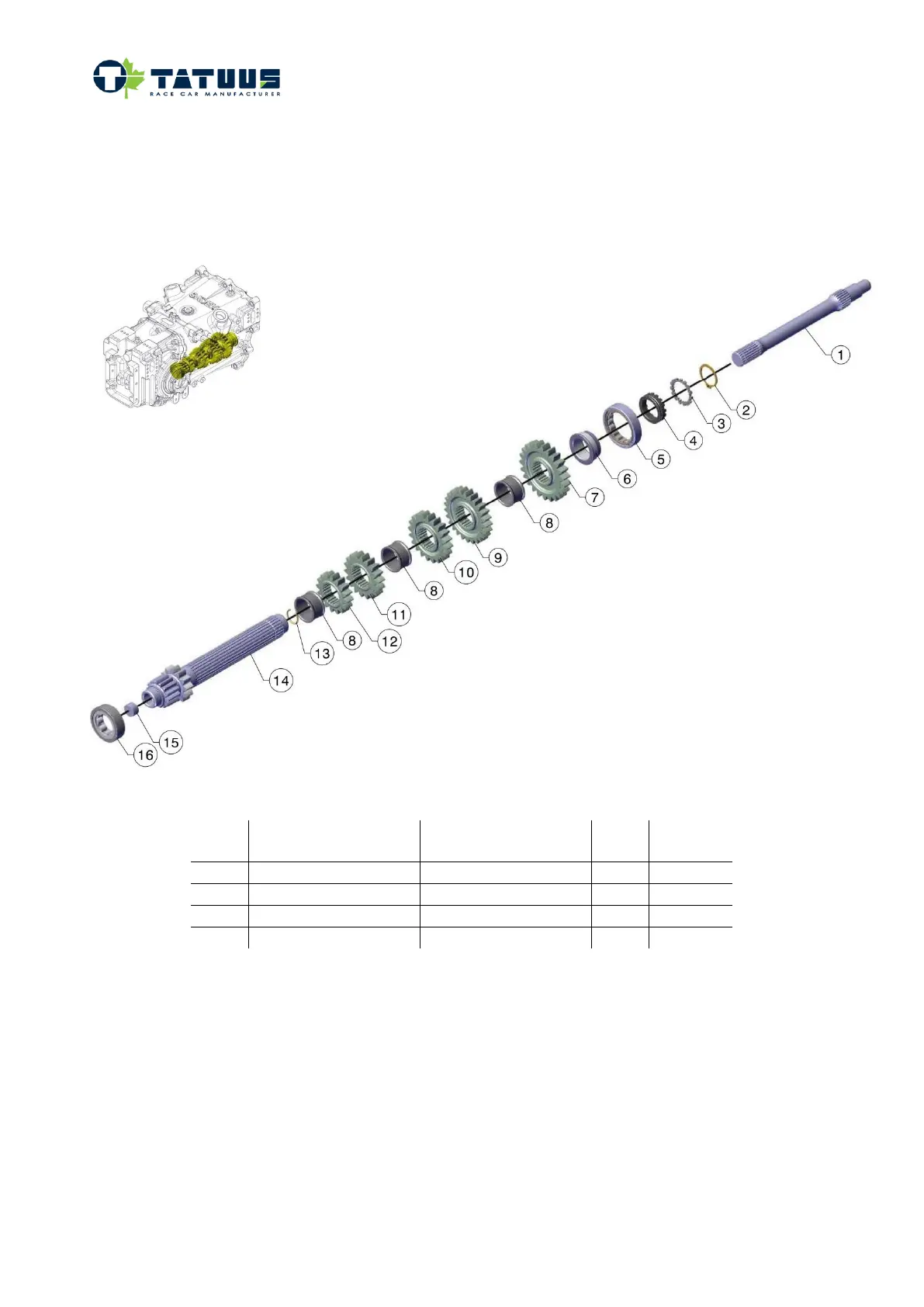

13.12 EXPLODED VIEWS
Refer to spare catalogue for part numbers
13.12.1 Primary Shaft
Item
Part number
Description
Glue
Torque
(daN*m)
4
F1910108
Nut
G.C.
15,0
5
0103012
NU 1007 ECP Bearing
518
15
F9072103
Plug
518
16
0103015
NU 304 ECP Bearing
518
