Tatuus T-421 - Suspension Maintenance; Upright Maintenance; Upright Disassembly

RELEASE 2.1.0
112
5.9 SUSPENSION MAINTENANCE
5.9.1 Upright Maintenance

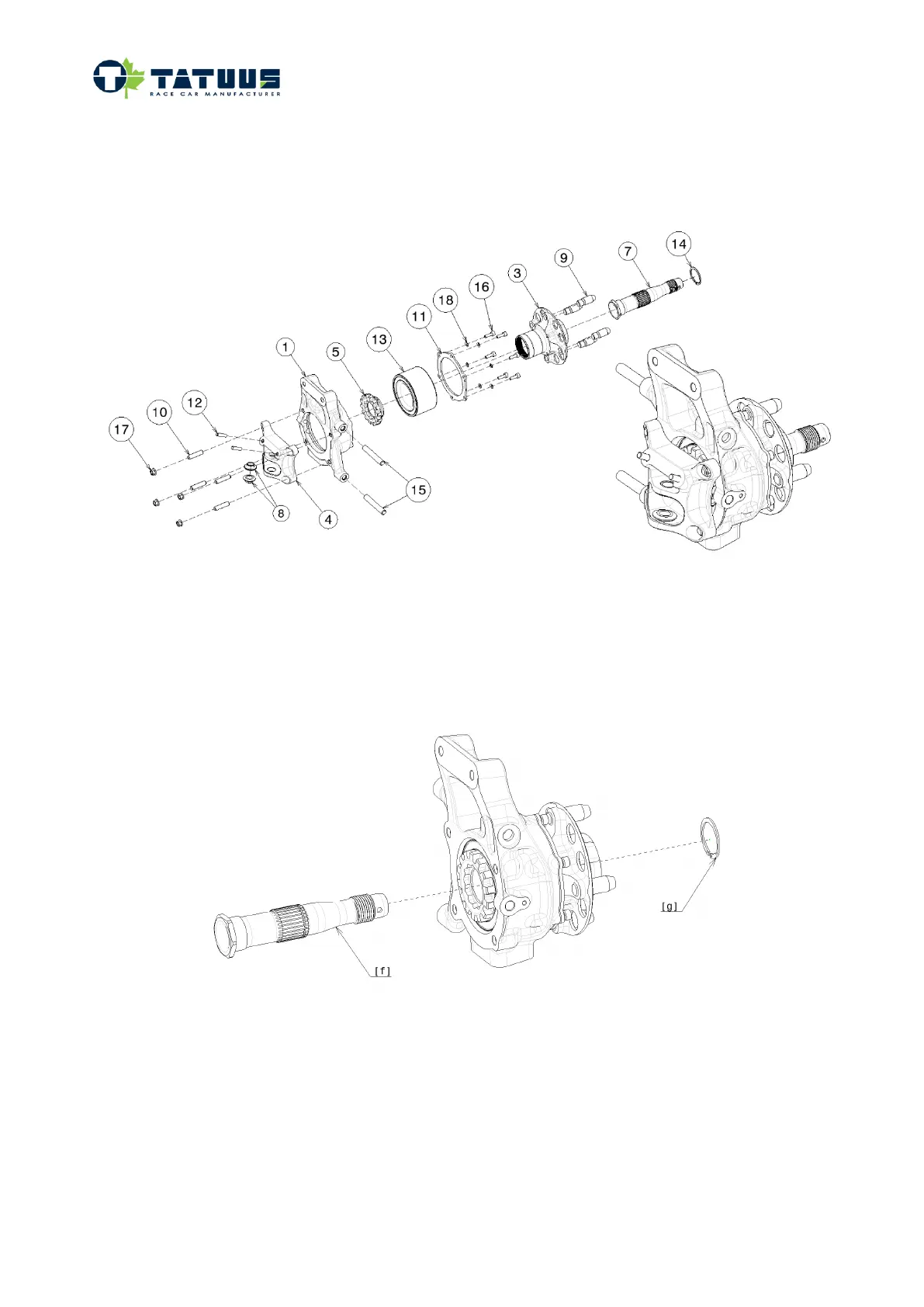

5.9.2 Upright Disassembly
The upright can be disassembled for inspection:
1. Remove the seeger [g] and the wheel axle [f].
2. Apply unlock spray.
3. Using the special tool [e] (pn. 3391010, available on Spare Part Catalogue), unscrew and remove the
ring nut [d].
