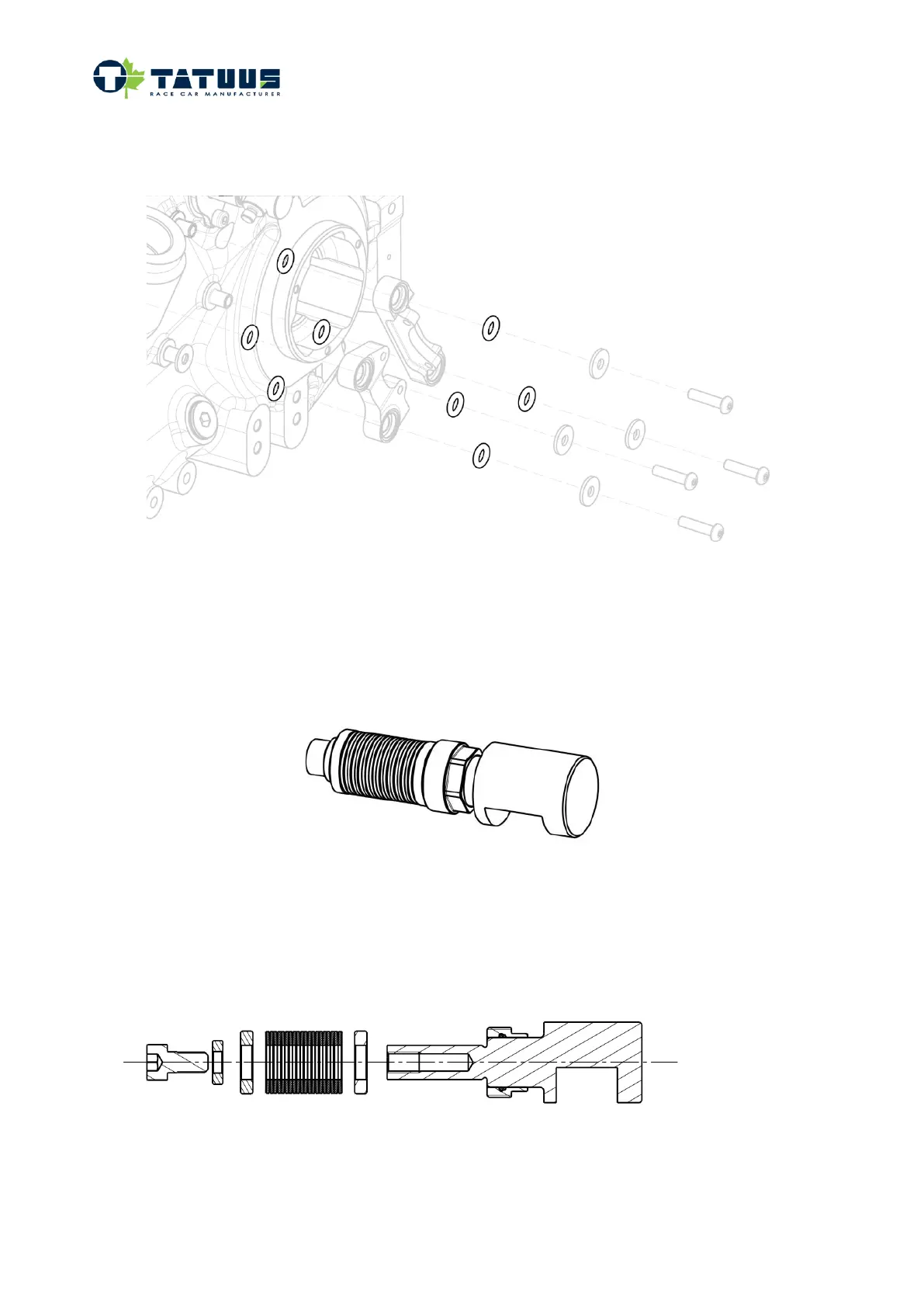

14.1.5 ESA Maintenance
It is reminded to regularly check the AV mounting of the ESA:
The rubber ring (pn. ORN08x3,5) should be inspected each 1’000 km and must be replaced before 3’000
km.
14.1.6 Damped Shaft Assy
Eighteen Belleville washer are included in the damped shaft assy (pn. 3322012).
The Belleville washers must follow the stacking order:
> < > < > < > < > < > < > < > < > <
Insert shoulder ring, Belleville springs (prescribed stack) and the M5 screw. After reaching the mechanical
stop, tight at 4 Nm, apply Loctite 243.
