13.11.11 Remove the secondary shaft
• Drain the gearbox through the lower drain plug. (see paragraph 13.5.6 ).
• Remove the primary gears and secondary gears (see paragraph 13.11.1).
• Remove the differential case (see paragraph 13.11.7).

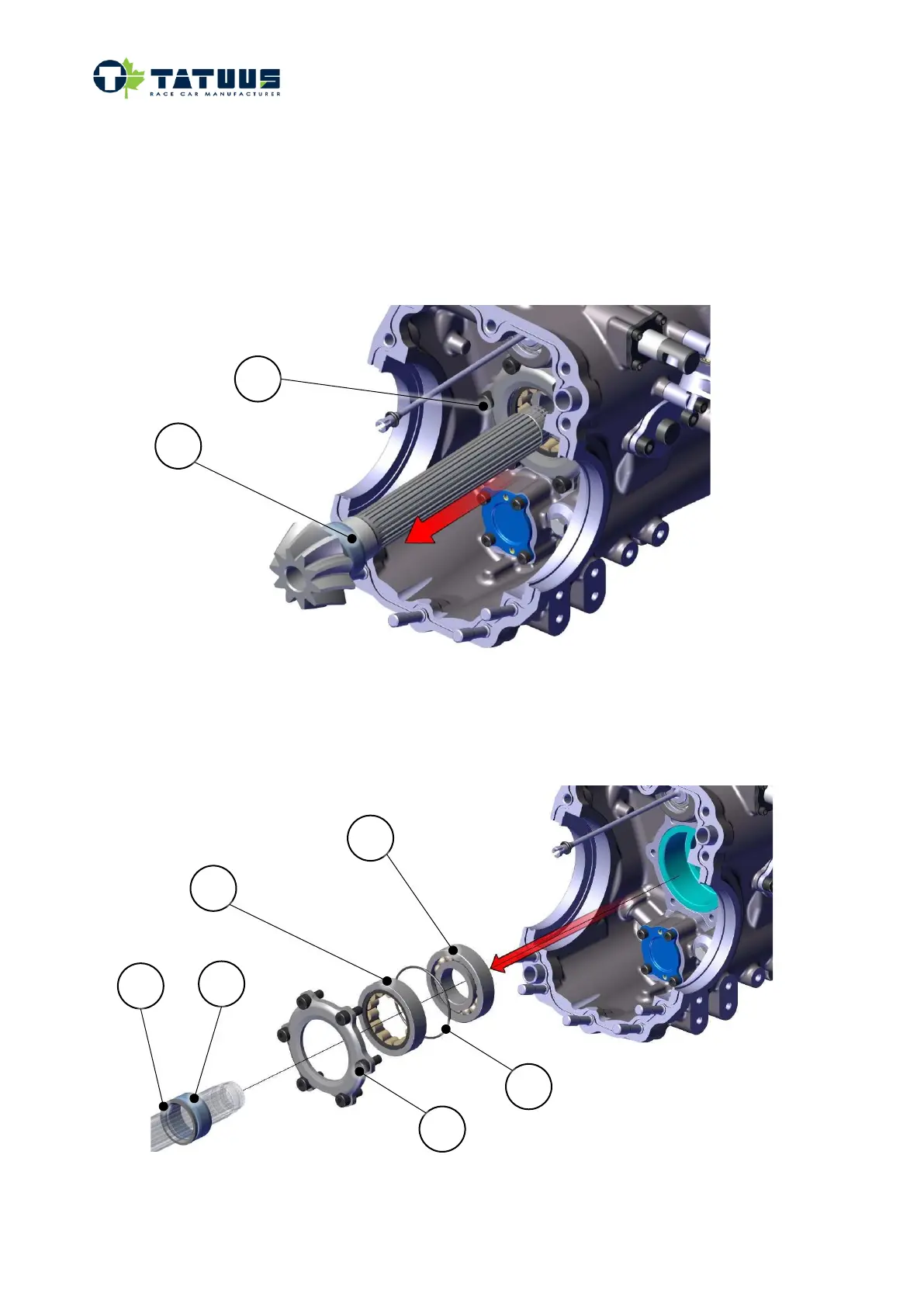

• Using a mallet, remove the secondary shaft
○
1 .
• Remove the 6 M8x18 bolts. (heat if necessary)
○
2 .
• Remove the flange bearing NU207
○
3 .
• Remove the 2 bearings
○
4 , and the o-ring Ø 68x2
○
5 .
• Remove the inner bearing ring
○
6 (extractor needed), finally remove the shim
○
7 .
1
2
4
5
7
4
3
6
