Tatuus T-421 - ESA Settings

RELEASE 2.1.0
180

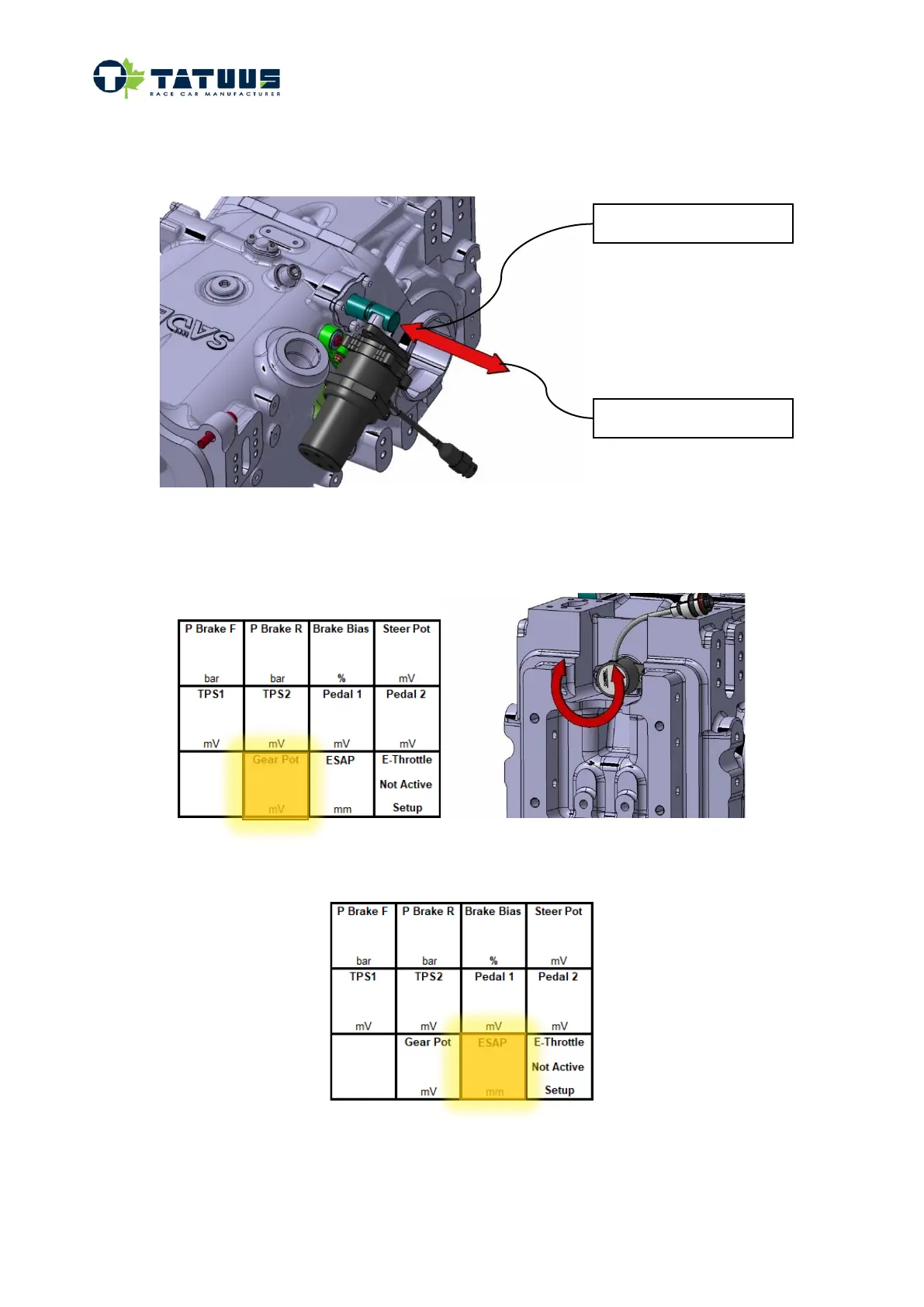

14.1.3 ESA settings
• Engage the 1
st
gear by acting manually on the selector axle of the gearbox
• Go to the page #2 of the dash display: Setting page.
Check the Gear Pot (gear barrel absolute position ) value is 1630mV +/- 10mV
• Check the ESAP: absolute actuator position [mV], the value should be 0 +/-30mV when actuator is
not operational.
Gear shift down (18mm)
Gear shift up (18mm)
