RELEASE 2.1.0

3.5.2 Power Unit -to-chassis mounting points

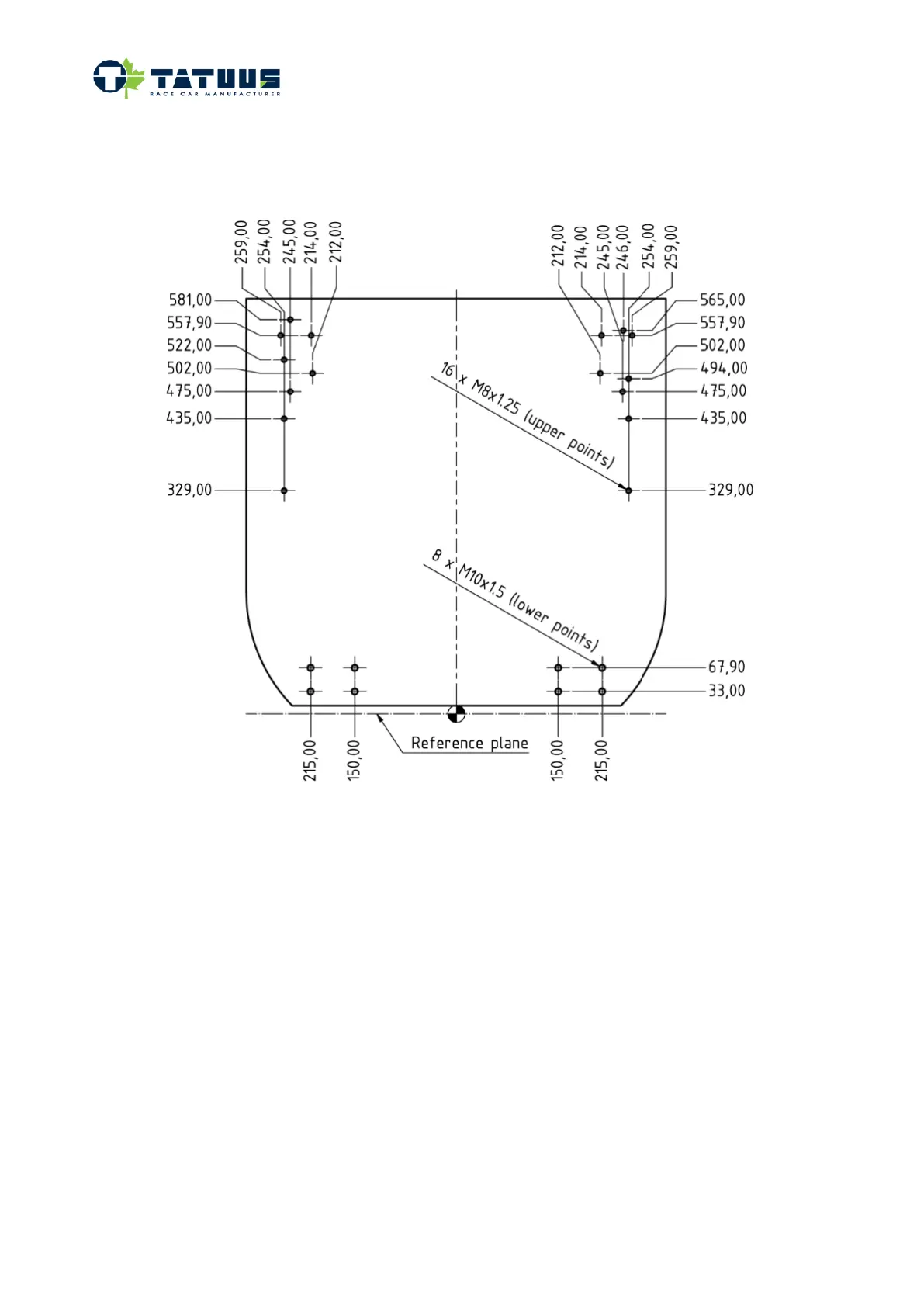

As per FIA F4 - 2nd Gen Technical Regulations the Power Unit-to-chassis mounting points are arranged in

accordance with the following Drawing:
