2.7 FRONT IMPACT STRUCTURE
The front impact is one of the major safety and structural component of the car and it has been approved by
the FIA. Great attention must be paid in checking for structural failure not later than two years after delivery
from Tatuus factory, and after each major accident. The structure must be checked and repaired by a center
authorized by Tatuus.

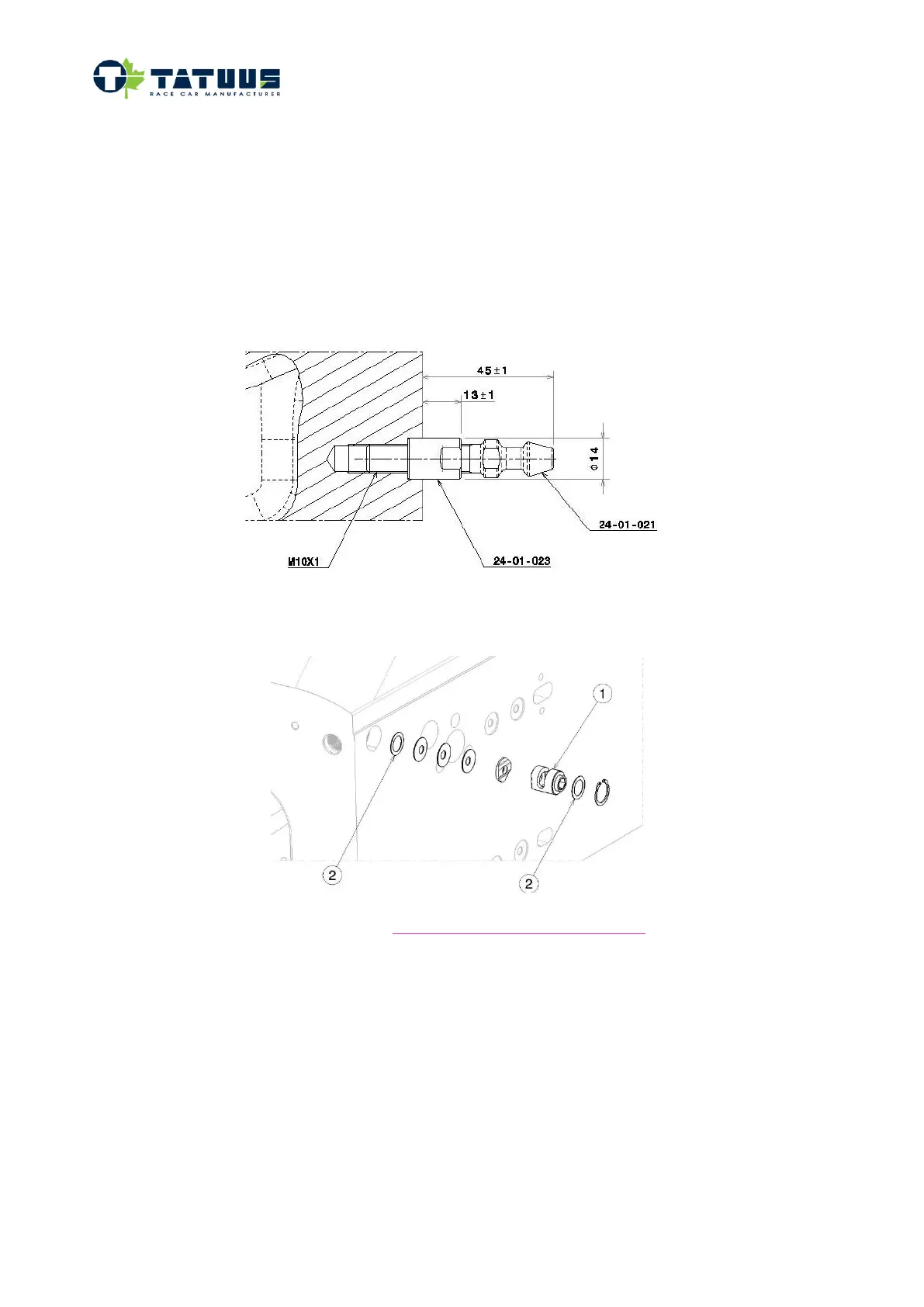

2.7.1 Retention system adjustment
The retaining pins of the front impact structure must be properly set to ensure the correct installation.
2.7.2 Quick release adjustment
The locking mechanism on the chassis side is shown in the picture below:
The stacking order of the Belleville washers must follow the order shown below
(chassis side | Belleville washers following “< > <” or “> < >” stack | barrel side):
