11.2.2 Main switch

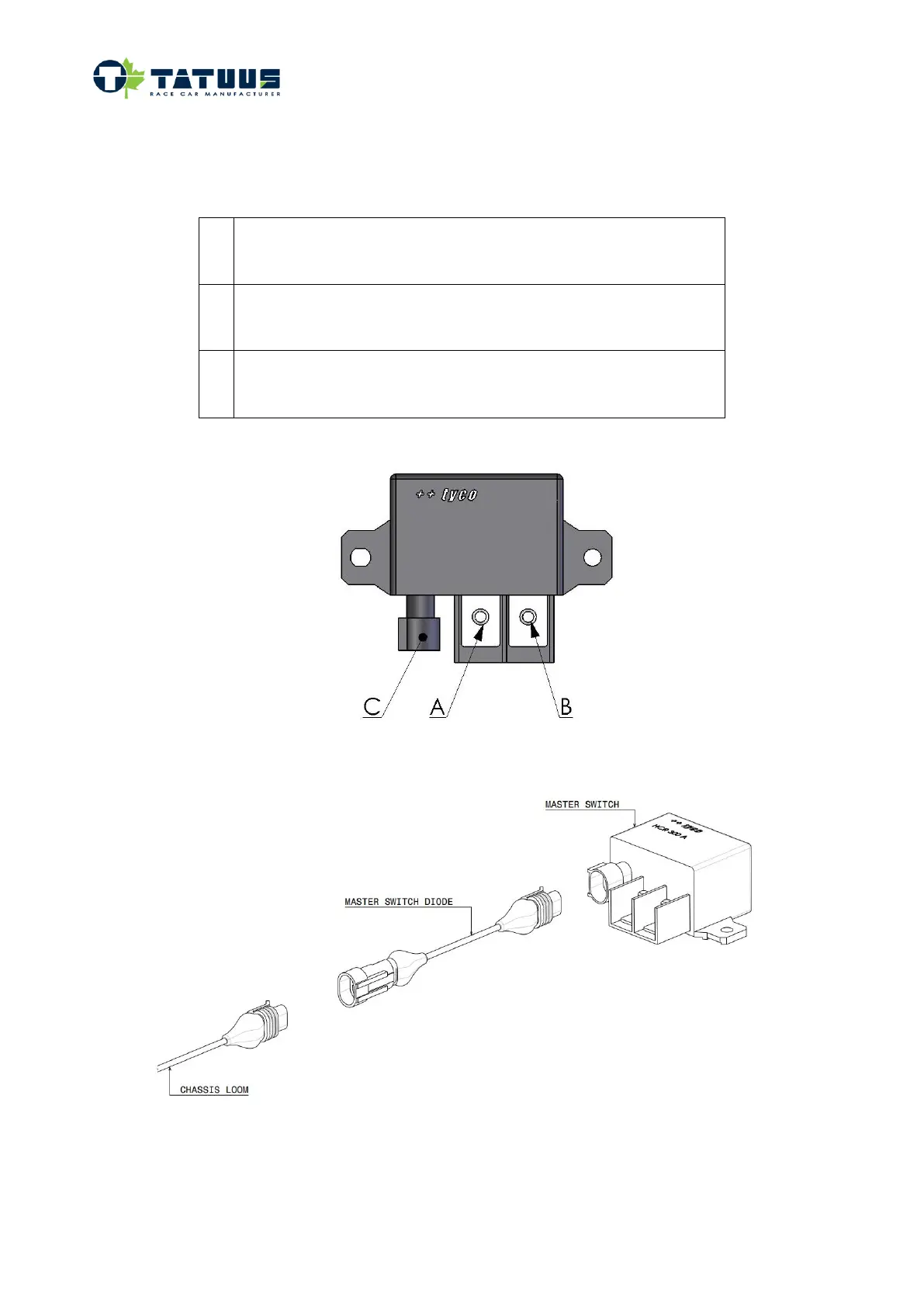

The master switch is actuated by the cockpit panel and emergency switches, connection schematics:
A
• +12V Generator (loom 33-25-040)
• +12V Chassis loom ring (“Main Switch” on Chassis Loom)
B
• +12V Battery (loom 21-16-18-019)
• Main switch coil supply (“TYCO Main Switch” on Chassis Loom)
C
• Chassis loom connector (“Solenoid” on Chassis Loom).
An additional master switch diode (cod.161518035) should be installed as shown below.
