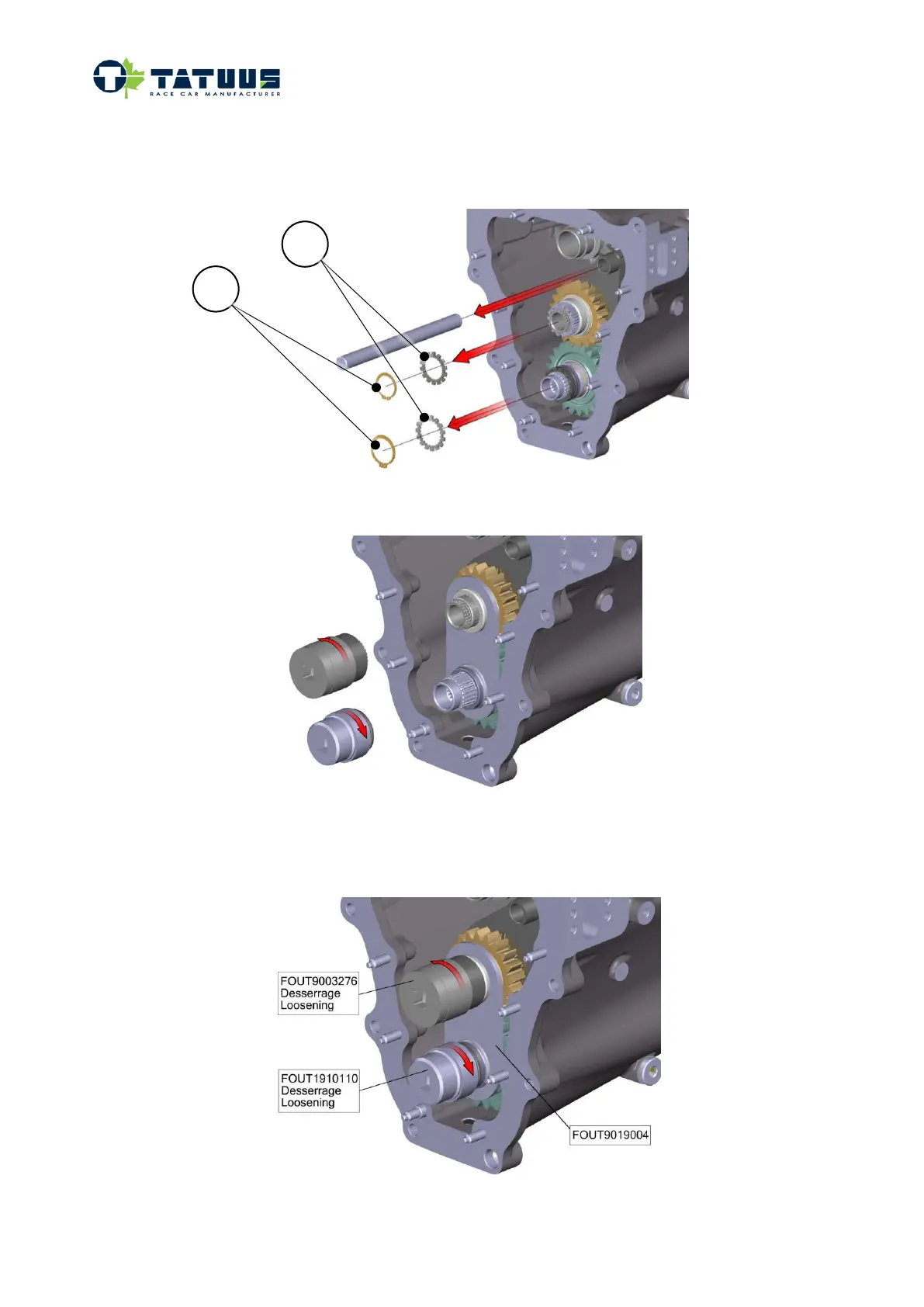

• Remove the circlips
○
2 and the nut stopping washers
○
3 from the primary and secondary shafts,
then engage two gears.
• Mount the anti-splay plate FOUT9019004 on the primary and secondary shafts.
• Loosen the 2 nuts:
use FOUT1910110 tool for the primary shaft
use FOUT9003276 tool for the secondary shaft.
2
3
