RELEASE 2.1.0
38

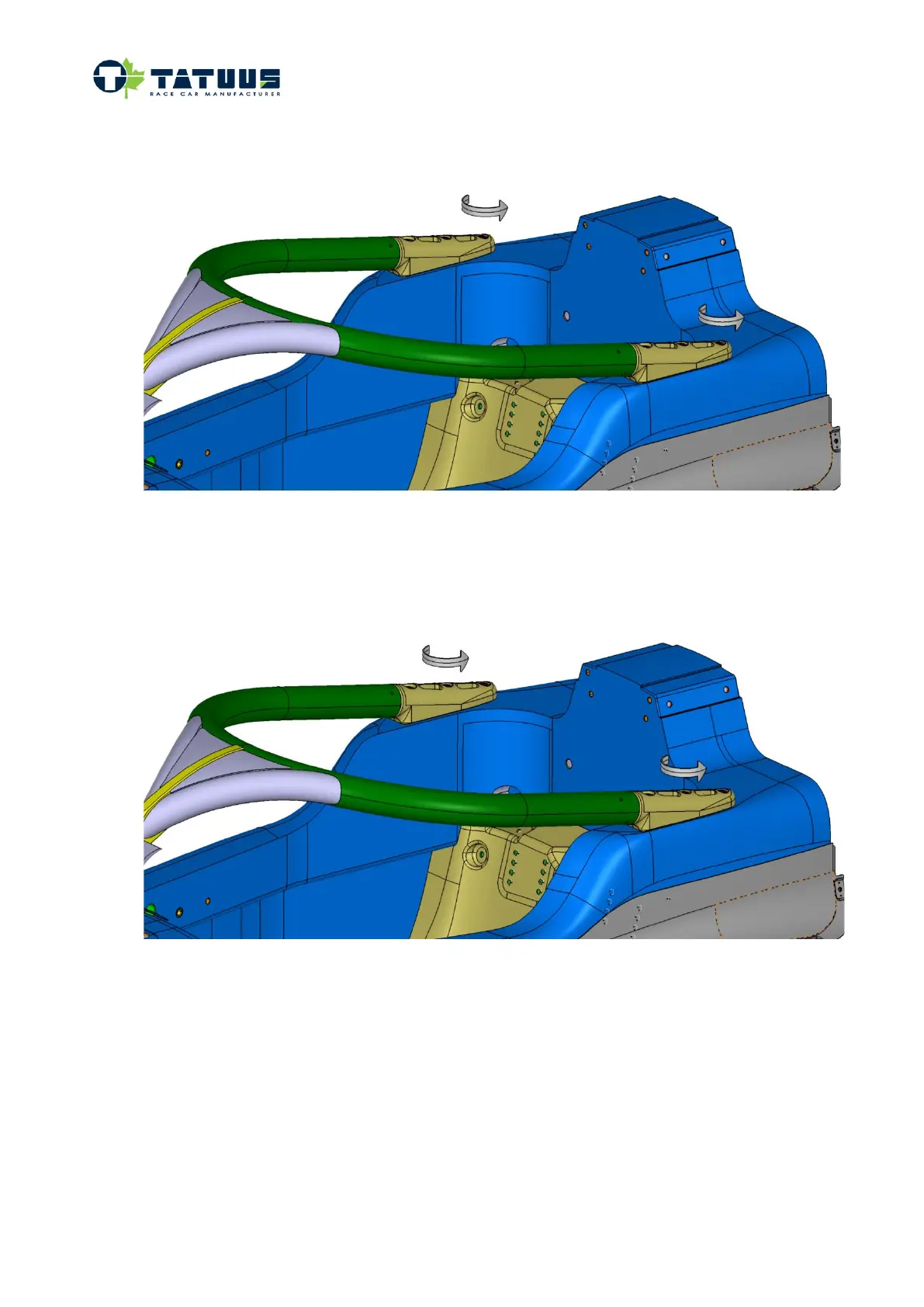

3. Unscrew and remove the M12X30 bolts. Do not unscrew one bolt first and then the other. Loose
the bolts gradually, keeping the balance on the two bolts.
4. Unscrew and remove the M12X55 bolts. Do not unscrew one bolt first and then the other. Loose
the bolts gradually, keeping the balance on the two bolts.
