RELEASE 2.1.0

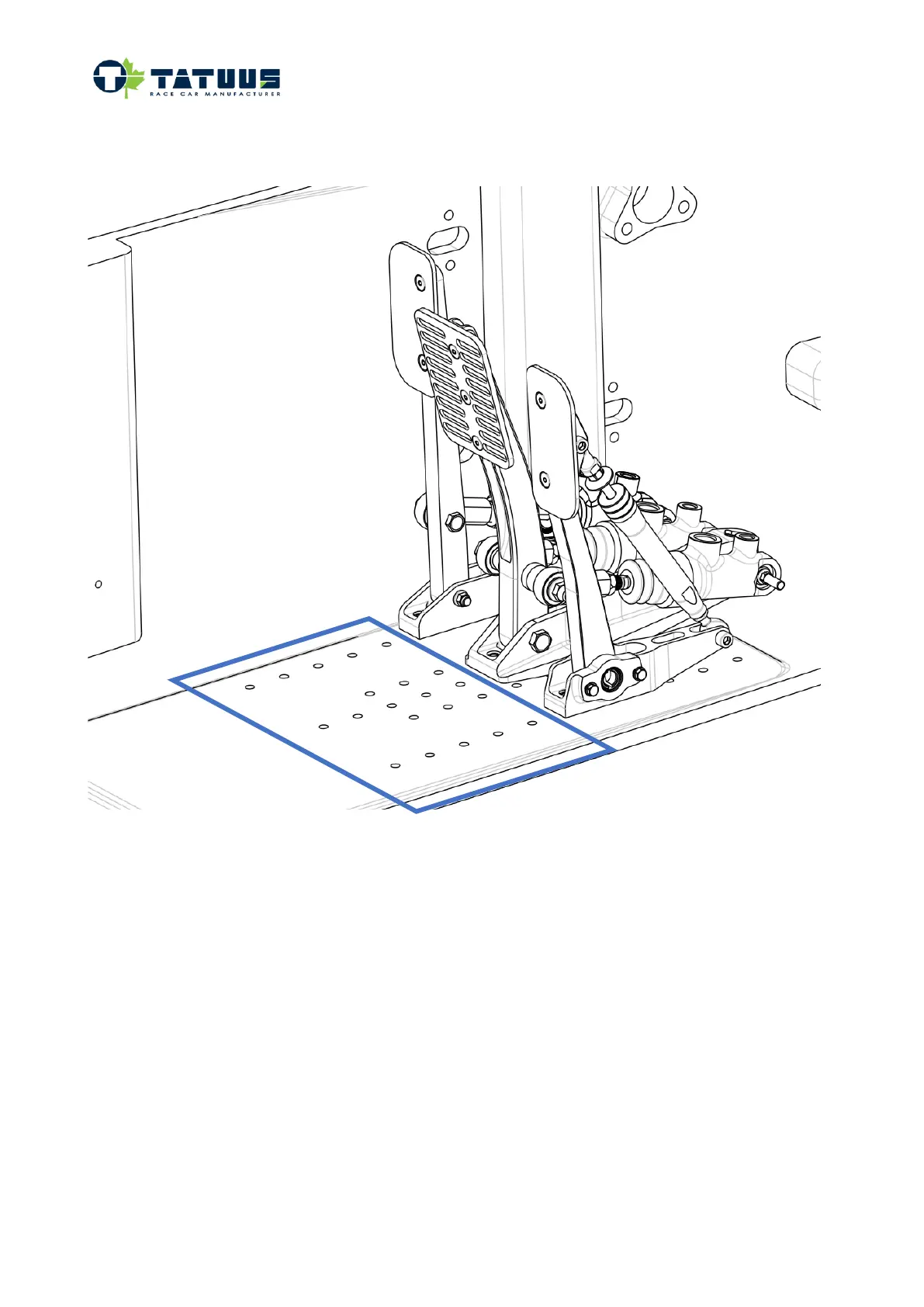

To assure pedals and heel rest stability it is recommended to bolt the heel rest on the unused holes placed

rearwards of the pedals. Please refer in the picture below to the blue highlighted area
