16 x Digital Outputs (next)
C ABLING
Description:
Cabling of outputs
Connector:
Screw connector
Pin Out:
1 V+
2 Output 0
3 Output 1
4 Output 2
5 Output 3
6 Output 4
7 Output 5
8 Output 6
9 Output 7
10 V-
1 V+
2 Output 8
3 Output 9
4 Output 10
5 Output 11
6 Output 12
7 Output 13
8 Output 14
9 Output 15
10 V-

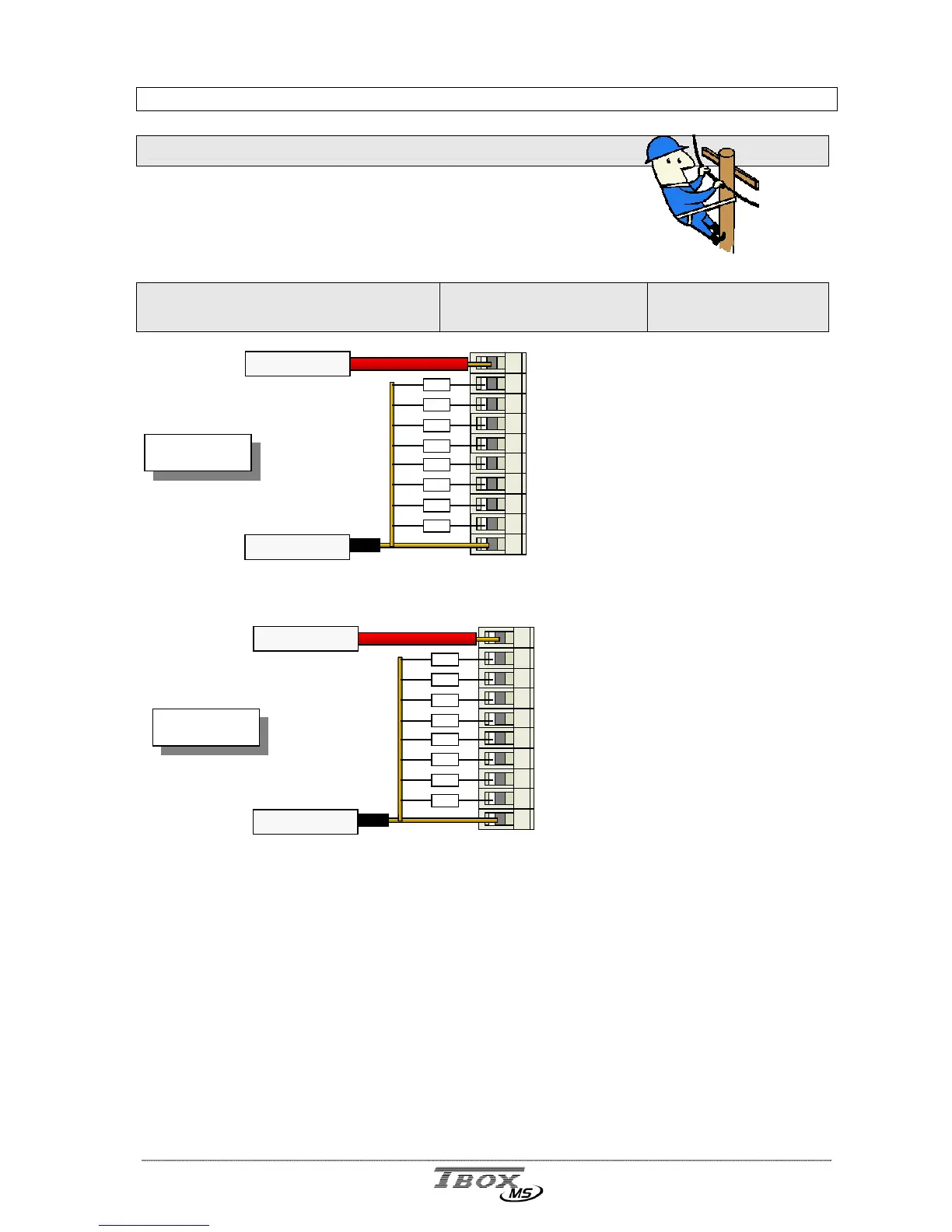

1 2 3
4 5
6 7 8
9 10
0
V
+6 .. 60 VDC
Group A
1 2 3
4 5
6 7 8
9 10
0
V
+6 .. 60 VDC
Group B
