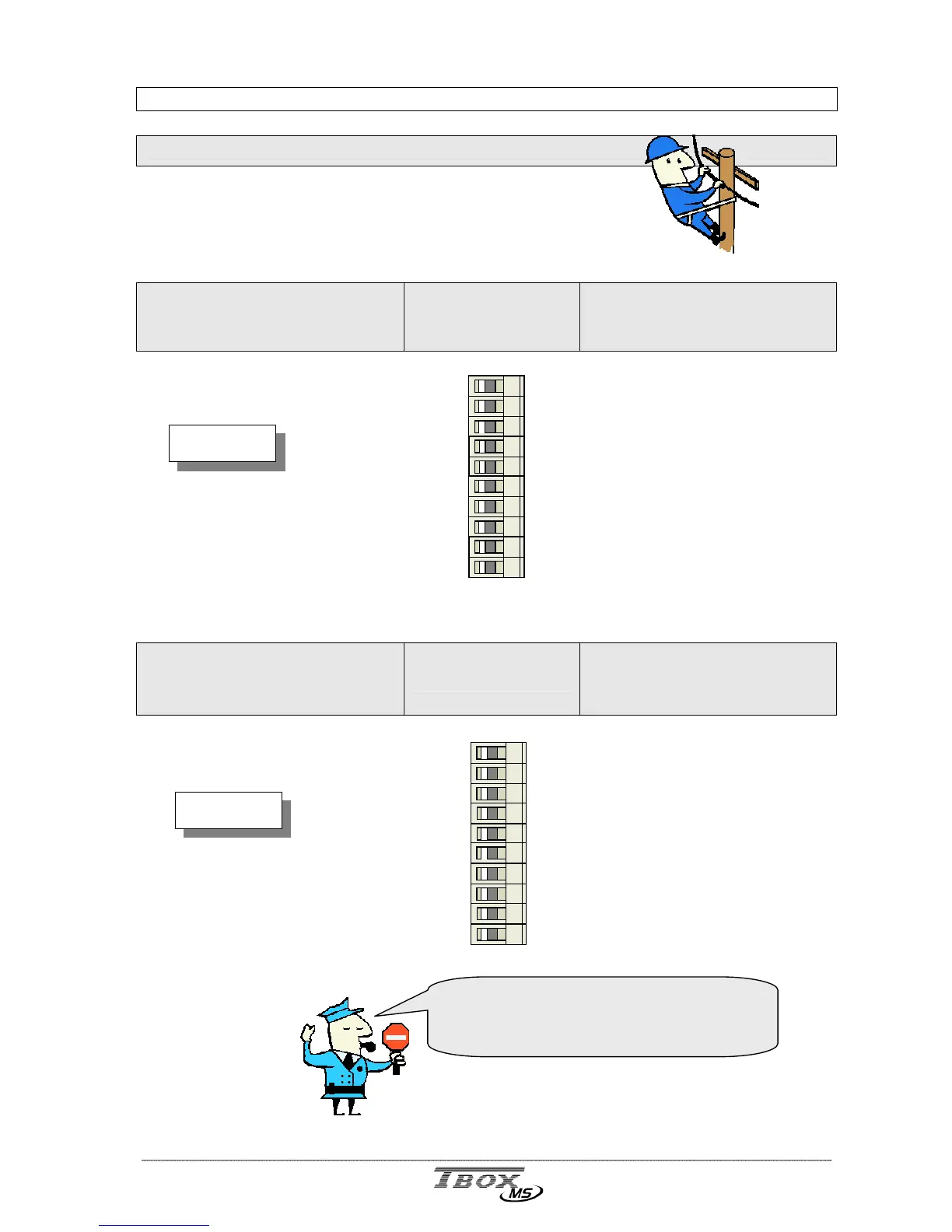

Version: 1.06 163
4 ANAOUT (next)
C
ABLING
– A
NALOG
O
UTPUTS
Description:
Cabling to 4..20ma OR
-10V..+10V actuators
Connector:
Screw connector
Pin Out:
1 No connection
2 Output 0 : 4..20mA (+)
3 Output 0 : 4..20mA (-)
4 Output 0 : -10V..+10V (+)
5 Output 0 : -10V..+10V (-)
6 Output 1 : 4..20mA (+)
7 Output 1 : 4..20mA (-)
8 Output 1 : -10V..+10V (+)
9 Output 1 : -10V..+10V (-)
10 No connection
Description:
Cabling to 4..20ma OR
-10V..+10V actuators
Connector:
Screw connector
Pin Out:
1 No connection
2 Output 2 : 4..20mA (+)
3 Output 2 : 4..20mA (-)
4 Output 2 : -10V..+10V (+)
5 Output 2 : -10V..+10V (-)
6 Output 3 : 4..20mA (+)
7 Output 3 : 4..20mA (-)
8 Output 3 : -10V..+10V (+)
9 Output 3 : -10V..+10V (-)
10 No connection
Each channel can be used with two different
signals: 4..20mA OR -10V..+10V; not with
both signals at the same channel.
1 2 3
4 5
6 7 8
9 10
Group A
1 2 3
4 5
6 7 8
9 10
Group B
To Next Page
