DUT-E installation / Installation into a special hole
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 27
* While installing fastening plate with threaded rivets, make d=7 mm holes for rivets.

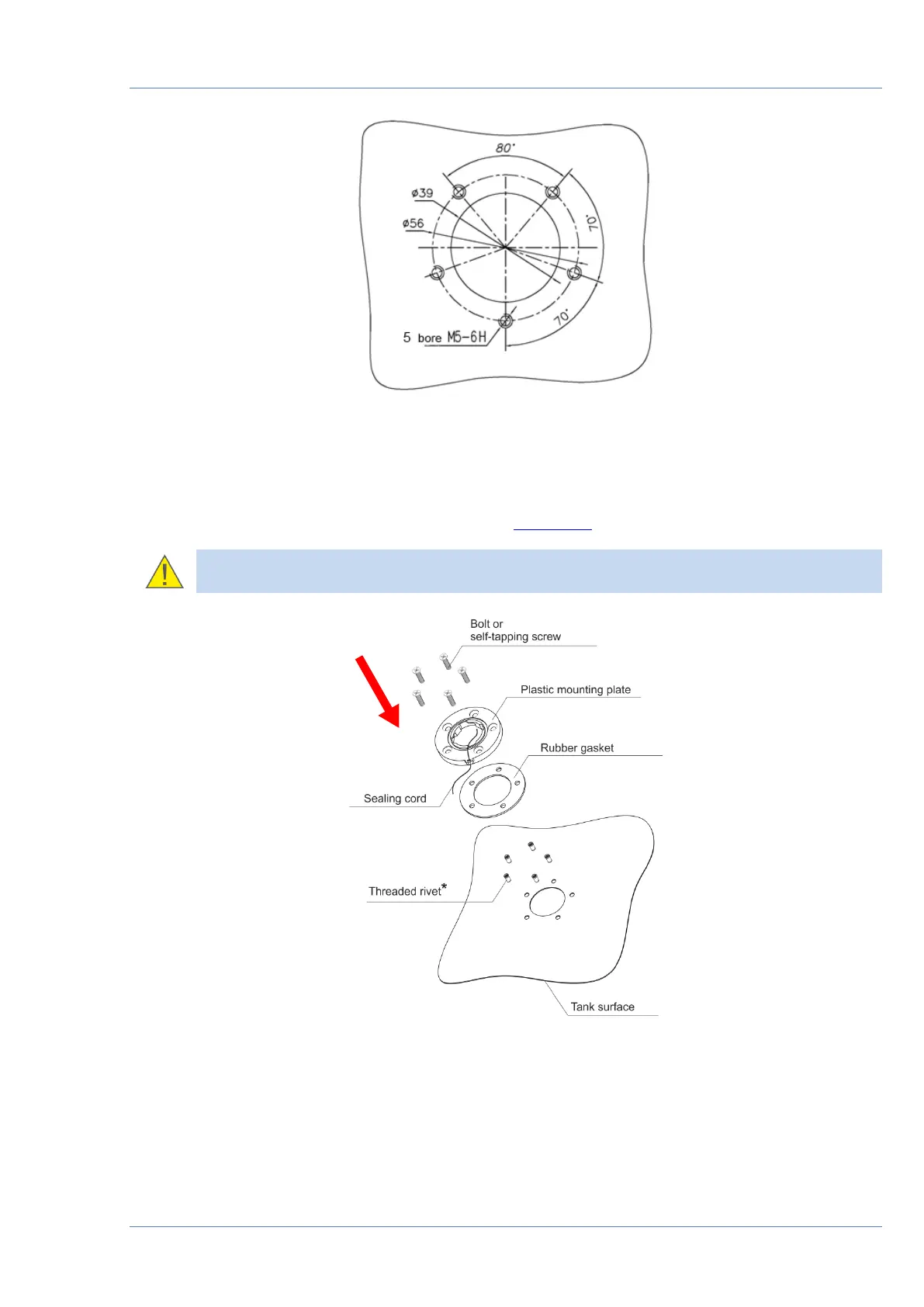

Figure 11 — Bores layout for DUT-E mounting plate fastening
3) Put rubber gasket and fastening plate over prepared holes, fix them with screws and
threaded rivets of with self-tapping screws from MK DUT-E mounting kit (see figure 12).
RECOMMENDATION: For a further easier sealing of DUT-E sensor pass the sealing
cord through the sealing hole of the plate prior to fastening the plate to the tank!
* Recommend for installation of sensor in fuel tank with thin walls (less than 2 mm).
Figure 12 — Mounting plate fastening
When using threaded rivets, they should be mounted using riveter and according to figure 13.
