DUT-E installation / Installation into a special hole
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 28

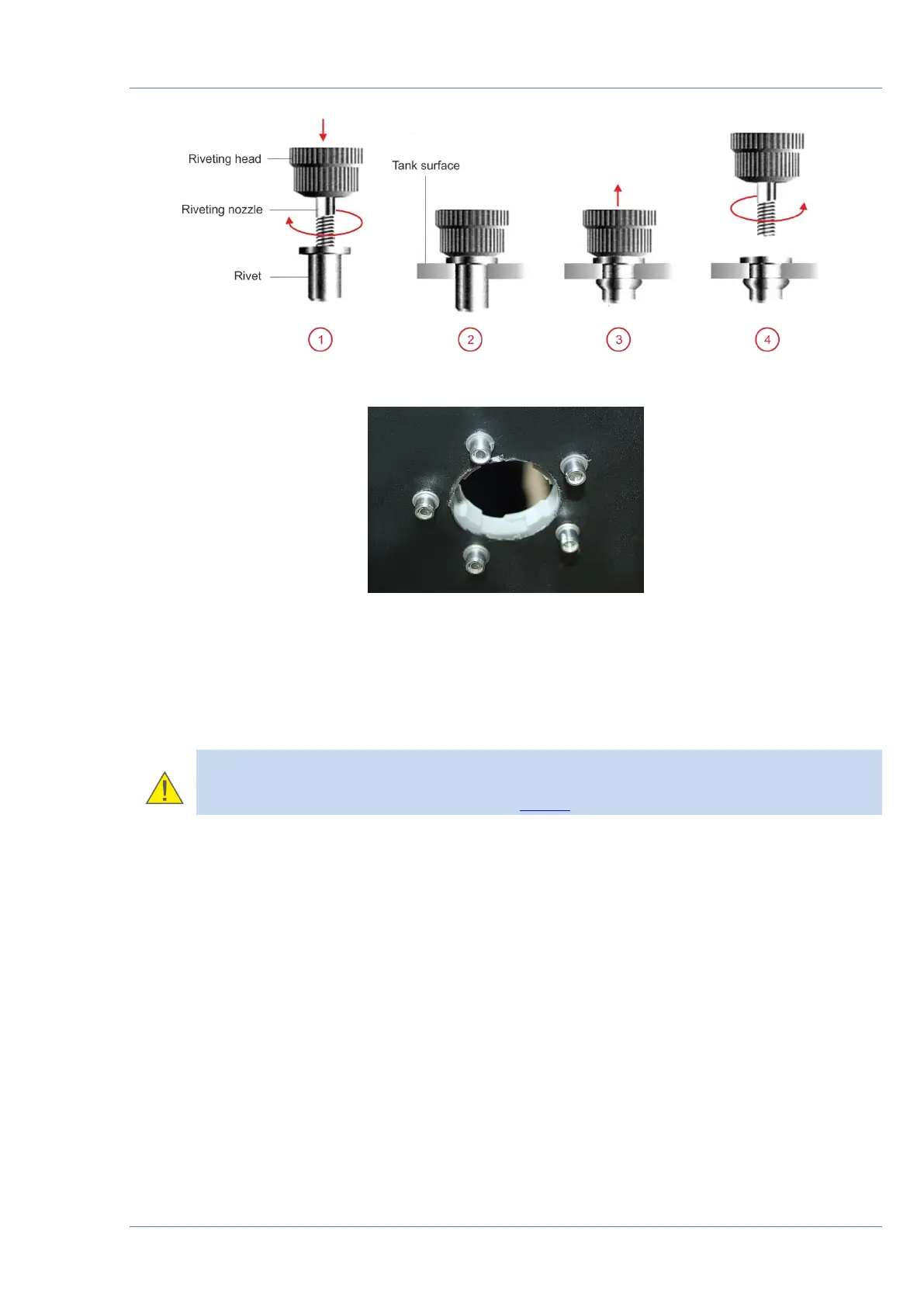

a) threaded rivets procedure of installation
b) installed fastening plate view of from inside of tank
Figure 13 –Threaded rivets usage for sensor installation
ATTENTION: When fixing the mounting plate to the tank, make sure that the bolt or
screw heads are not skewed and completely sunk in the plate in order to provide
electrical isolation between the tank and DUT-E.
