DUT-E installation / Monitoring of two and more tanks / DUT-E AF readings totalizing
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 42

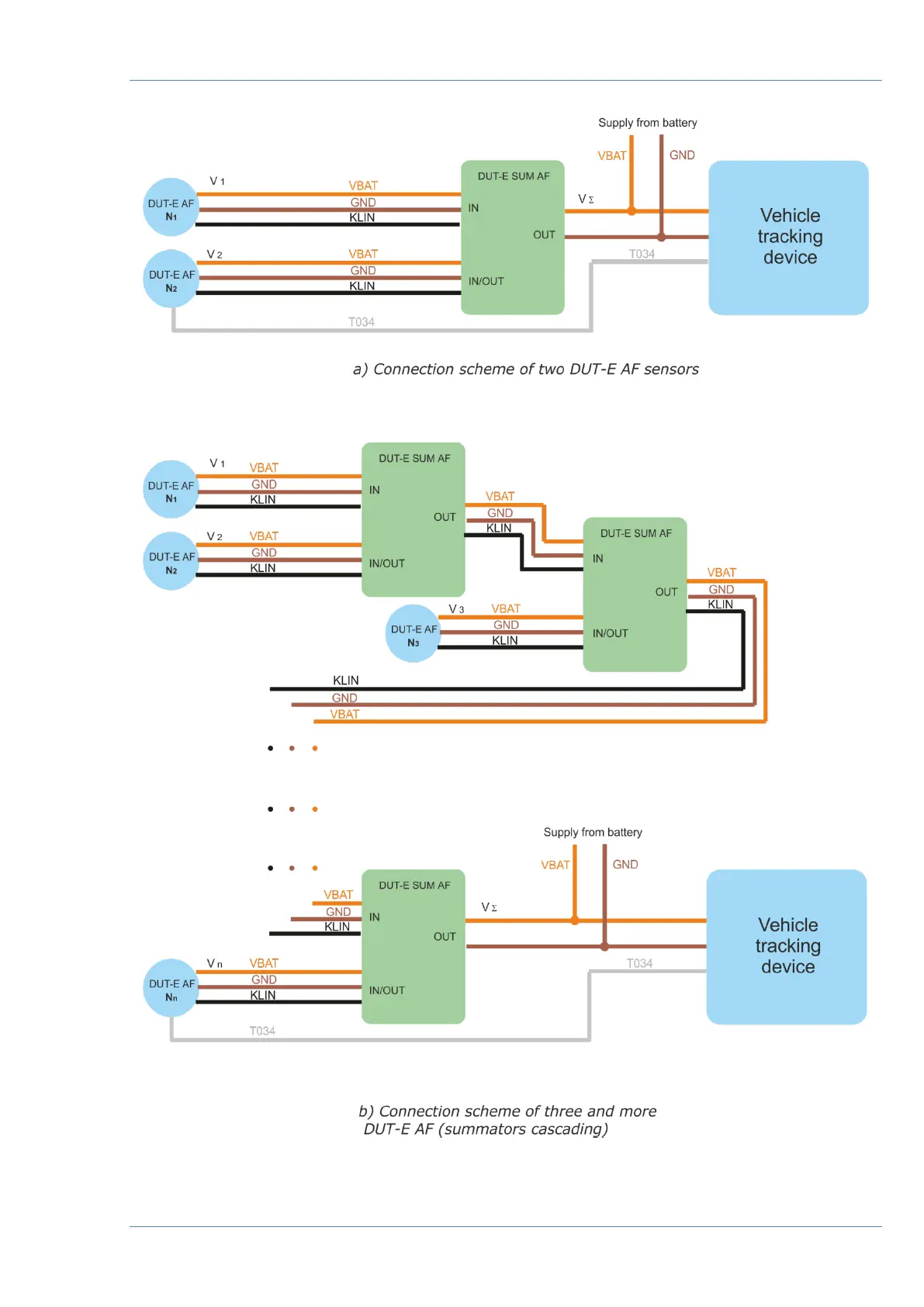

Figure 25 — DUT-E SUM AF connection schemes
