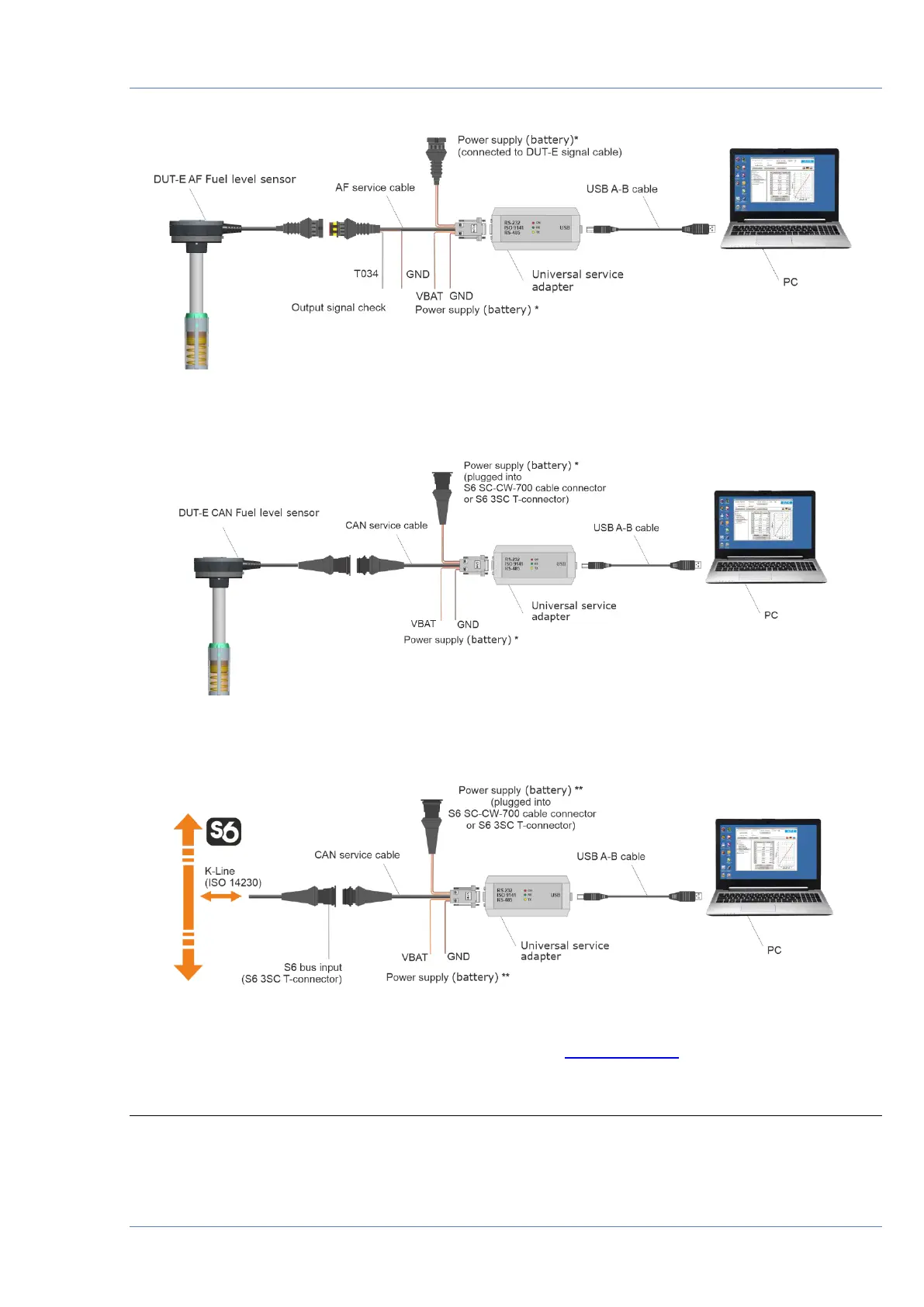

Configuration of sensor using service adapter / Service adapter connection / Connecting DUT-E to PC

DUT-E fuel level sensors. Operation manual. Version 8.1

a) DUT-E AF connection

b) DUT-E CAN connection

c) DUT-E CAN connection via S6 Technology

* For connecting power supply (battery) you can choose any of marked places.

** No need to connect. Power supply (battery) is carried out though S6 cabling system.
