Configuration of sensor using service adapter / Service adapter connection / Connecting DUT-E to PC
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 61
d) DUT-E 232 connection
e) DUT-E 485 connection

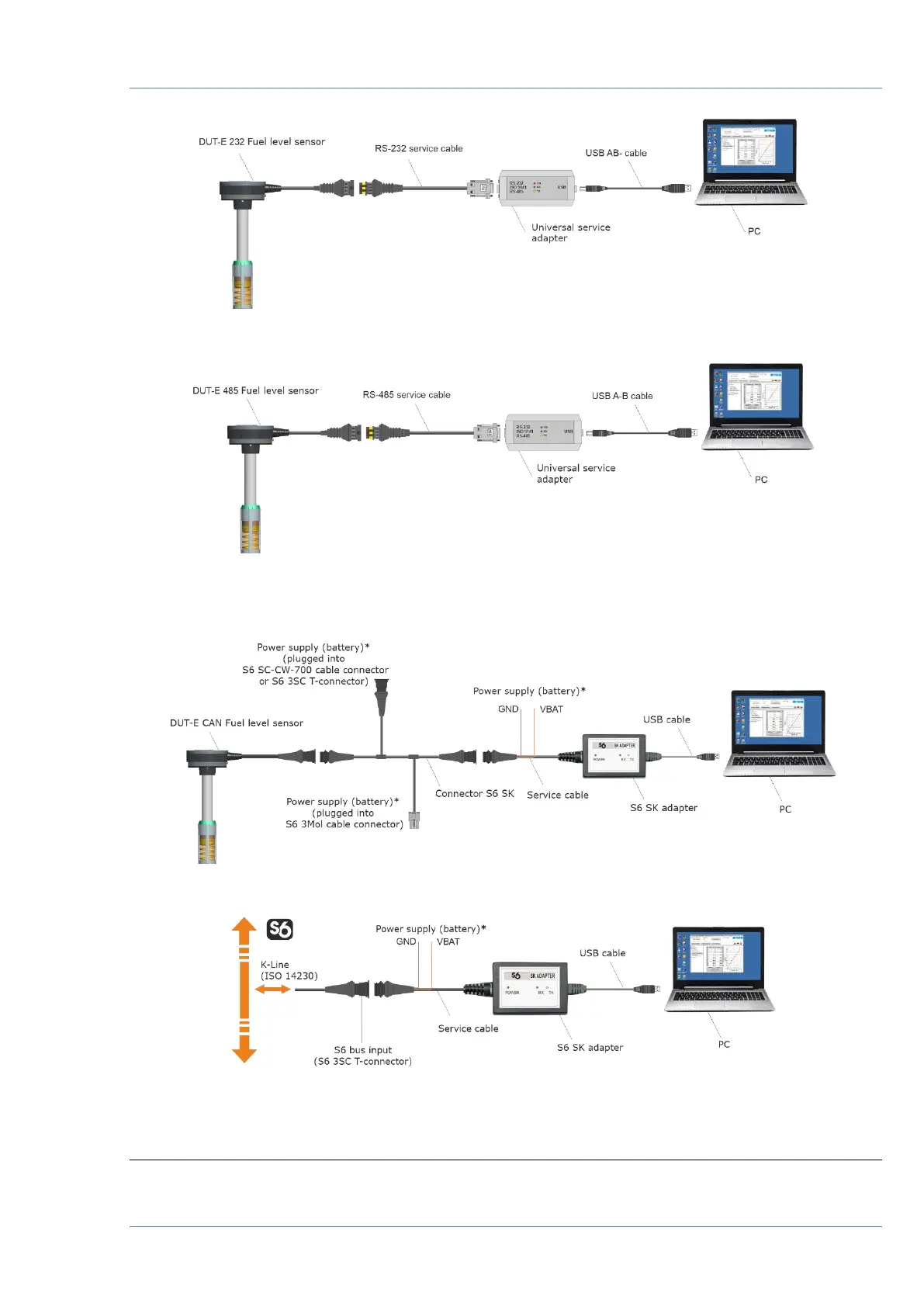

Figure 35 — DUT-E to PC connection schemes while using SK DFM
a) DUT-E CAN connection
b) DUT-E CAN connection via S6 Telematics Interface
Figure 36 — DUT-E to PC connection schemes while using S6 SK
* For connecting power supply (battery) you can choose any of marked places.
** No need to connect. Power supply (battery) is carried out though S6 cabling system.
