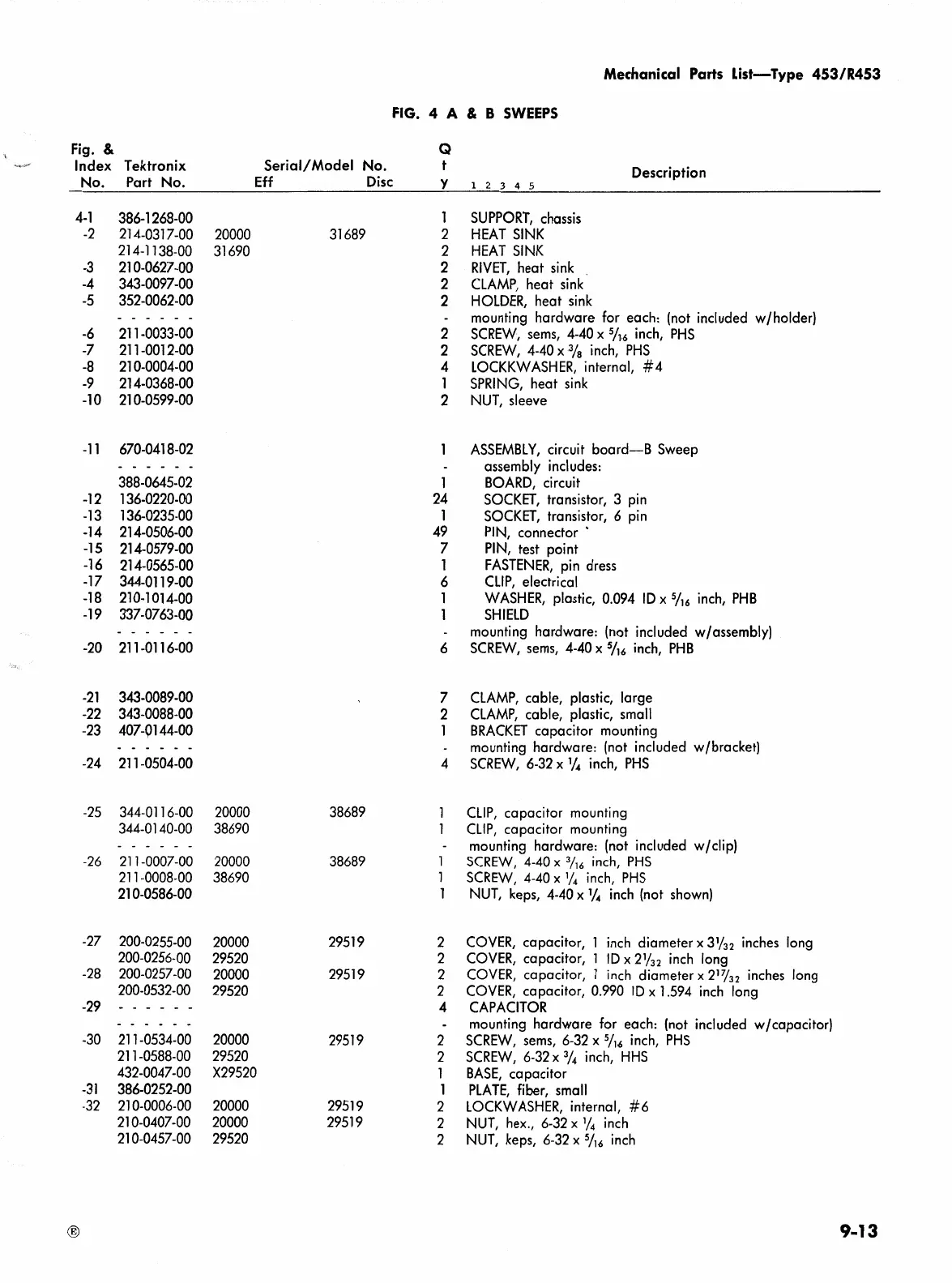

Mechanical Parts list-Type 453/R453
FIG. 4 A & B SWEEPS
Fig. &
Q
Index Tektronix
Serial/ Model
No.
t
Description
No. Part No. Eff Disc
y
l 2 3 4 5
4-1
386-1268-00
1
SUPPORT, chassis
-2 214-0317-00
20000 31689
2
HEAT SINK
214-1138-00 31690 2
HEAT SINK
-3
210-0627-00 2
RIVET, heat sink
-4 343-0097-00 2
CLAMP, heat sink
-5 352-0062-00
2 HOLDER, heat sink
------ mounting hardware for each: (not included w/holder}
-6 211-0033-00 2
SCREW, sems, 4-40 x %
6
inch, PHS
-7 211-0012-00 2
SCREW, 4-40 x % inch, PHS
-8
210-0004-00 4
LOCKKWASHER, internal, #4
-9 214-0368-00
1
SPRING, heat sink
-10
210-0599-00 2 NUT, sleeve
-11
670-0418-02 ASSEMBLY, circuit board-B Sweep
------
assembly includes:
388-0645-02
1
BOARD, circuit
-12
136-0220-00 24 SOCKET, transistor, 3 pin
-13
136-0235-00 1
SOCKET, transistor, 6 pin
-14 214-0506-00 49
PIN, connector
-15
214-0579-00 7
PIN, test point
-16
214-0565-00 1
FASTENER, pin dress
-17 344-0119-00
6
CLIP, electrical
-18 210-1014-00 1 WASHER, plastic, 0.094 ID x
5
/
16
inch, PHB
-19
337-0763-00 1 SHIELD
------
mounting hardware: (not included w/assembly)
-20
211-0116-00 6 SCREW, sems, 4-40 x
5
/u, inch, PHB
-21
343-0089-00 7
CLAMP, cable, plastic, large
-22
343-0088-00 2 CLAMP, cable, plastic, small
-23
407-Ql 44-00
1 BRACKET capacitor mounting
------
mounting hardware: (not included w/bracket)
-24
211-0504-00
4
SCREW, 6-32 x % inch, PHS
-25
344-0 l l 6-00 20000
38689
CLIP, capacitor mounting
344-0 l 40-00
38690 CLIP, capacitor mounting
------ mounting hardware: (not included w/clip}
-26
211-0007-00
20000
38689
1 SCREW, 4-40 x
3
/
16
inch, PHS
21 l -0008-00
38690 l
SCREW, 4-40 x
1
/
4
inch, PHS
210-0586-00 1
NUT, keps, 4-40 x % inch (not shown)
-27
200-0255-00 20000
29519 2
COVER, capacitor, l inch diameter x 3
1
/
32
inches long
200-0256-00
29520
2 COVER, capacitor, l ID x 2
1
/
32
inch long
-28
200-0257-00 20000 29519
2
COVER, capacitor, l inch diameter x 2
17
/
32
inches long
200-0532-00 29520
2
COVER, capacitor, 0.990 ID x l .594 inch long
-29
------
4
CAPACITOR
------
mounting hardware for each: (not included w/capacitor)
-30 211-0534-00
20000 29519 2
SCREW, sems, 6-32 x
5
/u, inch, PHS
211-0588-00 29520
2
SCREW, 6-32 x % inch, HHS
432-0047-00 X29520
l
BASE, capacitor
-31 386-0252-00 1
PLATE, fiber, small
-32 210-0006-00
20000 29519
2 LOCKWASHER, internal, #6
210-0407-00
20000 29519
2
NUT, hex., 6-32 x
1
/
4
inch
21 0-0457-00
29520
2
NUT, keps, 6-32 x
5
/
16
inch
® 9-13
