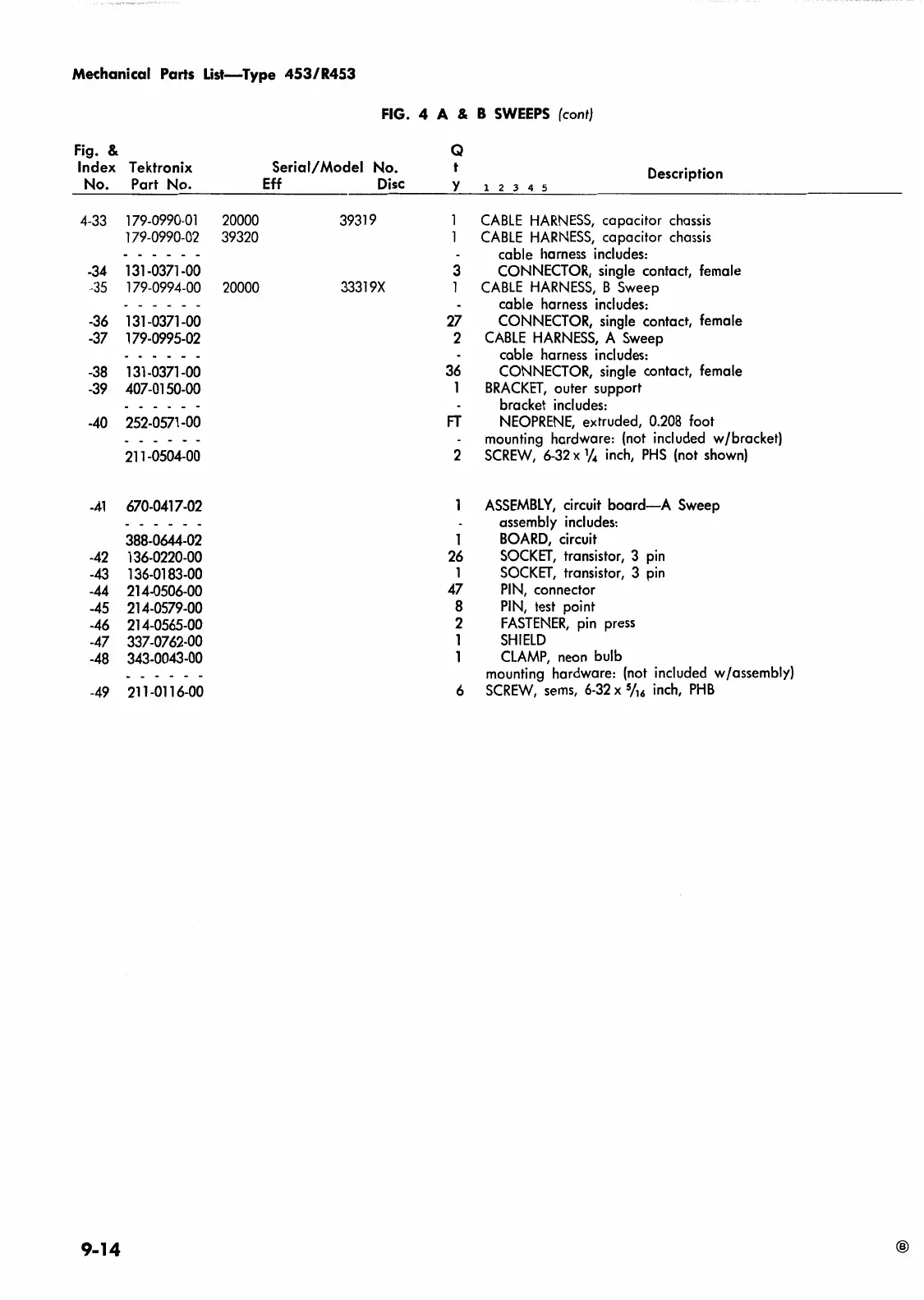

Mechanical Parts List-Type 453/1453
FIG. 4 A & B SWEEPS (cont}
Fig. &
Q
Index
Tektronix
Serial/ Model No.
t
Description
No.
Part No.
Eff
Disc
y
1 2 3 4 5
4-33 179-0990-01 20000
39319 CABLE HARNESS, capacitor chassis
179-0990-02
39320 CABLE HARNESS, capacitor chassis
------
cable harness includes:
-34
131-0371-00
3
CONNECTOR, single contact, female
-35
179-0994-00 20000
33319X
1 CABLE HARNESS, B Sweep
------
cable harness includes:
-36
131-0371-00
27 CONNECTOR, single contact, female
-37
179-0995-02
2 CABLE HARNESS, A Sweep
------
cable harness includes:
-38
131-0371-00
36
CONNECTOR, single contact, female
-39
407-0150-00
1 BRACKET, outer support
------
bracket includes:
-40
252-0571-00
FT
NEOPRENE, extruded, 0.208 foot
------
mounting hardware: (not included w/bracket)
211-0504-00
2
SCREW, 6-32 x
1
/
4
inch, PHS (not shown)
-41
670-0417-02
ASSEMBLY, circuit board-A Sweep
------
assembly includes:
388-0644-02
1
BOARD, circuit
-42
136-0220-00
26
SOCKET, transistor, 3 pin
-43
136-0183-00
1
SOCKET, transistor, 3 pin
-44
214-0506-00
47
PIN, connector
-45
214-0579-00
8
PIN, test point
-46
214-0565-00
2
FASTENER, pin press
-47
337-0762-00
1
SHIELD
-48
343-0043-00
1
CLAMP, neon bulb
------
mounting hardware: (not included w/assembly)
-49 211-0116-00
6
SCREW, sems, 6-32 x
5
/
16
inch, PHB
9-14
®
